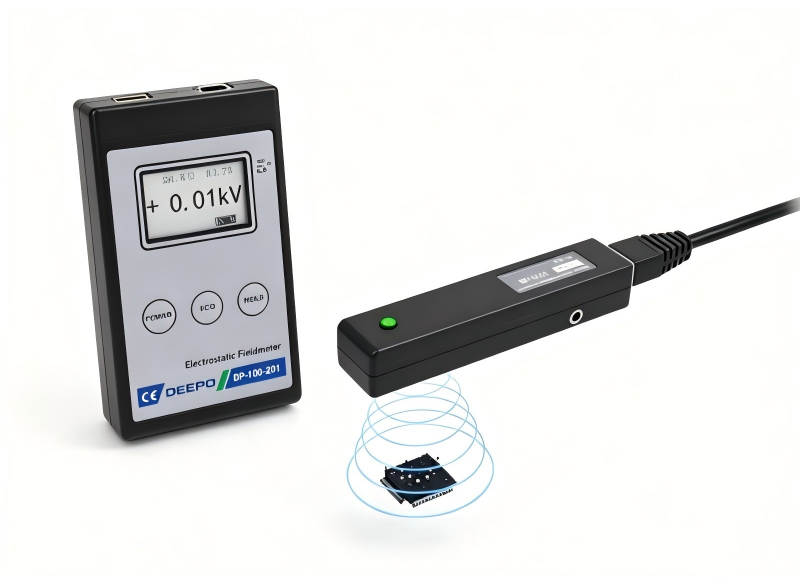

QP-C01 vs. QP-ESD201: Choosing the Right Static Measurement Device for Your Line

Static electricity is a hidden profit killer in modern manufacturing. Whether you run a high-speed packaging line, a plastic film extrusion facility, or an advanced semiconductor cleanroom, unmanaged electrostatic charges cause product defects, dust attraction, and costly equipment downtime.

To eliminate static effectively, you must first measure it accurately. Choosing the right static measurement device is the foundational step in any industrial static control strategy. However, different production environments require entirely different measurement approaches.

Today, we will analyze and compare two of QEEPO’s premier industrial instruments: the QP-C01 Series Electrostatic Sensor and the QP-ESD201 Handheld Electrostatic Fieldmeter. By understanding their unique engineering, technical parameters, and ideal applications, you can deploy the exact static electricity measurement device your facility needs to maintain operational excellence.

The Two Approaches to Industrial Static Detection

Before diving into the specifications, it is important to understand that these two devices represent two completely different operational philosophies for quality control and electrostatic discharge (ESD) management.

QP-C01 Series: Continuous, Automated Online Monitoring

The QP-C01 Series is an industrial-grade, fixed-mount static measurement device designed for integration directly into automated machinery. It features an ultra-compact form factor (95.5 x 20.7 x 18.5 mm) that allows it to fit into tight spaces inside machines without disrupting high-speed production components. The QP-C01 does not have an onboard screen; instead, it streams real-time voltage data back to automated control systems or central display terminals, acting as a permanent 24/7 monitor on your production line.

QP-ESD201: Flexible, Mobile Handheld Auditing

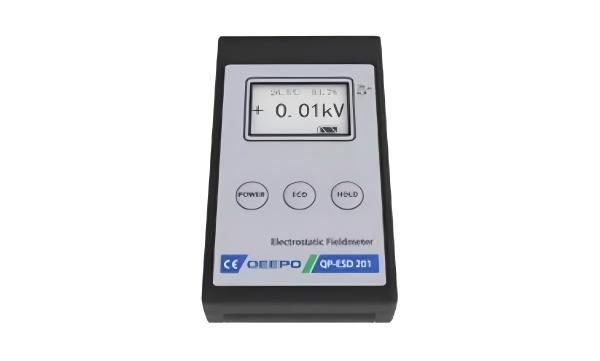

The QP-ESD201 is a self-contained, portable static electricity measurement device designed for engineers, quality control inspectors, and ESD auditors. Powered by a 9V alkaline battery, it features an integrated clear LCD screen that instantly displays surface voltage, ambient temperature, and relative humidity. It is engineered for mobility, allowing plant personnel to walk the factory floor and spot-check raw materials, finished goods, machinery surfaces, or human body electrification.

Technical Comparison Matrix

To help your engineering team make a fast, data-driven decision, here is a breakdown of how each static measurement device performs across key industrial metrics:

Deep-Dive Analysis: Key Differentiating Factors

Choosing the optimal static electricity measurement device requires matching device capabilities with your specific process challenges. Let us look closer at how these technical parameters impact actual factory operations.

1. Measurement Precision vs. Maximum Voltage Range

The QP-C01 Sensor prioritizes ultimate precision. When installed at a close range of 5mm from the target material, it achieves an incredible resolution of 1V. This makes it an invaluable tool for electronics and semiconductor assembly lines, where even a tiny 10V charge can instantly destroy microchips or sensitive sensor components.

Conversely, the QP-ESD201 Fieldmeter trading close-range micro-precision for massive range capacity. It can measure up to +/- 60KV (60,000 Volts). In industries like plastic film processing, printing, and textiles, friction frequently generates massive static charges exceeding 30KV. The QP-ESD201 ensures your auditors can measure these high-voltage fields safely from a distance.

2. Integration with Automated Lines and Smart Controllers

The QP-C01 excels in automated smart factories. Because it features standard RS-485 and CAN communication protocols, it can be networked alongside multiple units directly into a central PC, server, or the QEEPO QP-SEN25H Smart Display Controller. This allows factories to monitor static levels across dozens of machine stations simultaneously on a central dashboard, creating automated logs and status reports.

The QP-ESD201 operates primarily as an independent device, though it does feature CAN/RS-485 communication options for data offloading. It includes a practical HOLD key that freezes the current reading on the LCD screen, allowing operators to capture measurements in awkward or hard-to-reach machine configurations.

3. Response Speeds and Target Material Velocity

If your production line handles fast-moving materials—such as high-speed web printing presses or rapid packaging lines—the velocity of the moving material changes the static field dynamically. The QP-C01 features a blistering data response speed of under 50 milliseconds (< 50ms). It captures instantaneous static spikes on rapid materials flawlessly. The QP-ESD201, while fast at under 100ms, is better tailored for static profiling on stationary objects or slower process loops.

4. Calibration and Human Error Prevention

Maintaining exact measurement distances is critical; incorrect positioning will skew voltage data on any static measurement device. QEEPO engineers solved this problem uniquely for both tools:

• The QP-C01 relies on rigid mechanical mounting. Once fixed at 25mm or 50mm, distance variations are completely eliminated, providing rock-solid data consistency.

• The QP-ESD201 protects handheld operators from distance errors using an elegant Dual Infrared Light Focusing System. The operator simply moves the meter closer or further from the target object until the two distinct red pointer dots merge into a single focus point on the object surface, guaranteeing the perfect, calibrated distance every single time.

Industry Applications: Which One Fits Your Business?

Different manufacturing environments face unique electrostatic challenges, making the choice of your static measurement device highly dependent on your specific production setup. To see where these devices excel in action, explore their typical industry deployments below.

When to Deploy the QP-C01 Online Sensor Lineup:

• Semiconductor Front-End (EFEM Pods): Continuous monitoring inside wafer-handling equipment where static thresholds must never cross critical limits.

• High-Speed Printing & Coating: Mounting the sensor directly over moving web materials to log static build-up instantly.

• Lithium Battery Manufacturing: Monitoring electrode coating and slitting zones where automated adjustments are necessary.

When to Deploy the QP-ESD201 Handheld Fieldmeter:

• Plant-Wide ESD Auditing: Ideal for quality assurance managers executing weekly compliance audits under ANSI/ESD S20.20 cleanroom protocols.

• Packaging and Logistics Lines: Instantly diagnosing whether cardboard friction or plastic wrapping is causing material blockages and jams.

• Plastic & Film Extrusion: Checking roll winding static levels safely up to 60KV.

Conclusion

Both the QP-C01 Online Electrostatic Sensor and the QP-ESD201 Handheld Fieldmeter are highly capable instruments, but they serve distinct operational strategies. If your goal is to build a smart, data-driven, automated production environment that requires real-time data tracking and instantaneous alarms, the QP-C01 Series is your ideal online static measurement device. If you require a flexible, high-voltage diagnostic tool to spot-check materials, handle field troubleshooting, and execute regulatory compliance checks, the QP-ESD201 is the perfect portable static electricity measurement device to equip your engineering team.

At qeepo, we manufacture complete, closed-loop industrial static control architectures. By accurately pairing our advanced monitoring devices with our high-performance ionizing bars and fans, we help global manufacturing lines optimize yield, prevent downtime, and boost profitability.

If you need expert guidance selecting the perfect instrument network or designing a custom static elimination blueprint for your facility, please visit our Technical Support & Contact Page to consult directly with our application engineers today.

Frequently Asked Questions (FAQ)

1. Can the QP-C01 sensor communicate directly with my factory PLC?

Yes. The QP-C01 Series comes equipped with industry-standard RS-485 and CAN communication capabilities. It streams real-time potential data directly to programmable logic controllers (PLCs), computers, or factory central servers for integrated automation controls.

2. How do the dual infrared lights on the QP-ESD201 prevent reading mistakes?

Static field strength measurement relies heavily on precise distance. The QP-ESD201 features integrated dual red laser pointers. When the two points intersect perfectly into a single dot on the tested object's surface, it indicates that the meter is held at the correct calibrated measurement distance, removing human positioning error.

3. Does the QP-ESD201 measure cleanroom environmental factors?

Yes. Alongside electrostatic voltage tracking up to +/- 60KV, the QP-ESD201 Handheld Fieldmeter features integrated climate sensors that display ambient temperature and relative humidity simultaneously on its LCD layout, which is highly useful for official ESD compliance reports.

4. Can the QP-C01 sensor automatically trigger a static elimination bar?

Yes. When integrated into QEEPO's smart control ecosystem (such as the UPM Smart Controller network), data from the QP-C01 static electricity measurement device can be utilized to adjust the ion output or trigger alarms on paired intelligent static eliminators, creating a completely automated closed-loop system.
