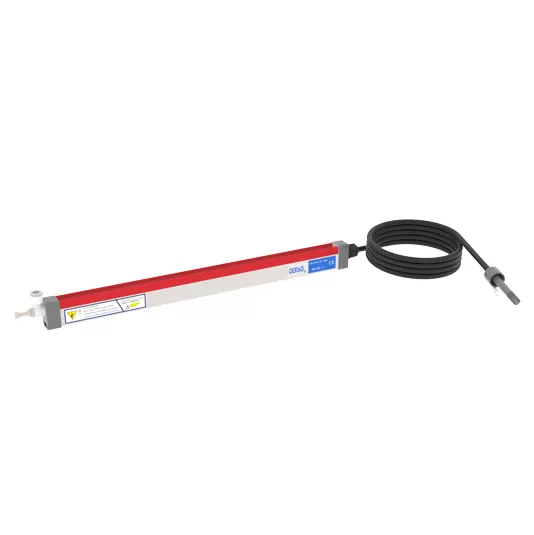

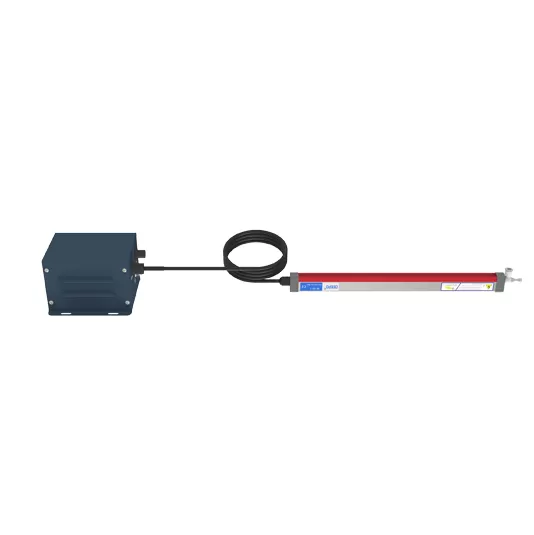

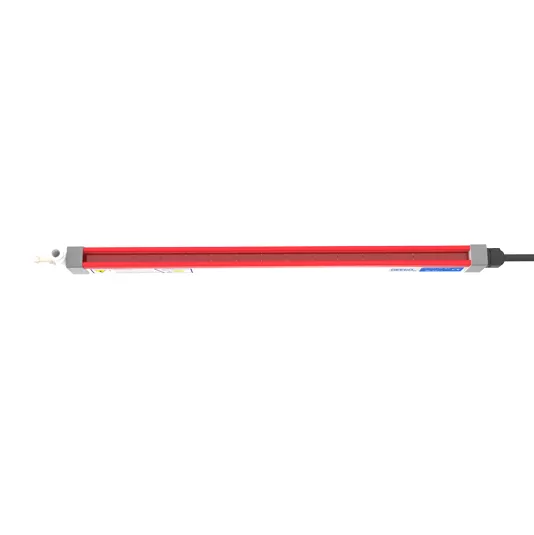

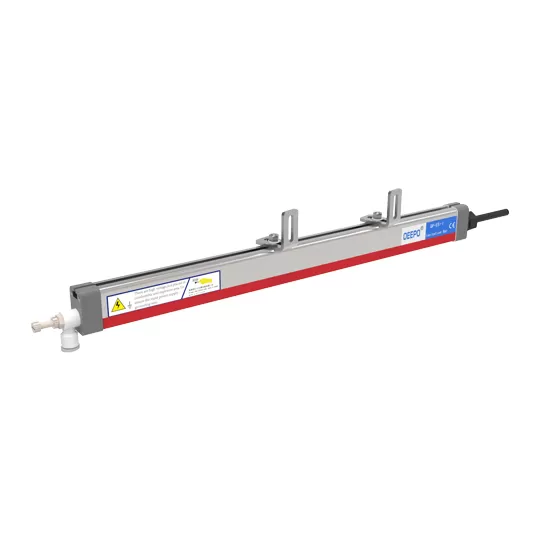

QP-ES-I Safe Air Source Electrostatic Eliminator

Name: QP-ES-I Safe Air Source Electrostatic Eliminator
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

QP-ES-I is a QEEPO air source static eliminator that is equipped with a high-voltage power supply for use. It can be used with compressed air to remove static electricity, has a double row air hole design, an anti-electric shock design, and a long distance for static electricity removal. It is suitable for industrial environments to remove static electricity. As one of the most innovative static eliminator manufacturers, Qeepo incorporates this unique double-row air hole design to maximize ion coverage and neutralizing efficiency.

Get a Quote PDF Download

PDF Download

Specification

Performance Advantages of QP-ES-I Static Eliminator

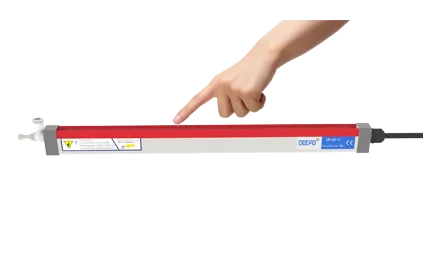

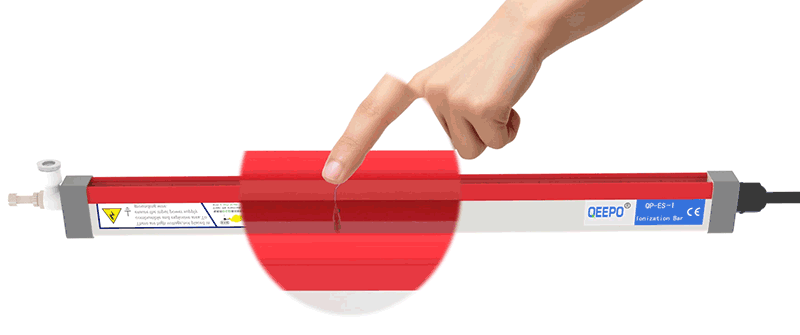

Anti Electric Shock Design

Internal coupling current limiting structure design, anti electric shock design,

will not cause discomfort to operators.

QP-ES-I-static-eliminator Anti electric shock.gif

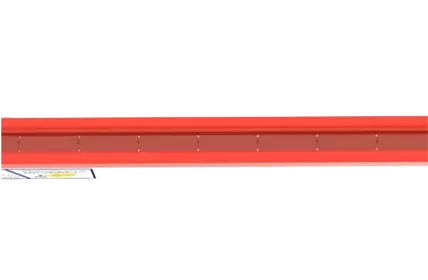

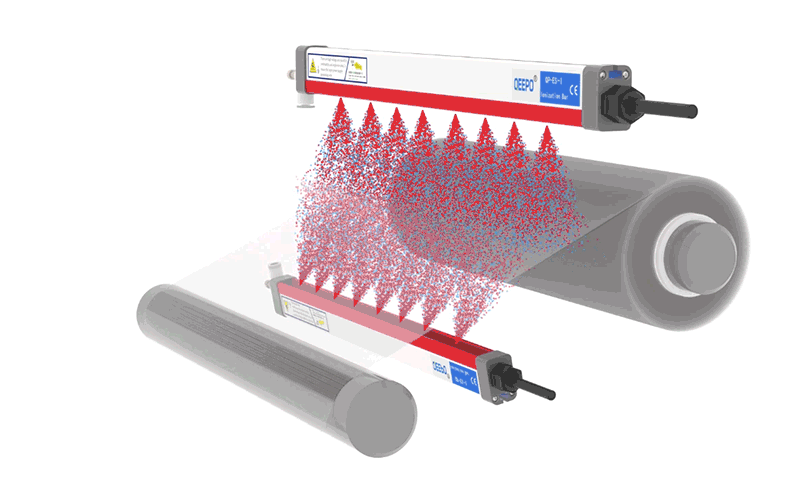

Long Distance Electrostatic Discharge

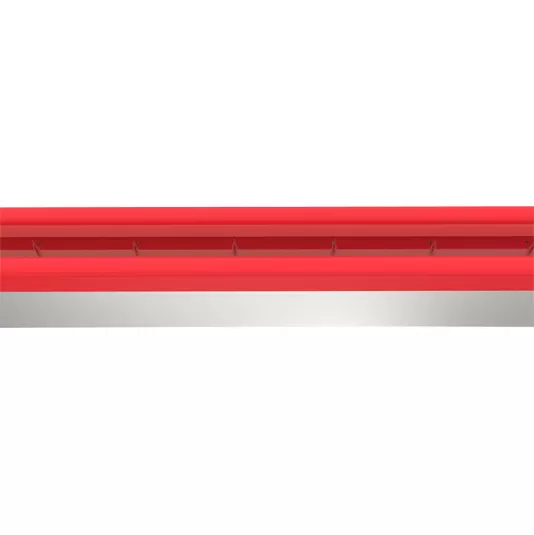

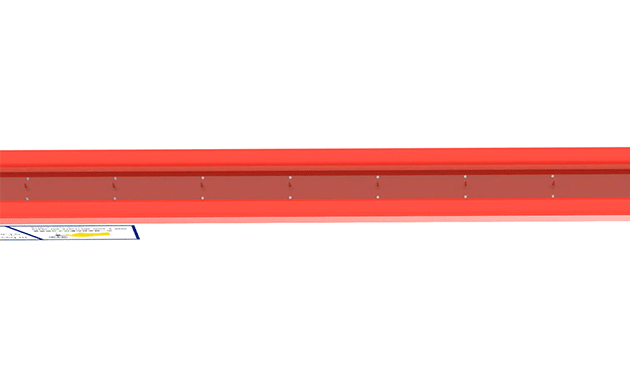

Double row air hole design,

with a long distance for electrostatic discharge and a working distance of up to 450mm,

while also having dust removal effect.

QP-ES-I-static-eliminator air anti static bar.gif

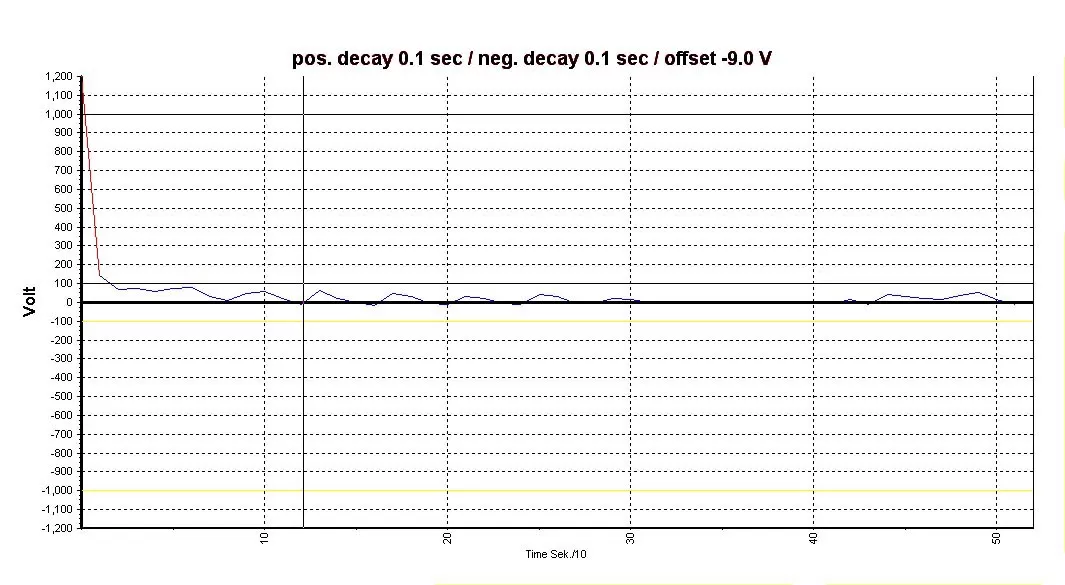

Fast Static Removal Speed

Excellent static removal performance with a static removal speed of ≤ 0.1s.

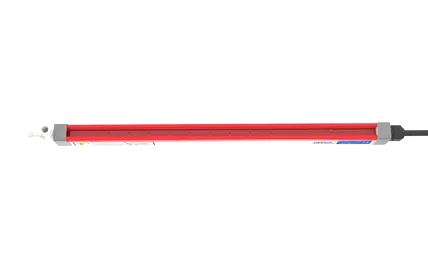

Durable And Sturdy

The shell is made of alloy material,

and the interior is made of high insulation performance synthetic plastic,

which is sturdy, durable, and has a beautiful appearance.

QP-ES-I-static-eliminator -4.png

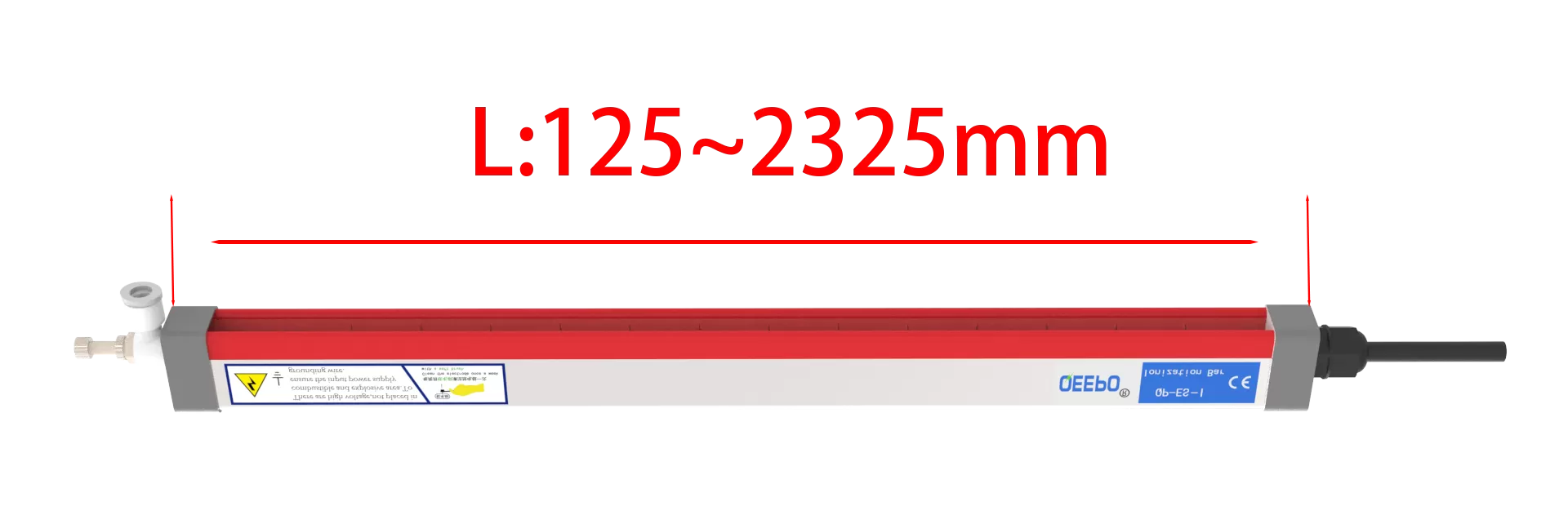

Length Can Be Customized

The length of 125-2325mm can be customized,

and the source manufacturer can customize in large quantities.

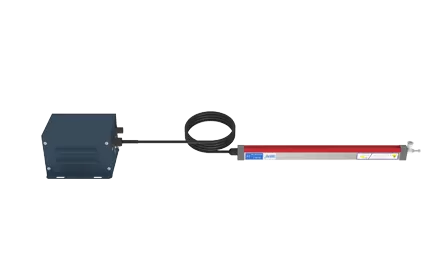

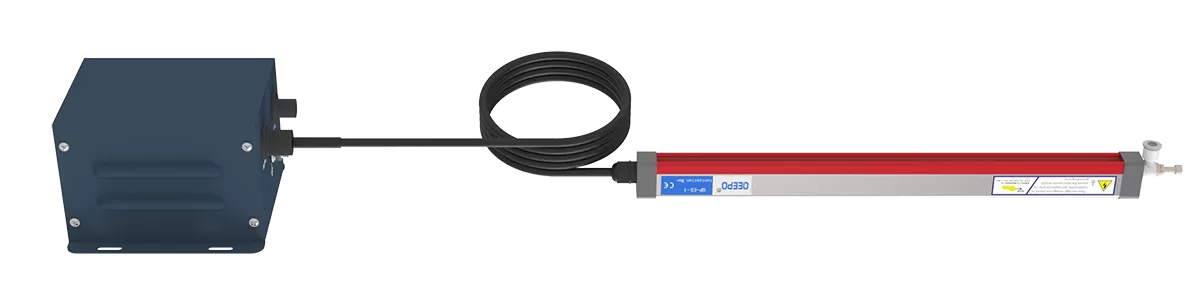

Equipped With A High-Voltage Power Supply For Use Together

Split type static eliminator needs to be equipped

with QP-HD series high-voltage power supply for use together.

QP-ES-I-static-eliminator with power supply.png

Specification

Specification of QP-ES-I Static Eliminator

TYPE	QP-ES-I
Working Voltage	MAX 7Kv AC
Operating Current	MAX 5mA
Working Frequency	50/60Hz
Operation Mode	Pulse AC
Working Distance	30~100mm
Recommended Installation Distance	30~50mm
Gas Pipe Size	Φ8
Operating Air Pressure	0.2~0.5MPa
Discharge Electrode Spacing	25mm
Discharge Electrode Material	SS. / W
Length	80~4000mm
Working Temperature	0~50℃
Operating Humidity	0 ~ 70% RH (No Freezing, No Condensation)
Test Conditions	Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test Voltage ± 1KV - ± 100V;
