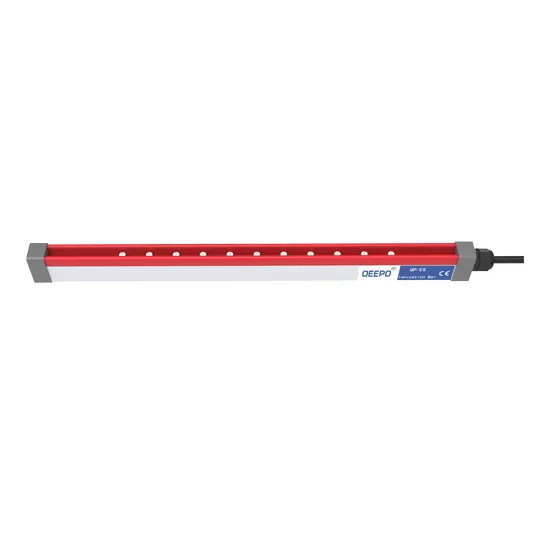

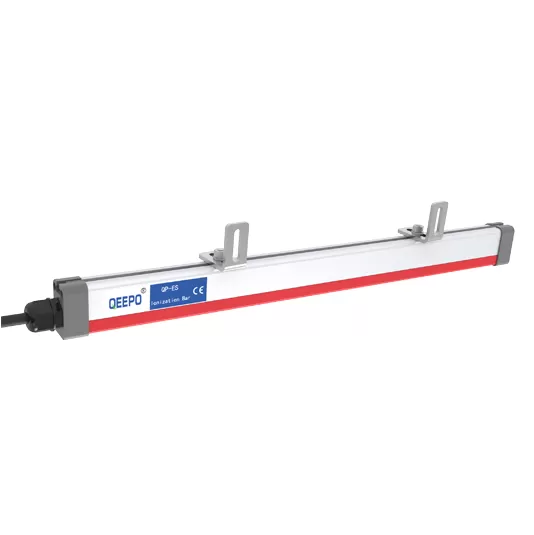

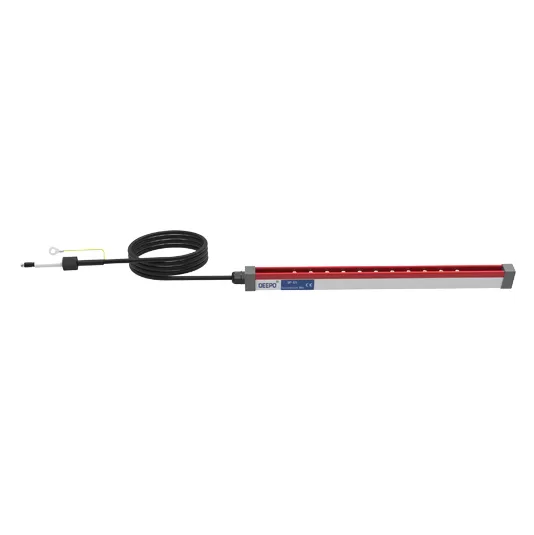

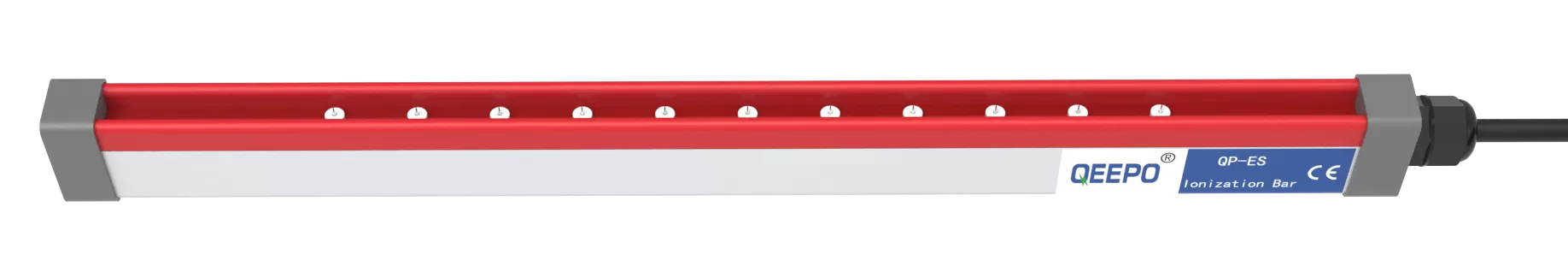

QP-ES is a safe and efficient static eliminator from QEEPO. It is equipped with a high-voltage power supply and has fast static elimination speed. The static electricity eliminator is designed with anti-shock protection and includes a ceramic column at the bottom of its discharge electrode, which enhances voltage resistance and insulation, ensuring its suitability for various industrial environments.
Get a Quote
PDF Download

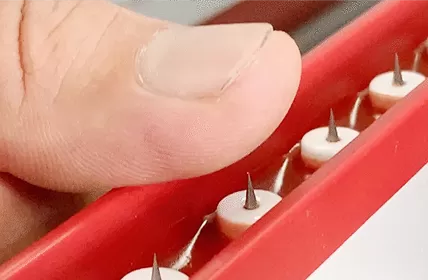

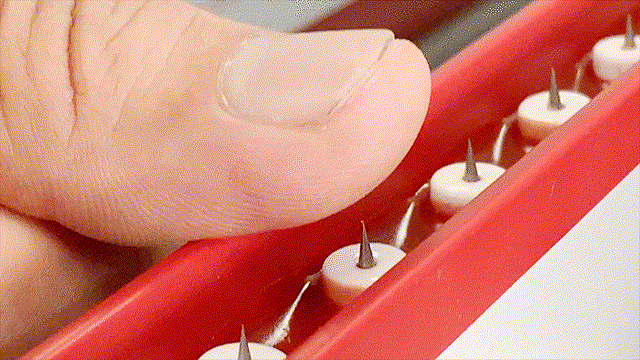

Anti Electric Shock Design
Internal coupling current limiting structure design,
anti electric shock design, will not cause discomfort to operators.

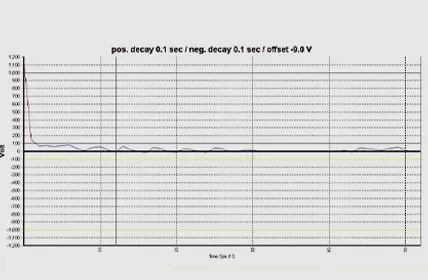

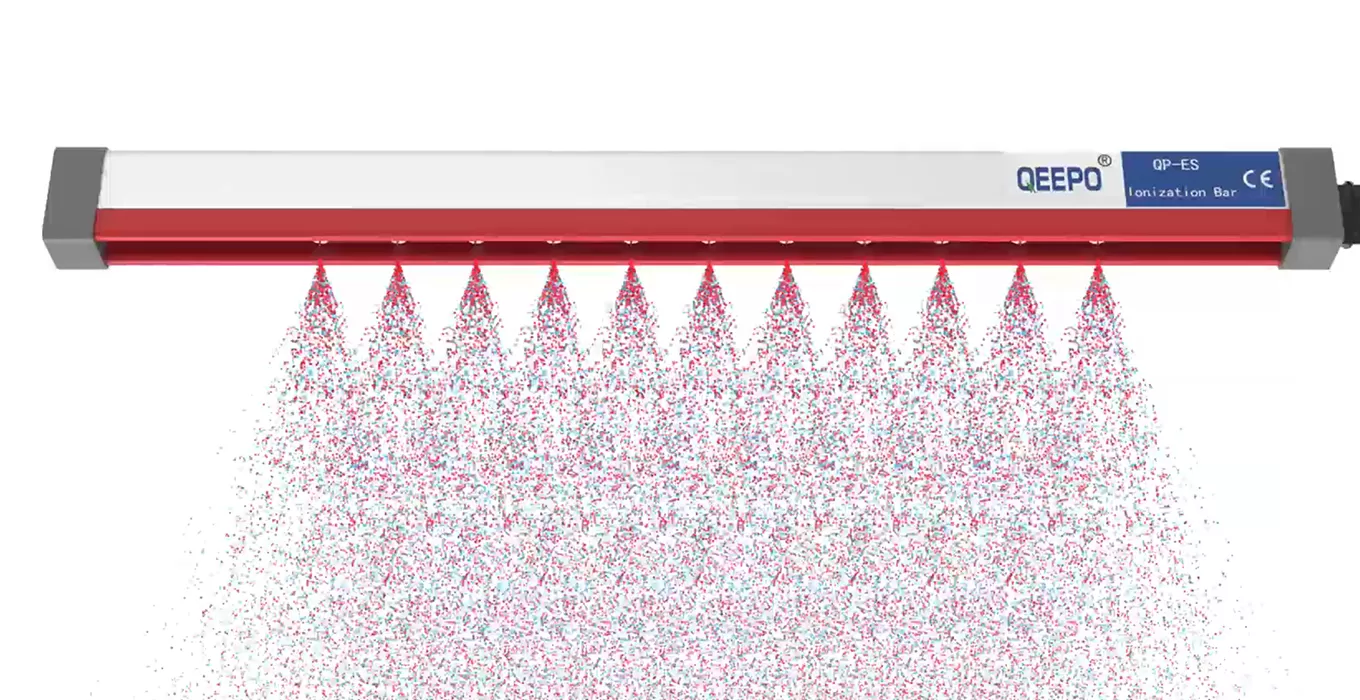

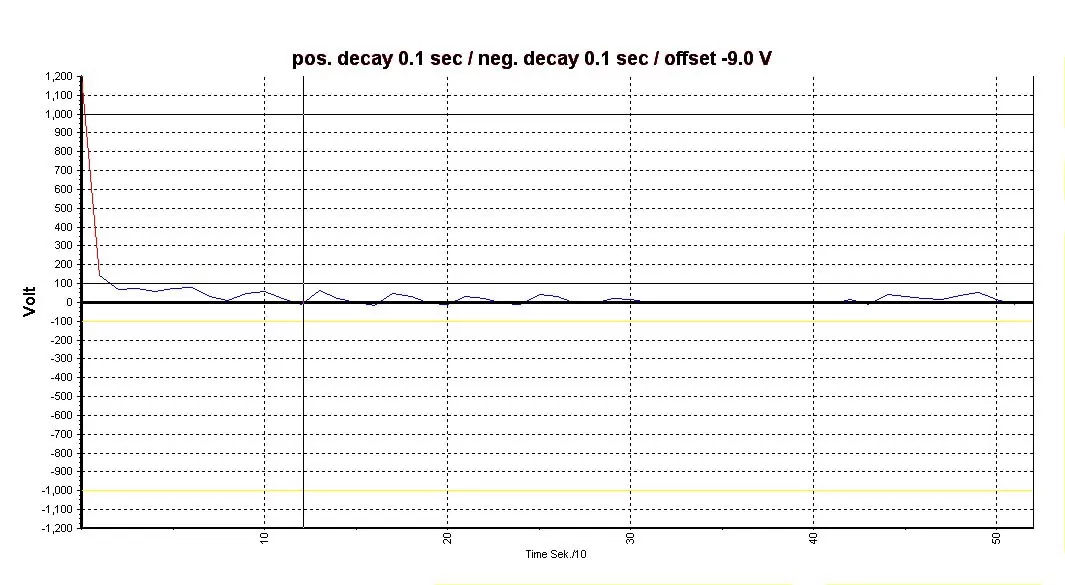

Fast Static Removal Speed
Excellent static removal performance with a static removal speed of ≤ 0.1s.

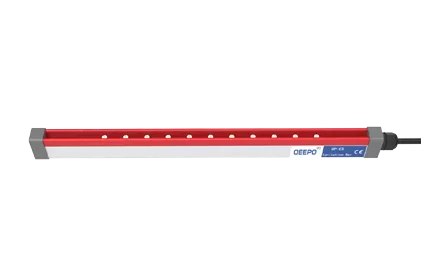

Durable and Sturdy
The shell is made of alloy material,
and the interior is made of high insulation performance synthetic plastic,
which is sturdy, durable, and has a beautiful appearance.

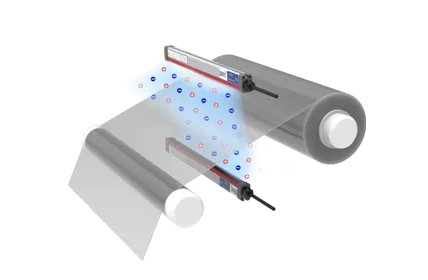

A Wide Range of Applications

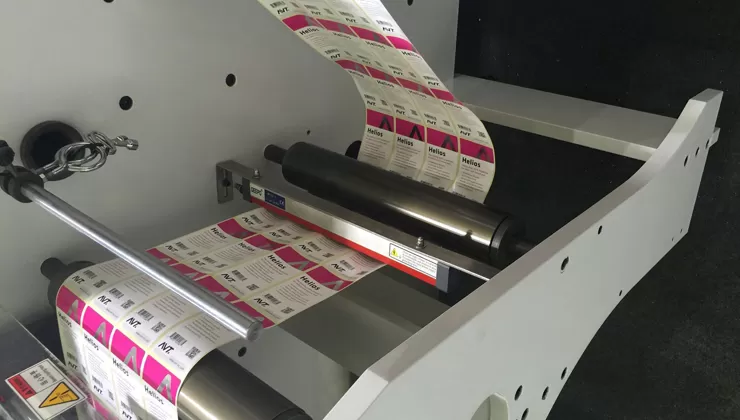

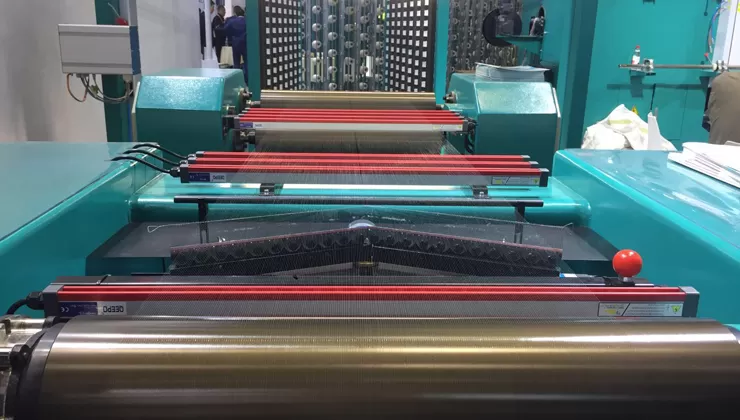

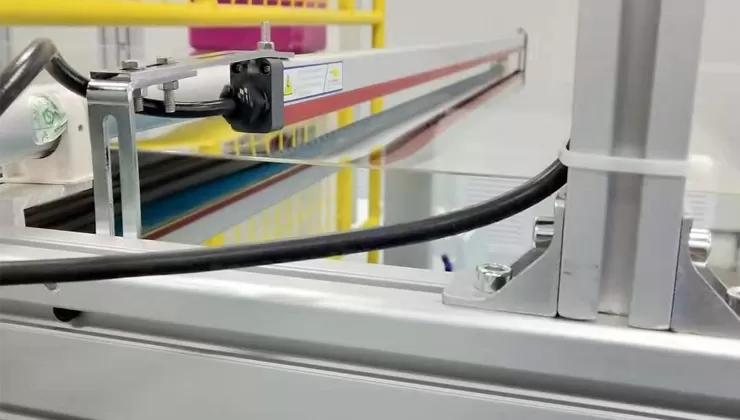

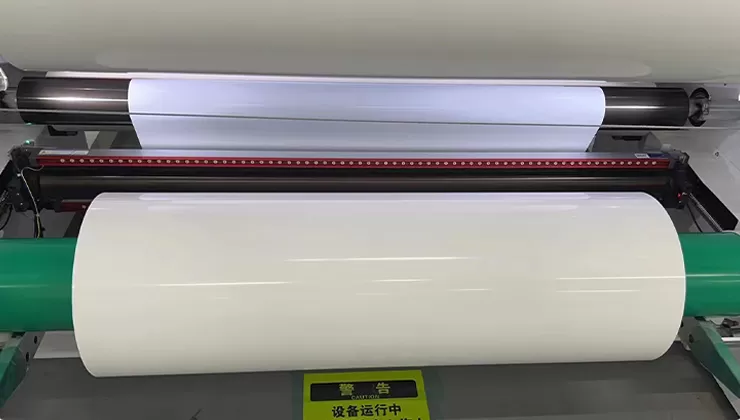

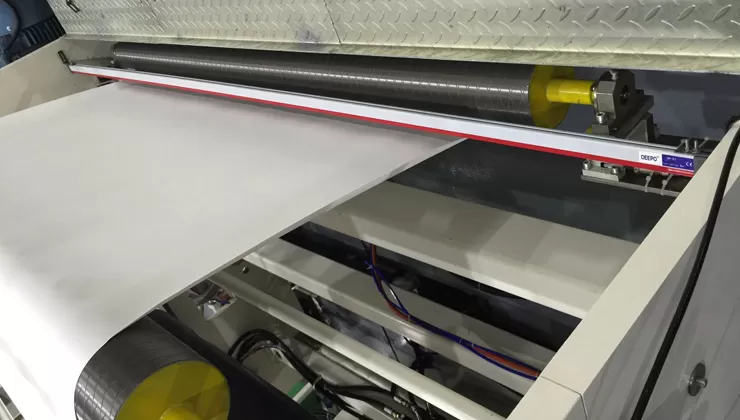

Suitable for static electricity removal in industries such as printing, textile, plastic, automotive, food and so on.

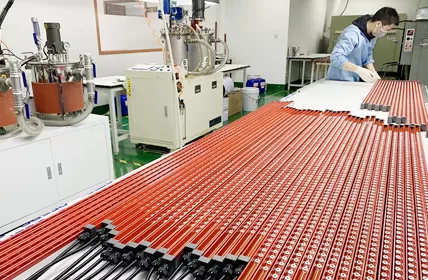

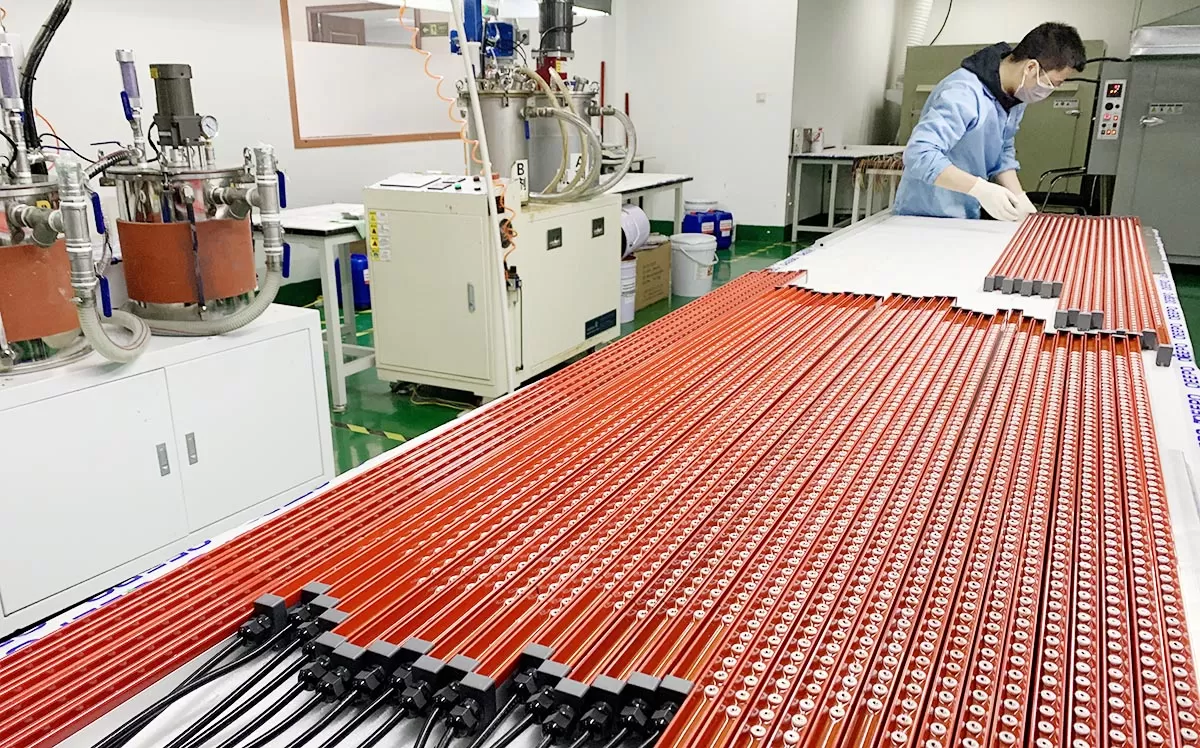

Length Can Be Customized
The length of 80-4000mm can be customized, and the source manufacturer can customize in large quantities.

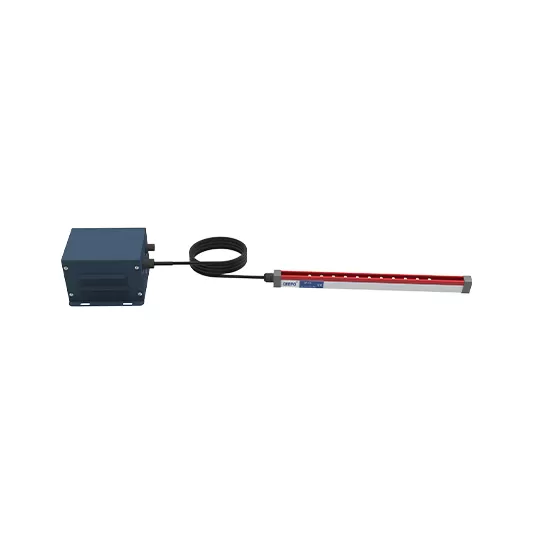

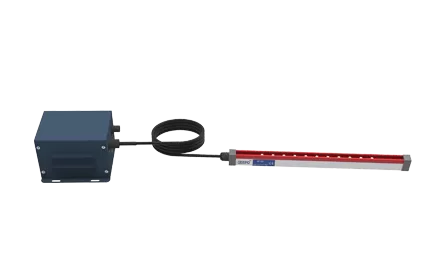

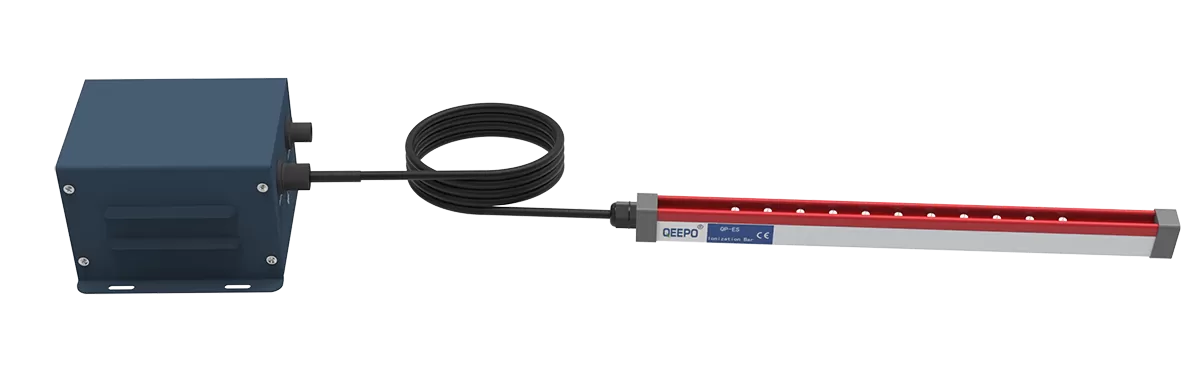

Equipped With A High-Voltage Power Supply For Use Together
Split type static eliminator needs to be equipped with QP-HD series high-voltage power supply for use together.

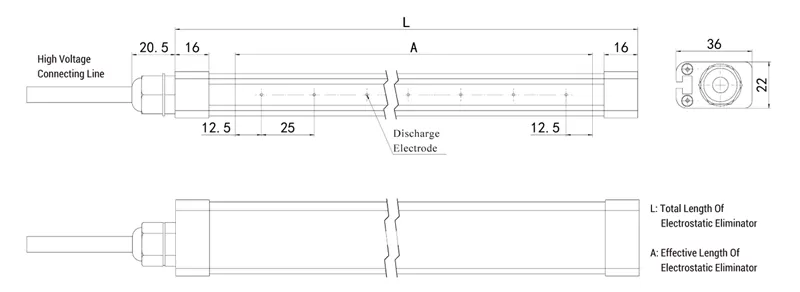

| TYPE | QP-ES |
| Working voltage | MAX 7Kv AC |
| Working current | MAX 5mA |
| working frequency | 50/60Hz |
| operation mode | Power frequency AC |
| Working distance | 3~15cm |
| Recommended installation distance | 3~5cm |
| Discharge electrode spacing | 25mm |
| Discharge electrode material | SS. / W |
| length | 80~4000mm |
| working temperature | 0~50℃ |
| Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V; | |
| test instrumentation：CPM374 | |
