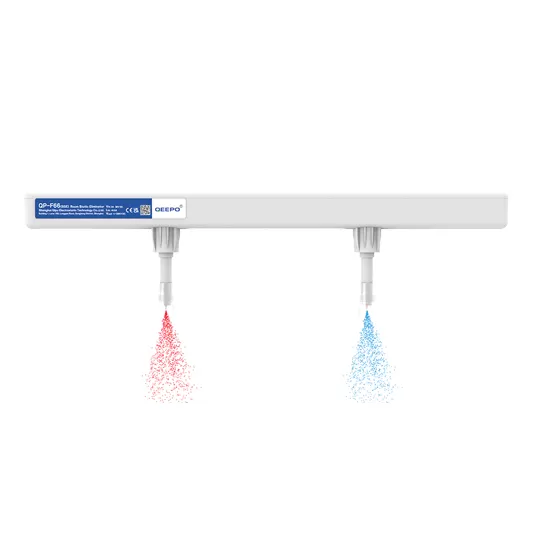

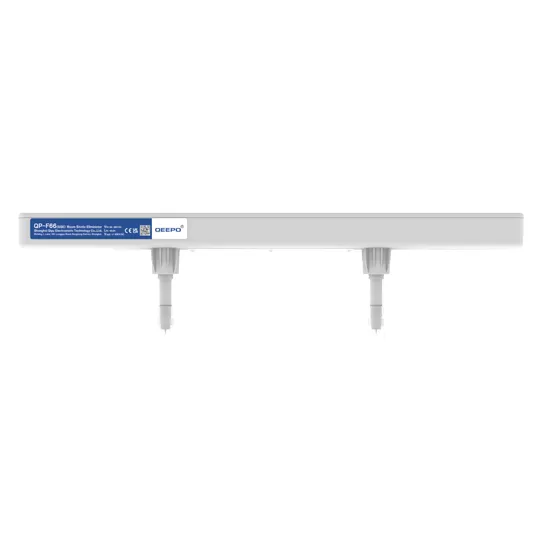

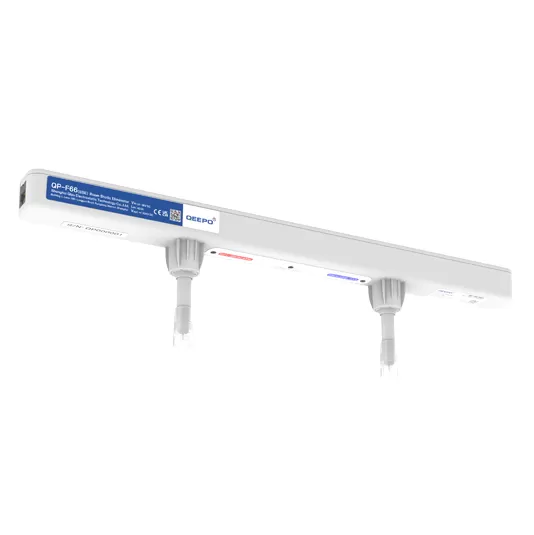

QP-F66 (SSE) is a space static eliminator suitable for eliminating static electricity in clean rooms, dust-free workshops, and other environments. As a prominent name among static eliminator manufacturers, Qeepo ensures this device meets the rigorous cleanliness standards required for high-tech production.
Get a Quote
PDF Download

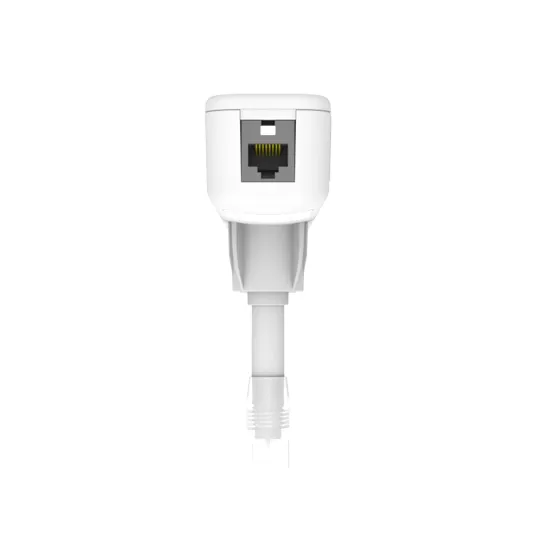

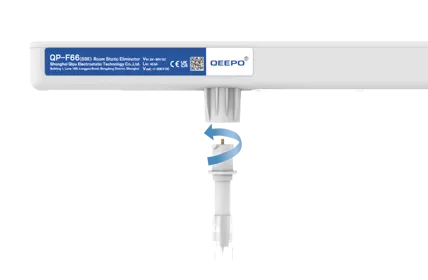

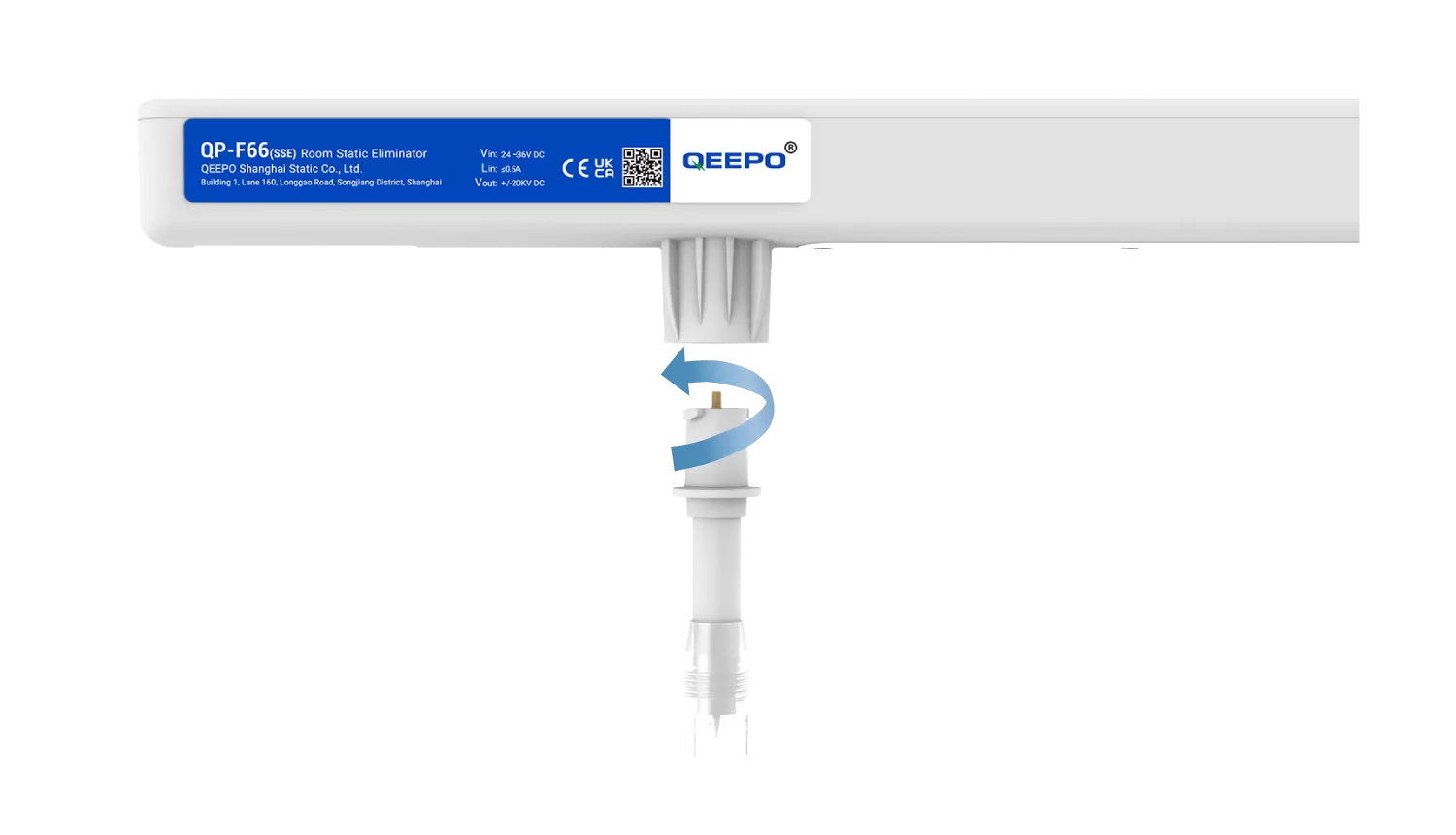

Detachable Electrode Placement
Easy to maintain, low cost.

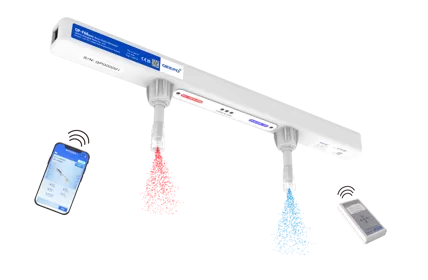

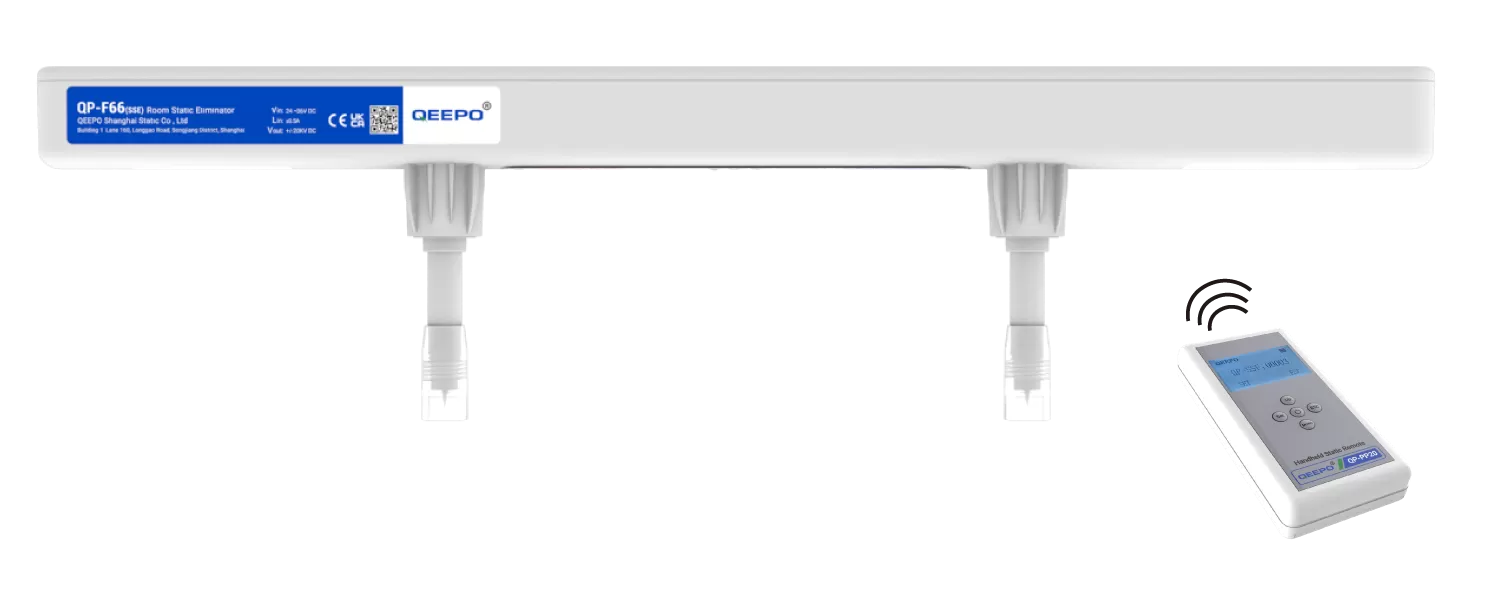

Real time viewing of work status
Real time monitoring of working status
and parameter adjustment can be achieved
through the QP-PP20 intelligent infrared remote control

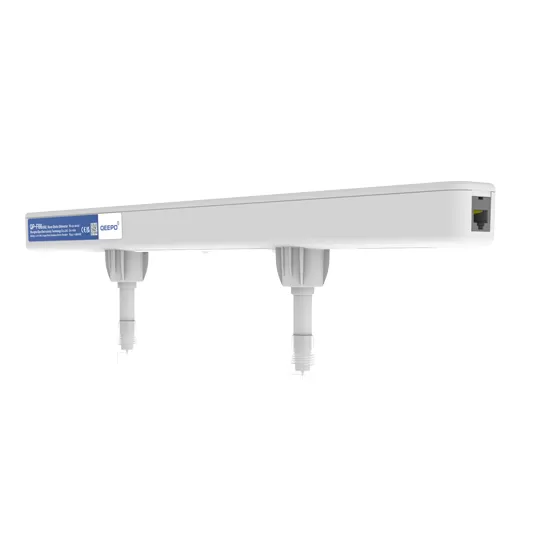

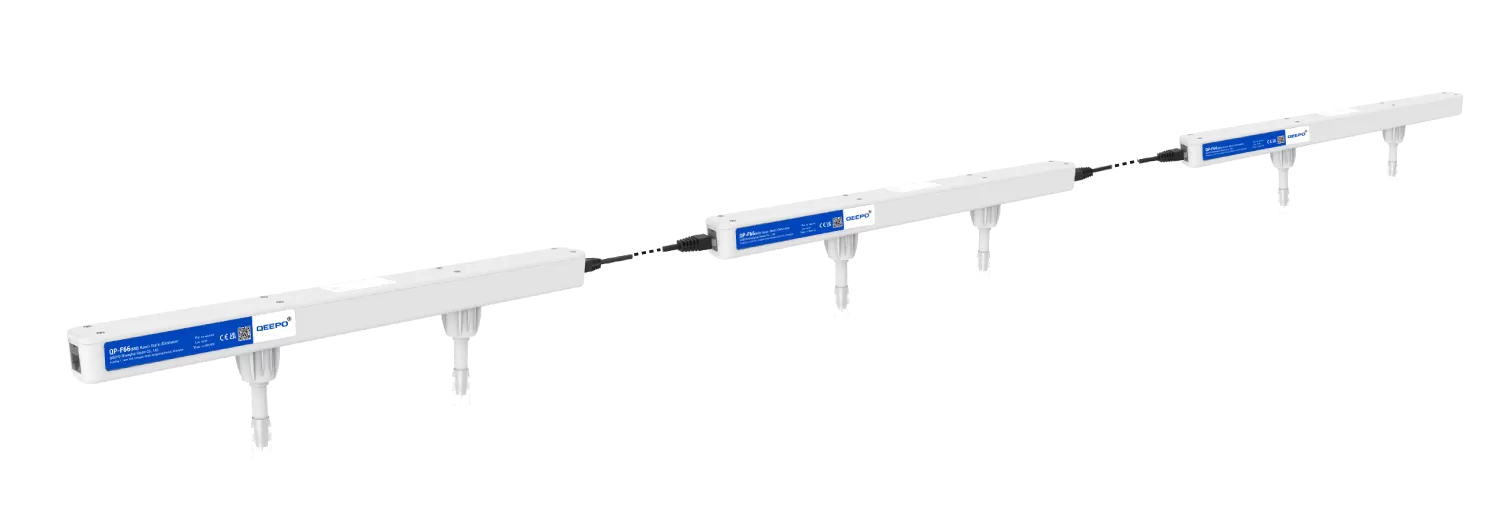

Connectable in series
Large-scale static electricity removal

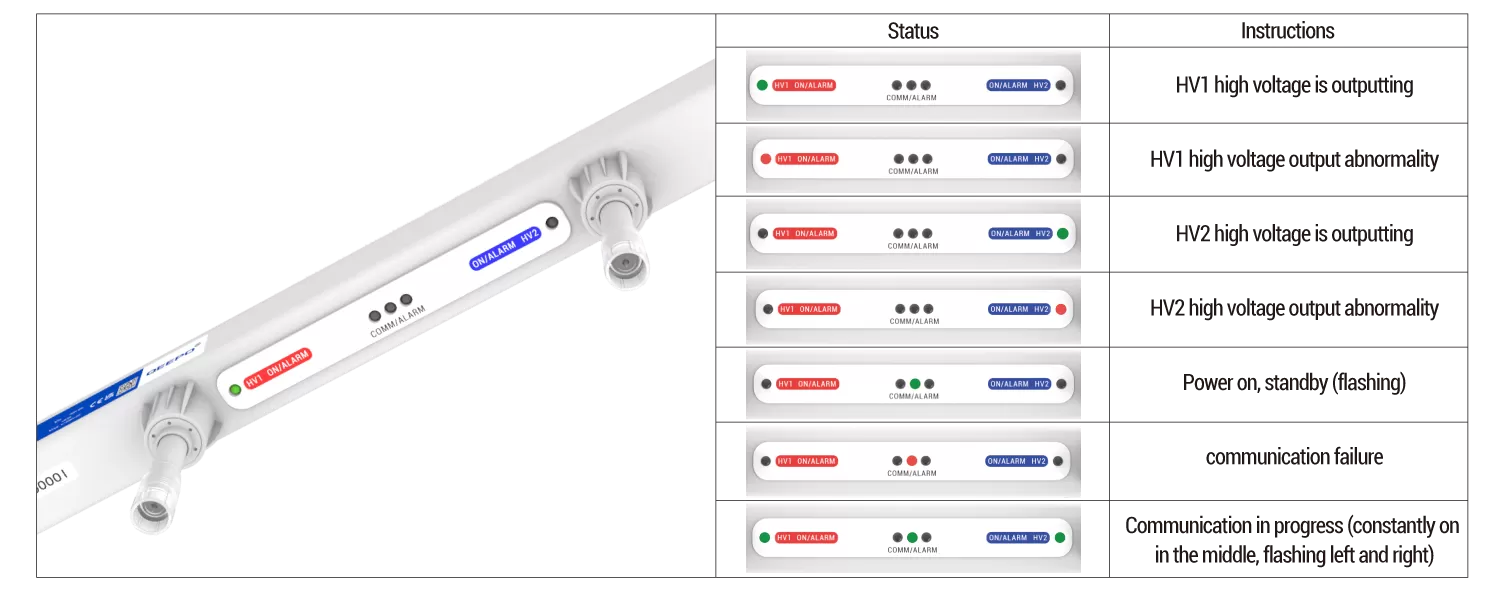

Status reminder function
Real time display of working status through LED, intuitive and convenient viewing
Multiple adjustable parameters
The positive and negative high voltage parameters can be adjusted for adjusting the ion balance voltage.

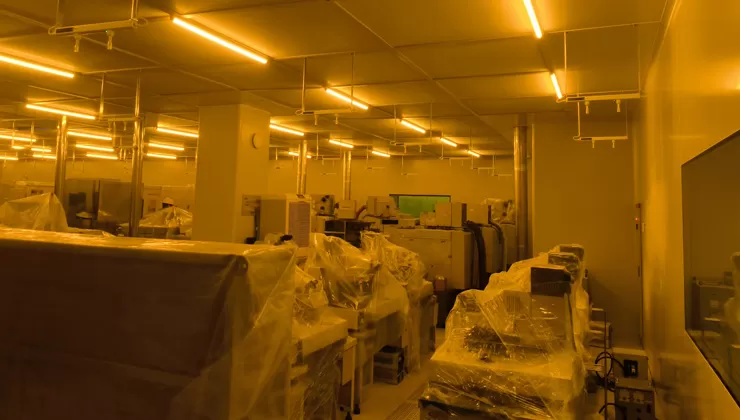

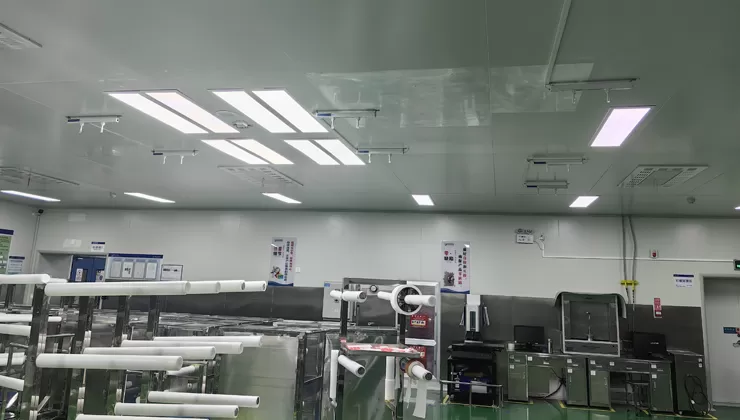

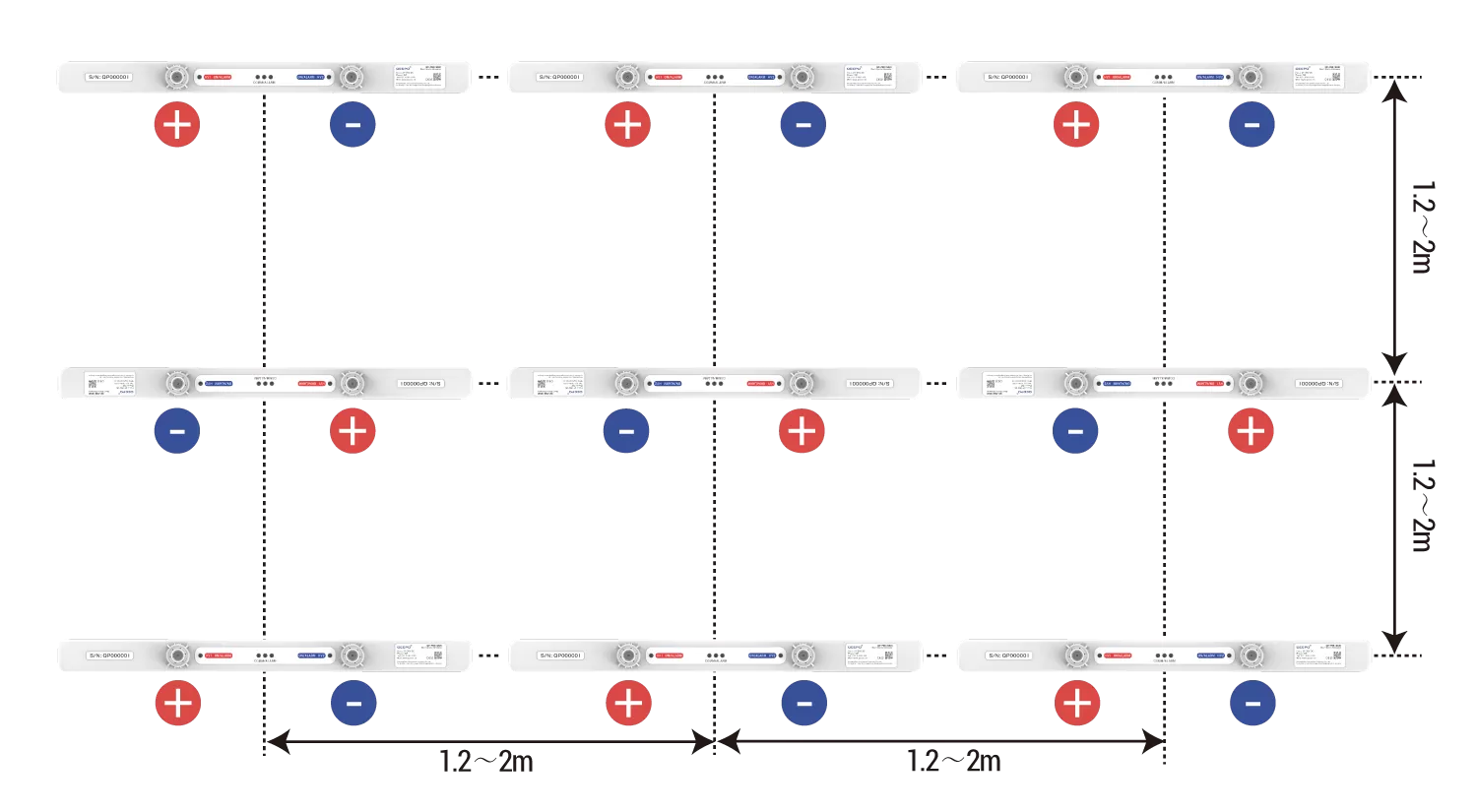

Installation and layout of spatial static eliminators
When arranging spatial static eliminators,
they need to be arranged alternately in red and blue with a spacing of 1.2-2m.
(Choose according to the actual situation)
Static elimination effect of space static eliminator
Professional instrument standard measurement
Effective Area Map

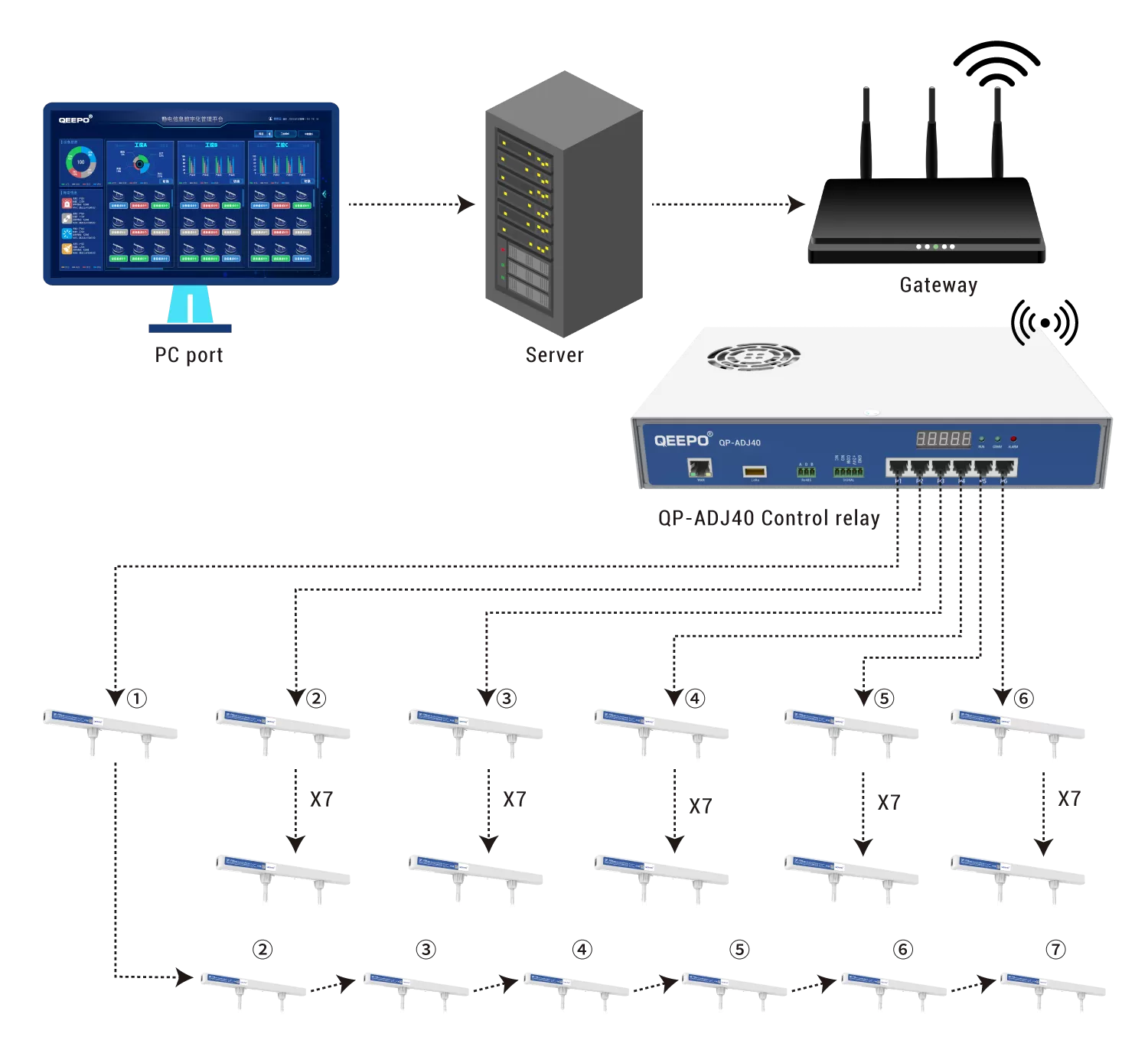

Product Connection System
| Model | QP-F66(SSE) | ||
| Input Voltage | 24-36V DC | Control Mode | Through Mobile Mini Programs Or QP-CONTROL SOFT Software |
| Power | ≤5W | Ozone Production | ≤0.005ppm |
| Working Voltage | 0～±20KV DC Positive And Negative High Voltage Can Be Adjusted Separately | Material Of Discharge Electrode | Single Crystal Silicon/tungsten Needle(Replaceable) |
| Working Frequency | 0～5Hz | Main Material | PC、ABS FR. |
| Work Proportion | 40% ：60%（POS:NEG） | Working Humidity | 35%～75%RH（No Condensation) |
| Working Mode | Pulse DC/Steady-State DC | Working Temperature | 0℃～40℃ |
| Connection Line | RJ45 8P8C (Both Ends Of The Product Have RJ45 Sockets） | ||
