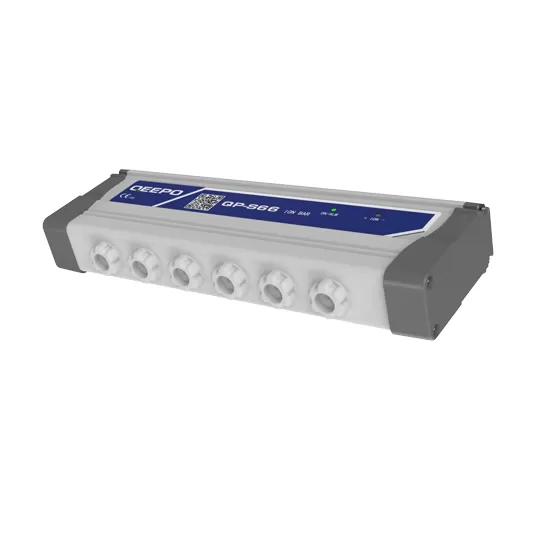

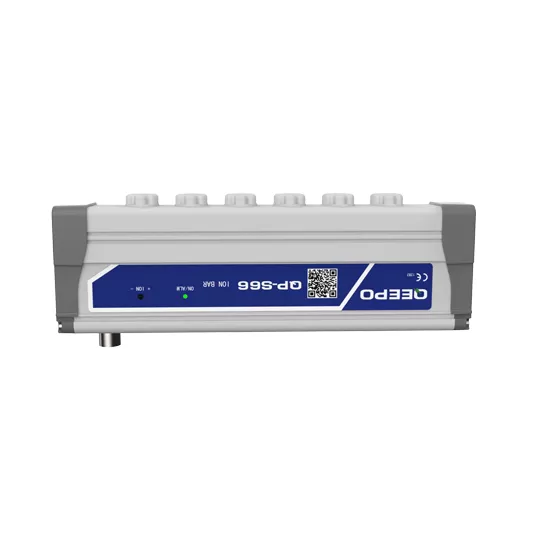

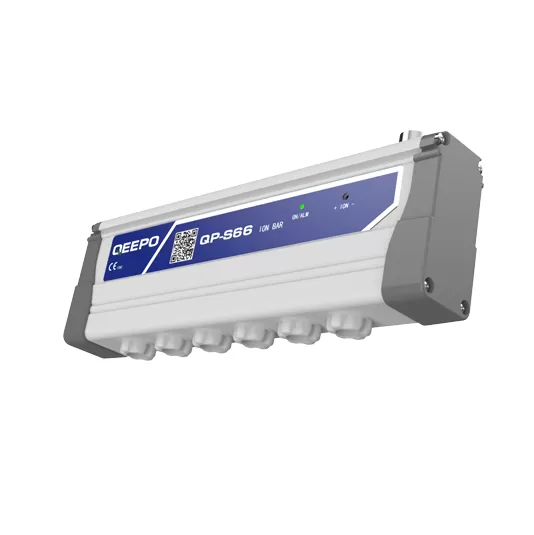

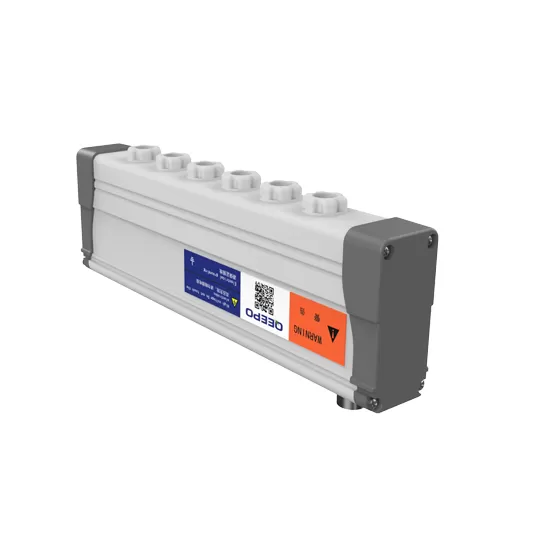

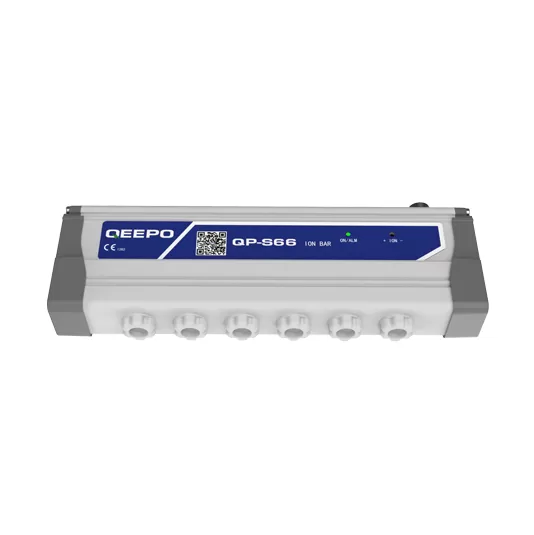

QP-S66 is a static eliminator designed by QEEPO for eliminating static electricity in printing equipment. It features an integrated design, multiple protection functions, adjustable ion balance, and is safe and efficient.
Get a Quote
PDF Download

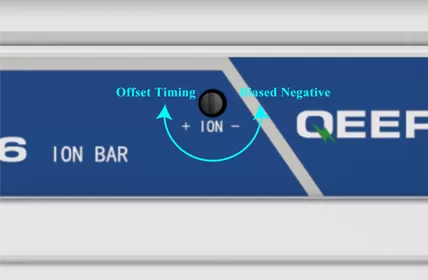

After the object to be charged is eliminated by static electricity, the ion balance is adjusted according to the polarity of the residual static voltage on the surface.

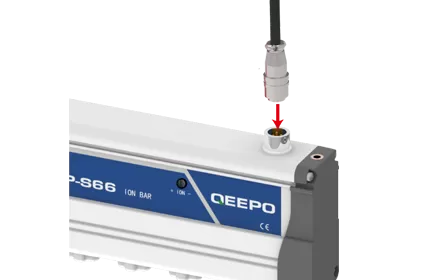

Directly inputting 24V DC power can work with low power consumption and quickly eliminate static electricity carried by objects.

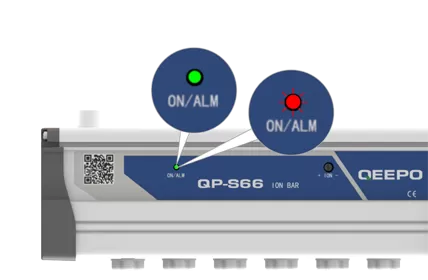

When abnormal discharge occurs in the discharge electrode, the static eliminator stops working, the indicator light turns red, and starts flashing.
Long service life

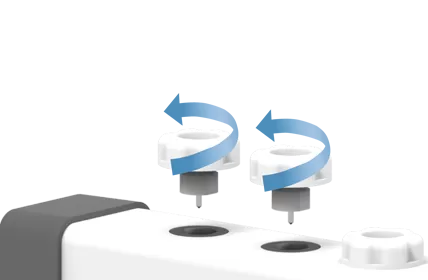

When disassembling and placing electrodes, use tools or hold them by hand, and rotate counterclockwise to remove them.

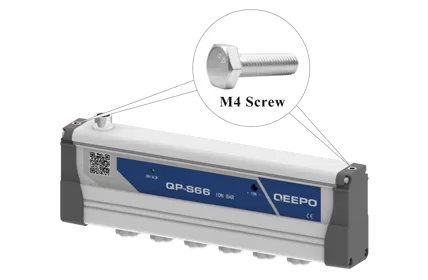

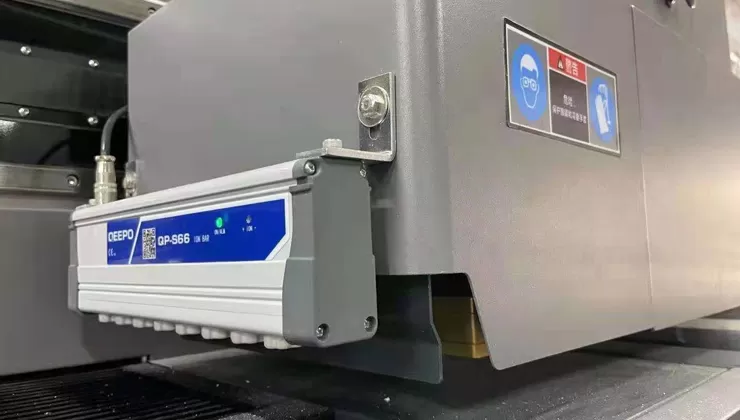

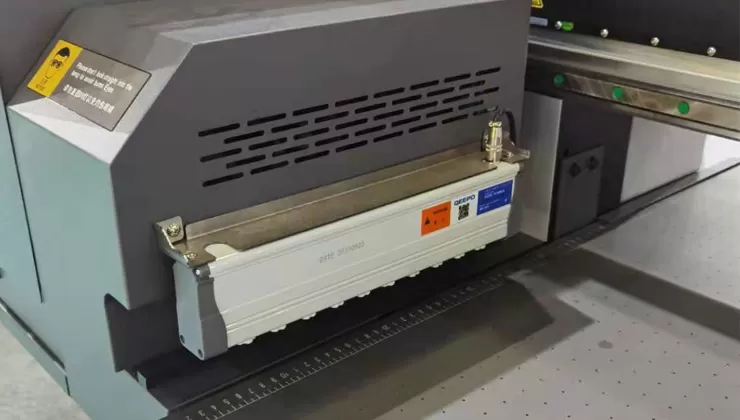

There are M4 threaded holes on both ends of the baffle, which are fixed to the equipment.

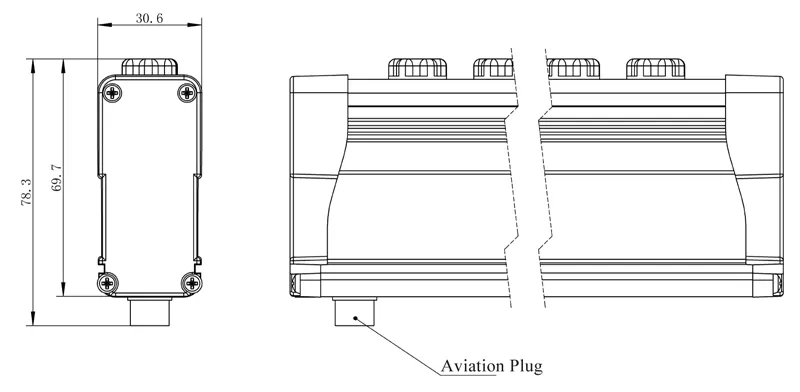

| TYPE | QP-S66 | ||
| input voltage | 24V DC | Working distance | 20~100mm |
| Input current | 1A | Recommended installation distance | 20~50mm |
| Rated power | 24W | Discharge electrode spacing | 20mm |

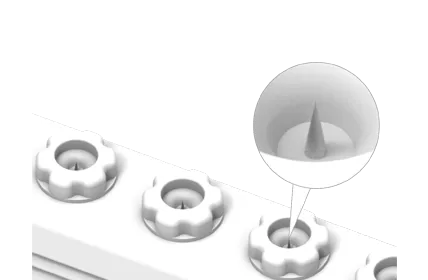

| Ion balance | ± | 70V| | Discharge electrode material | W |
| working frequency | 50 Hz | Discharge electrode replacement | yes |
| operation mode | Pulse AC | working temperature | 0~50℃ |
| Working humidity | 0 ~ 70% RH (no freezing, no condensation) | ||
| Test conditions: | Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V; | ||
