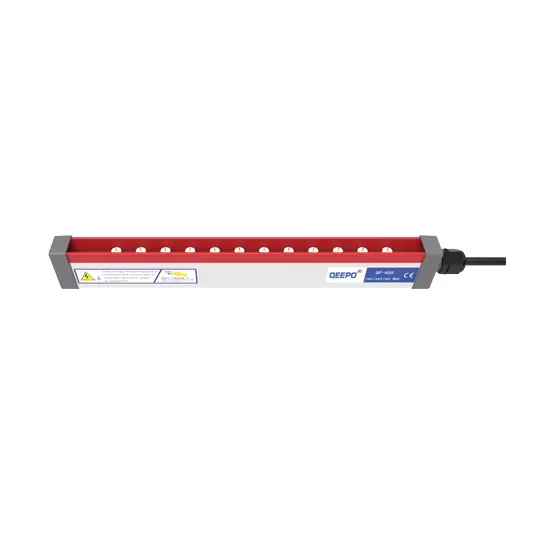

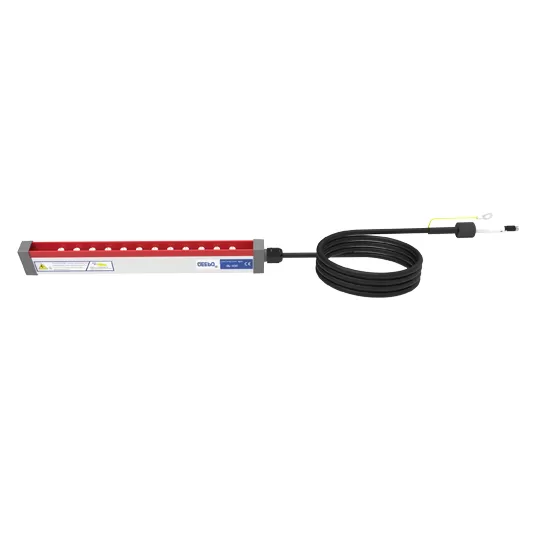

QP-H35 is a stable static eliminator from QEEPO, designed to prevent electric shock and used in conjunction with the QP-HD series high-voltage power supply. It has a fast static elimination speed and is equipped with a ceramic column at the bottom of the discharge electrode to enhance overall voltage resistance and insulation strength. It is suitable for static control in various industrial environments.
Get a Quote
PDF Download

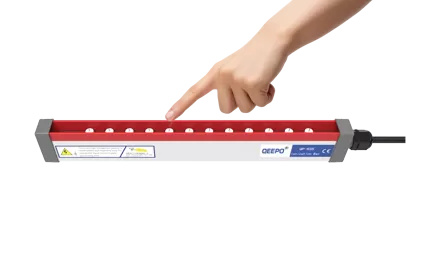

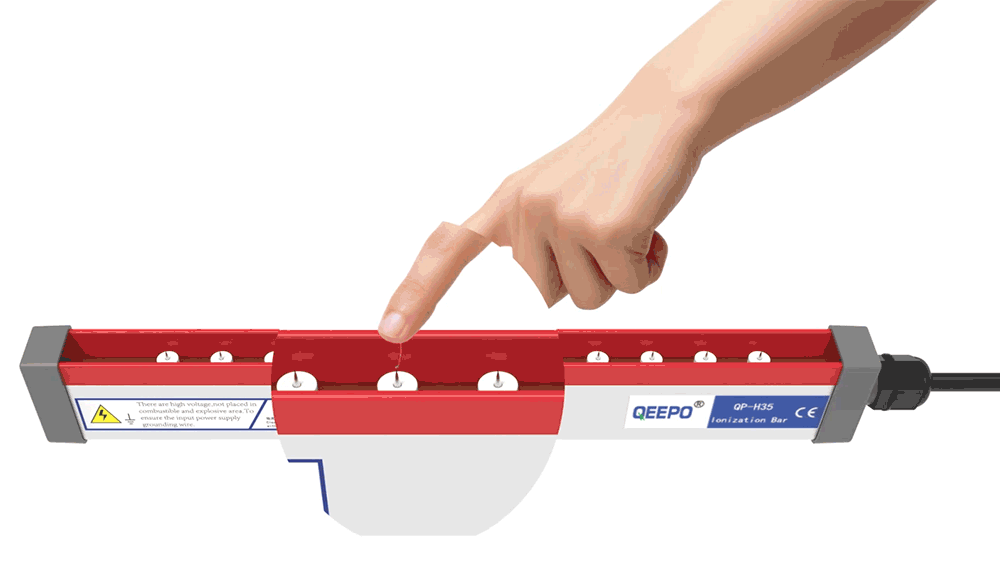

Anti Electric Shock Design
Internal coupling current limiting structure design,
anti electric shock design, will not cause discomfort to operators.

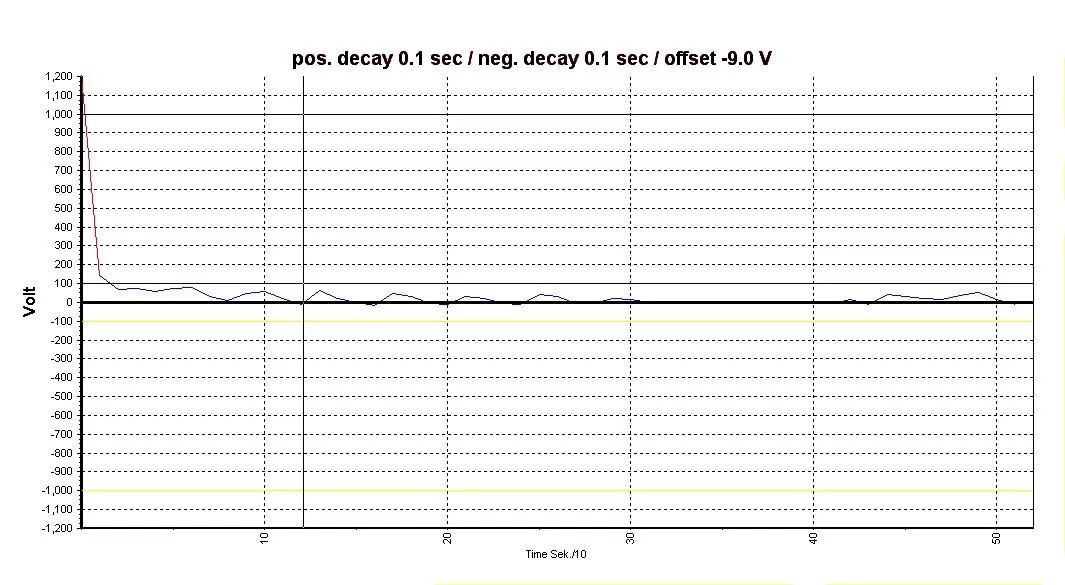

Fast Static Removal Speed
Excellent static removal performance with a static removal speed of ≤ 0.1s.
.webp)

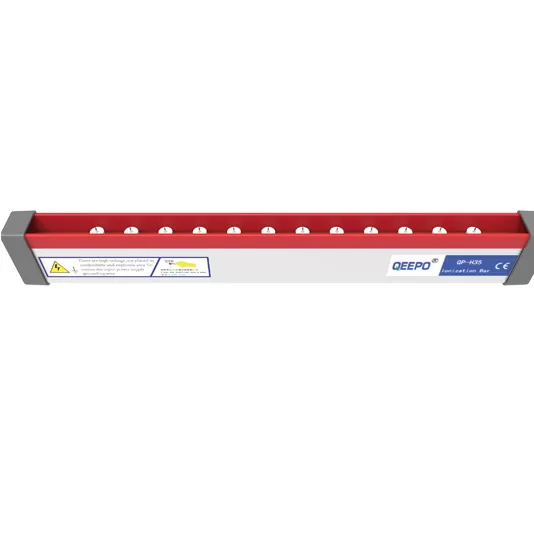

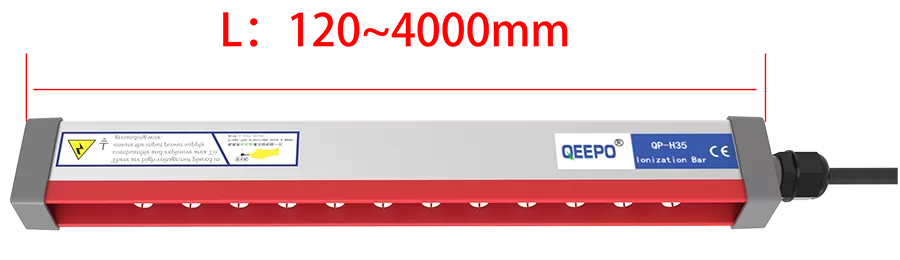

Durable And Sturdy
The main body is made of new composite materials, which are sturdy, durable, and have a beautiful appearance.

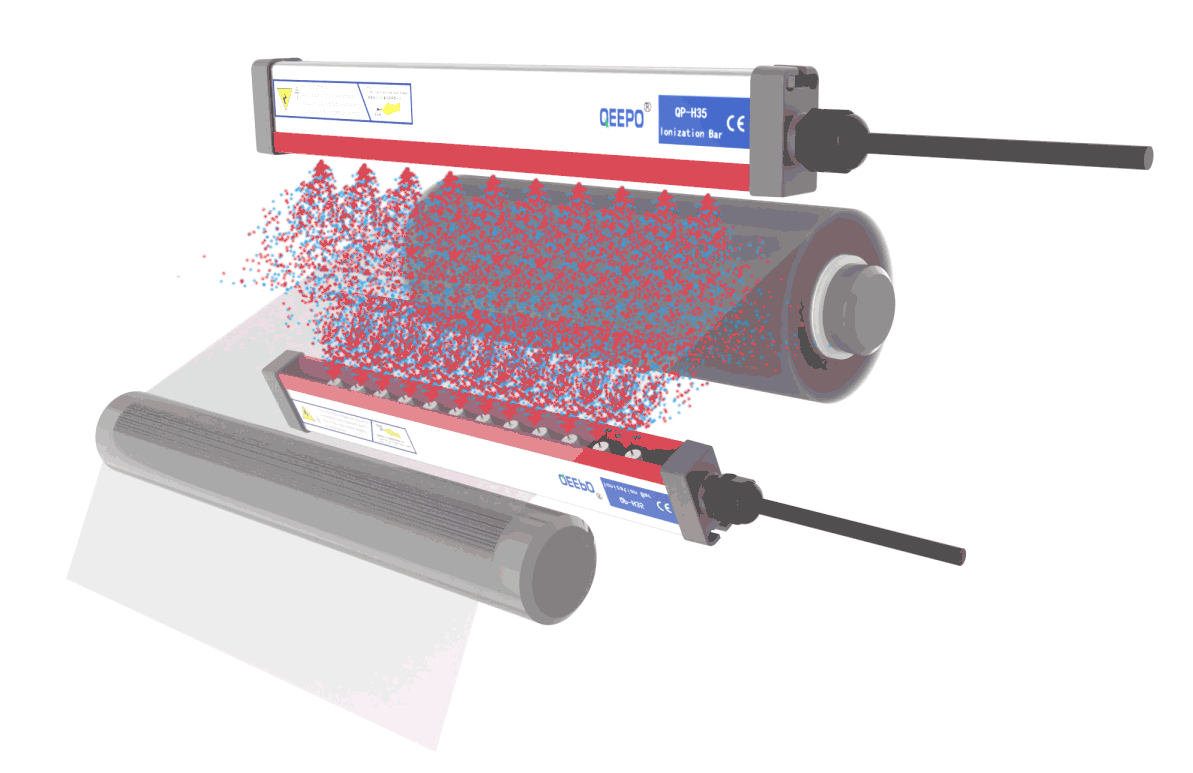

A Wide Range Of Applications

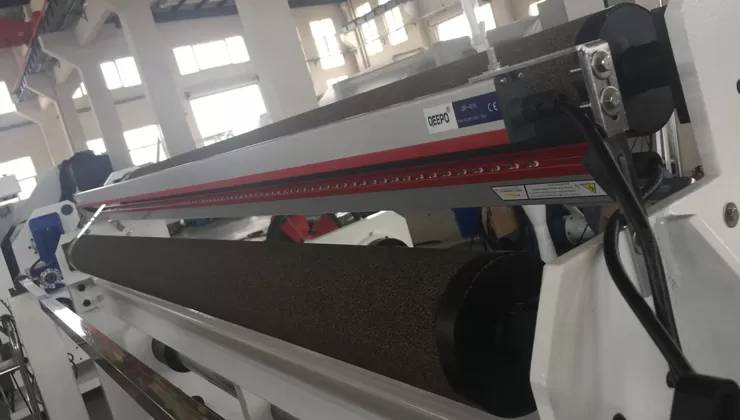

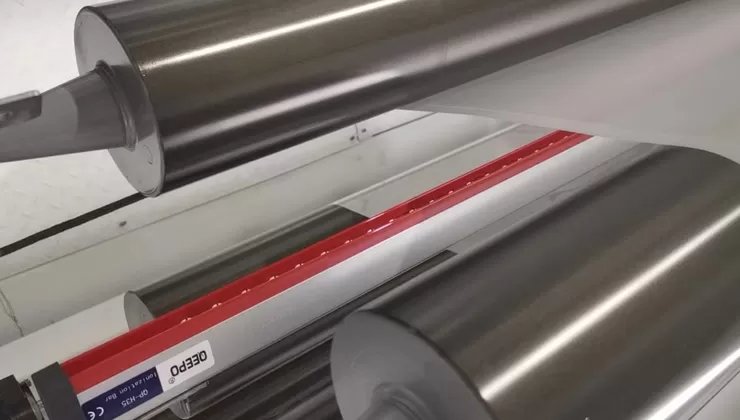

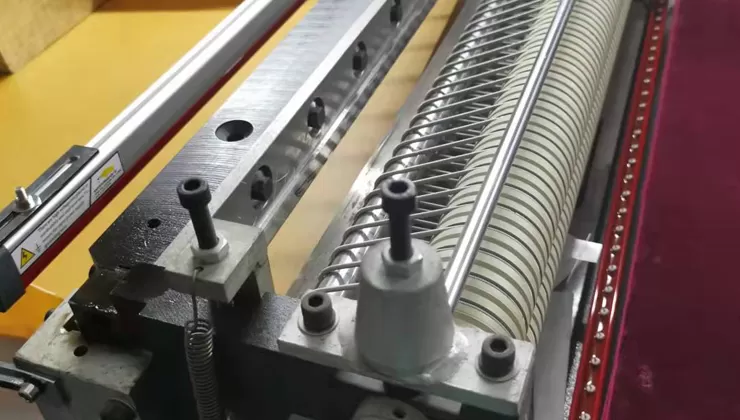

Suitable for static electricity removal in industries such as printing, textile, plastic, automotive, food and so on.

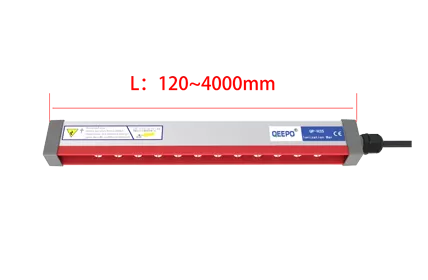

Length Can Be Customized
The length of 120-4000mm can be customized, and the source manufacturer can customize in large quantities.

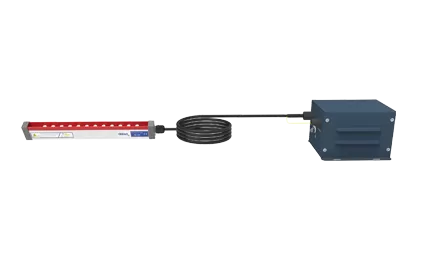

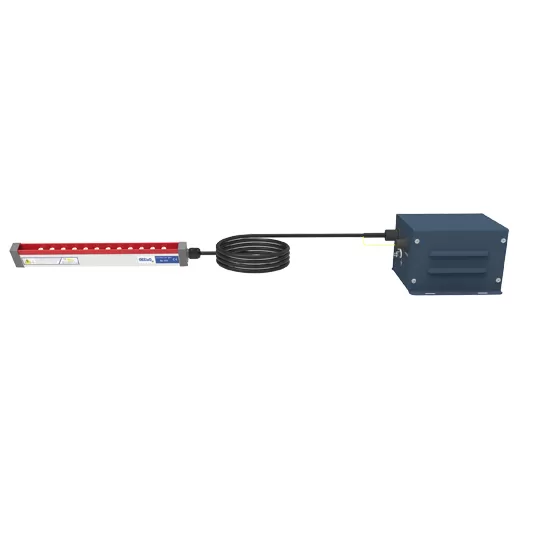

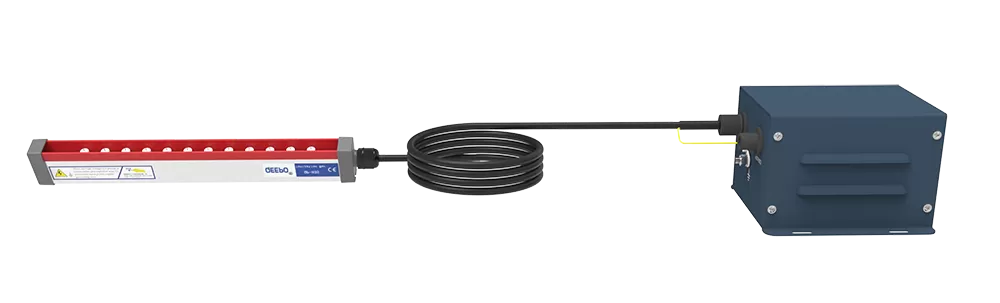

Equipped With A High-Voltage Power Supply For Use Together
Split type static eliminator needs to be equipped with QP-HD series high-voltage power supply for use together.
| type | QP-H35 | ||
| working voltage | MAX 7Kv AC | Recommended installation distance | 30~50mm |
| working current | MAX 5mA | Discharge electrode spacing | 20mm |
| working frequency | 50/60Hz | Discharge electrode material | SS. / W |
| operation mode | Pulse AC | length | 120~4000mm |
| Working distance | 30~150mm | working temperature | 0~50℃ |
| Operating humidity | 0~70% RH (no freezing or condensation) | ||
| Test conditions | Temperature: (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage: ± 1KV~± 100V; | ||
