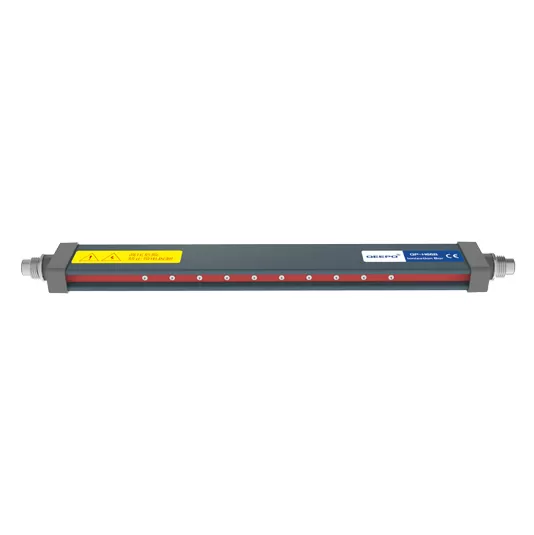

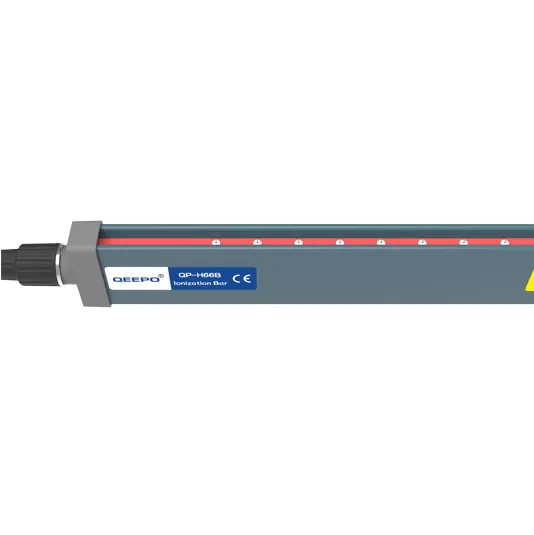

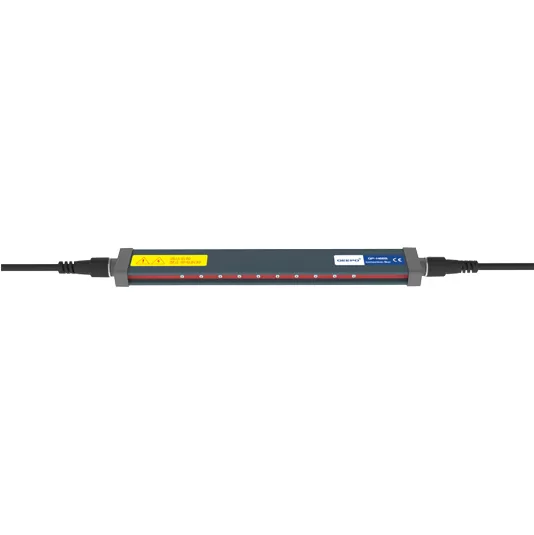

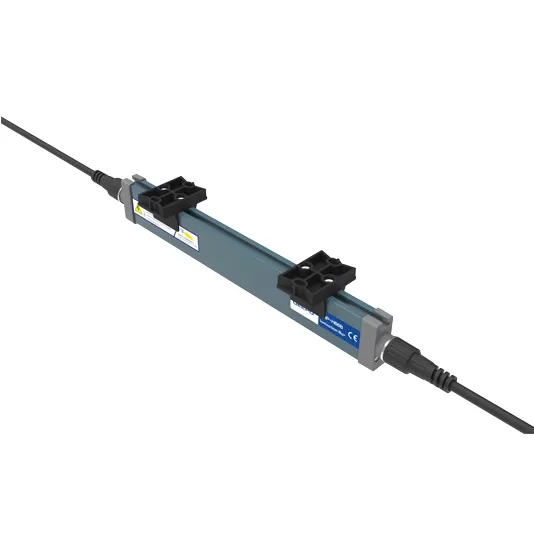

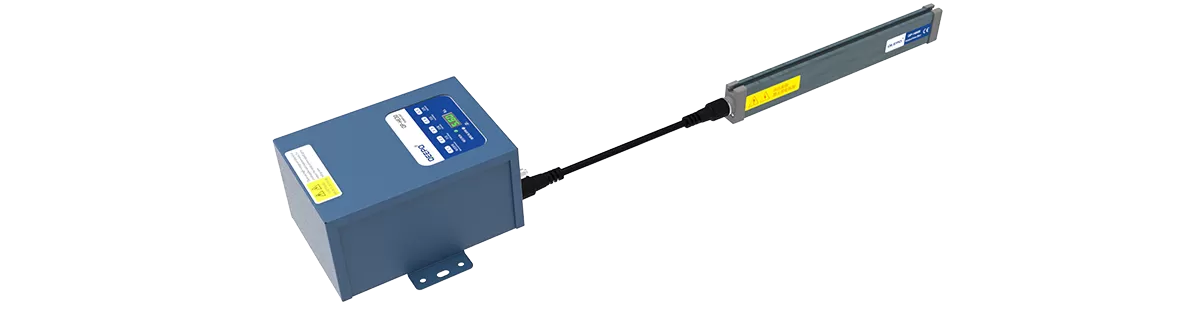

QP-H66B Detachable and Efficient Electrostatic Eliminator

Name: QP-H66B Detachable and Efficient Electrostatic Eliminator
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

QP-H66B is a high-voltage line detachable static eliminator. For those with a risk of high-voltage line damage, simply replace the high-voltage line without replacing the entire static rod. It is suitable for multiple industrial fields to remove static electricity.

Get a Quote PDF Download

PDF Download

Advantages

Performance Advantages of QP-H66B Static Eliminator

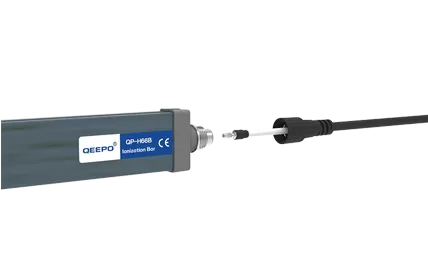

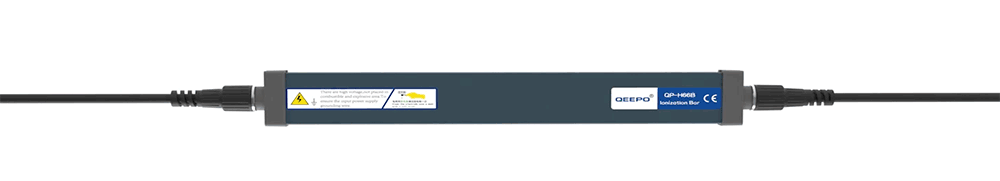

New Detachable High-Voltage Line Design

For those with a risk of damage to the high-voltage line, simply replace the high-voltage line instead of replacing the entire electrostatic bar.

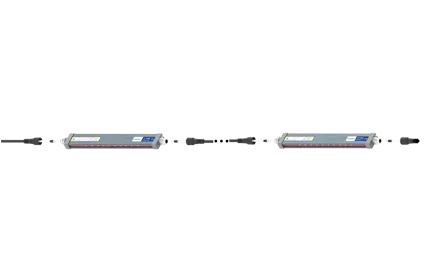

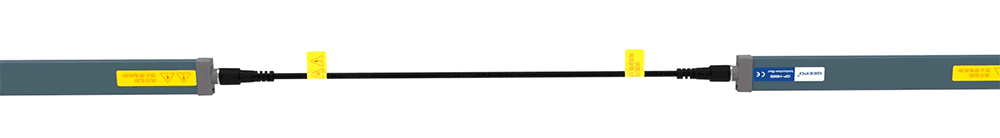

Both Ends Of The Electrostatic Rod Can Be Disassembled

Series connection is simple and convenient to use.

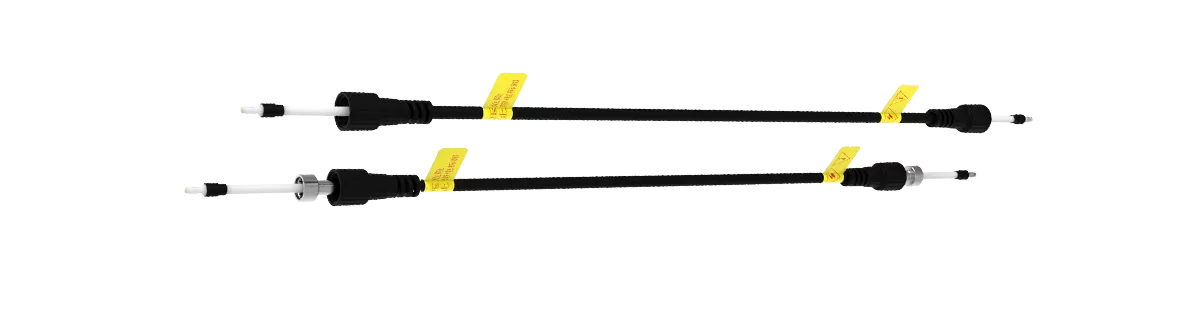

The Length Of The Double Ended High-Voltage Line Can Be Customized

Maximum length of 11m (standard 2.5 meters), selected according to the maximum load of the power supply.

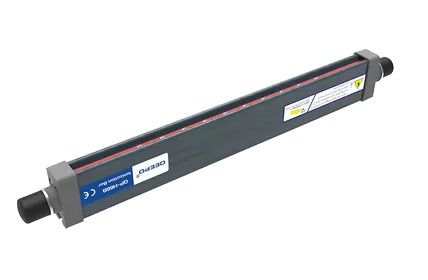

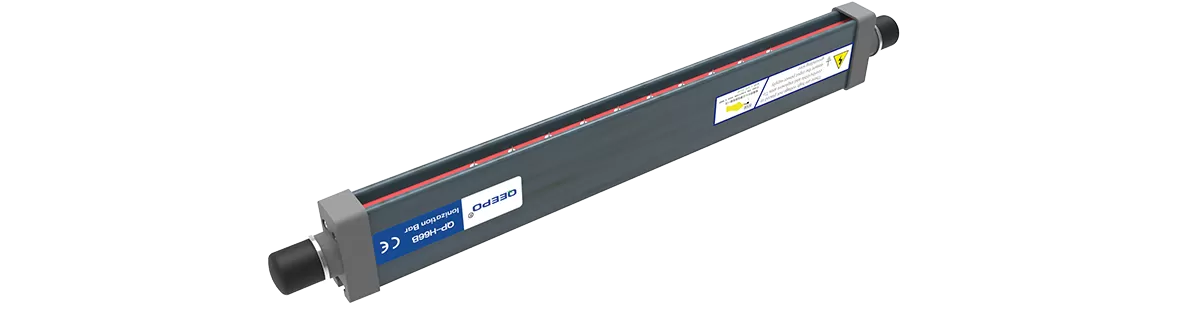

External Use Of High Insulation Composite Materials

Non metalized structural design, higher strength, and better insulation.

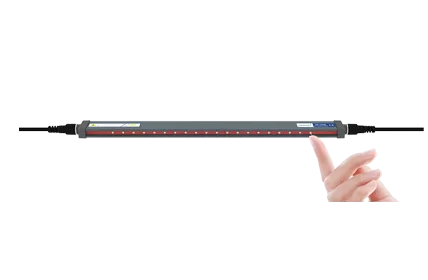

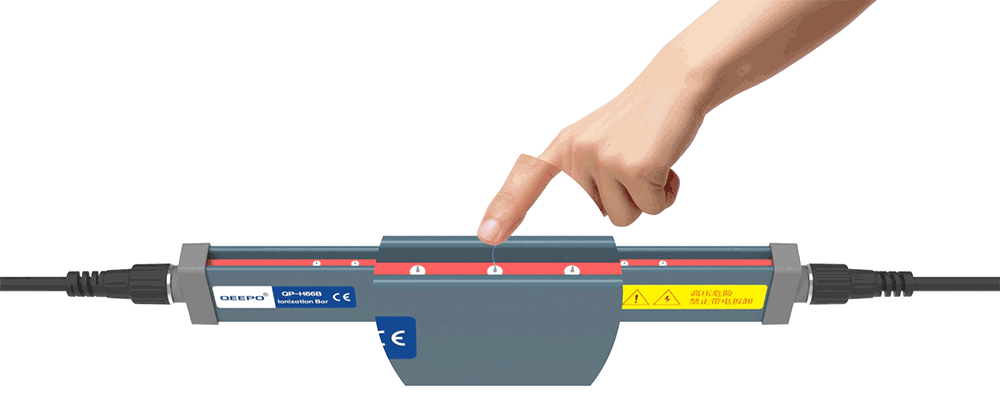

Anti Electric Shock Design

Internal coupling current limiting structure design, anti electric shock design, will not cause discomfort to operators.

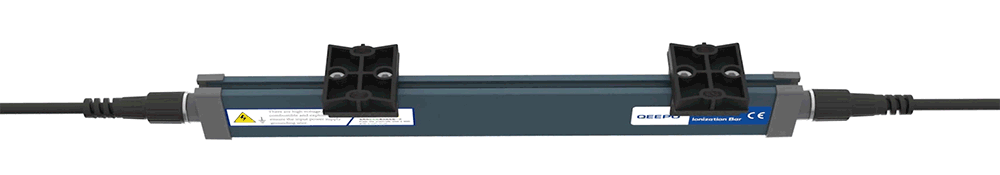

Adopting High Insulation Fixed Slider

Insulated safely and easy to fix for installation.

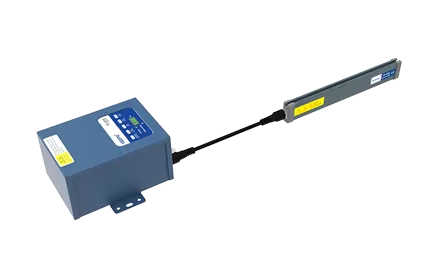

Equipped With A High-Voltage Power Supply For Use Together

Split type static eliminator needs to be equipped with QP-HD series high-voltage power supply for use together.

Specification

Specification of QP-H66B Static Eliminator

Classification	Model	QP-H66B1I	QP-H66B1H	QP-H66B2I	QP-H66B2H
Structure	Model	Standard Version	Electrode Encryption Type	Standard Version	Electrode Encryption Type
	Needle Pitch	20mm	10mm	20mm	10mm
	Number Of High-pressure Connectors	1	1	2	2
Material Quality	Electrode Needle Material	Standard SS (Optional W)
Material Quality	Body Material	FRP/ABS/PC/PU/PA6
Performance Parameter	Working Voltage	MAX 7Kv AC
	Working Current	MAX 5mA
	Working Frequency	50/60Hz
	Working Distance	30~200mm	30~250mm	30~200mm	30~250mm
	Recommended Installation Distance	30~50mm
	Section Size	21.3*46.6 mm(Excluding Fixed Blocks
	Processing Length	120~4000mm	120~3990mm	160~4000mm	160~4000mm
Work Environment	Operating Environment Temperature	0-50℃
Work Environment	Operating Environment Humidity	0~70%RH（No Freezing, No Condensation）
Supporting Cables	Standard Length Of 2.5 Meters, With Two Plugs And A Bending Radius Of 80mm; Maximum Length Of 11m (Selected Based On The Maximum Load Of The Power Supply)
Adapted Power Supply	QP-HE10 Or QP-HE30
Note: The Measurement Conditions For The Above Data Are: Temperature (23 ± 3 ℃); Humidity (50 ± 5)%; Test Voltage: ± 1kv~± 100v;
