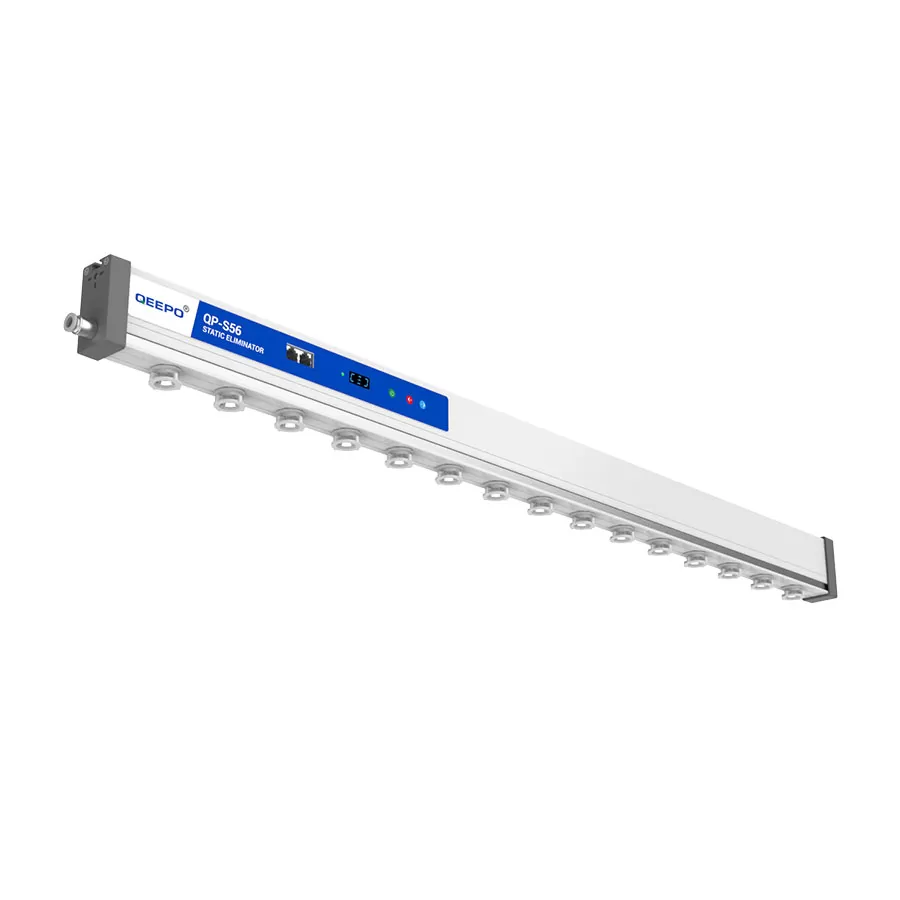

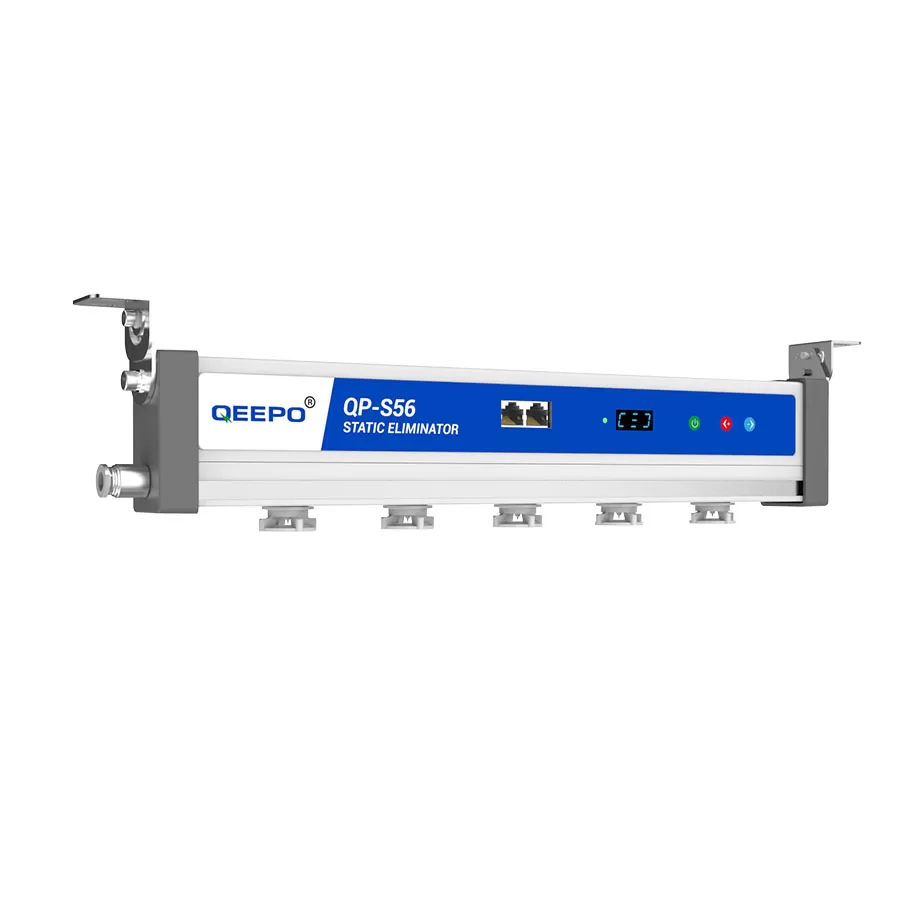

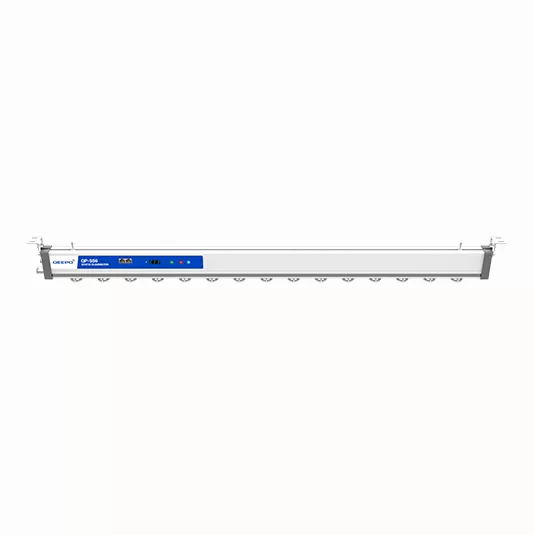

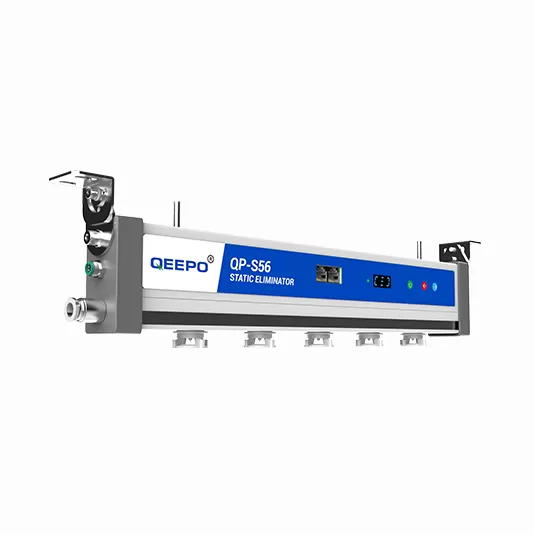

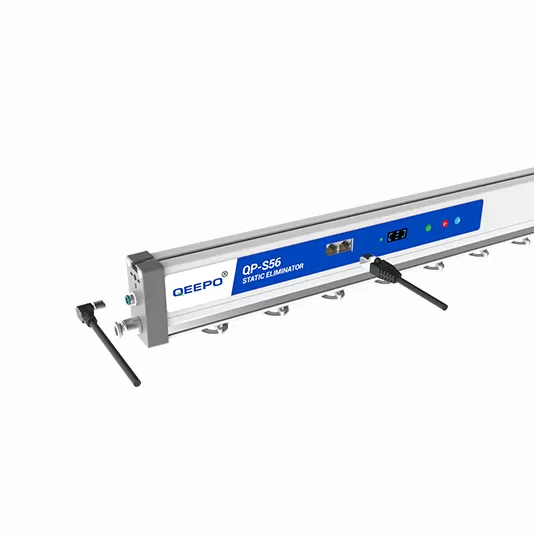

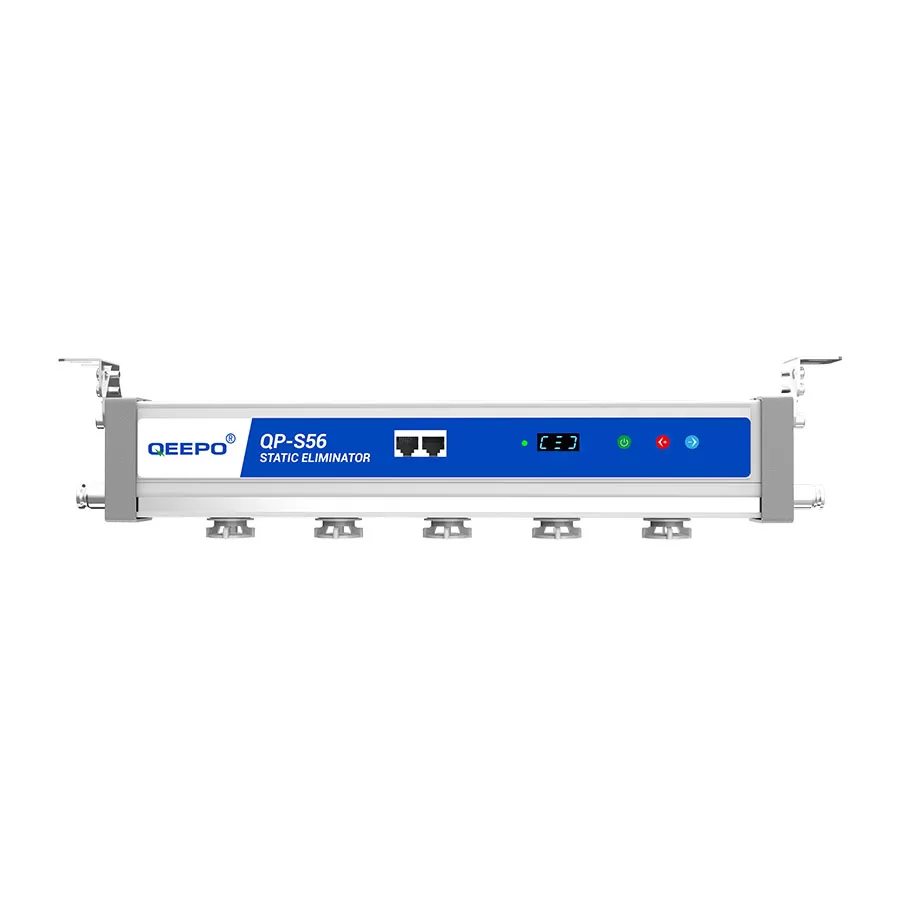

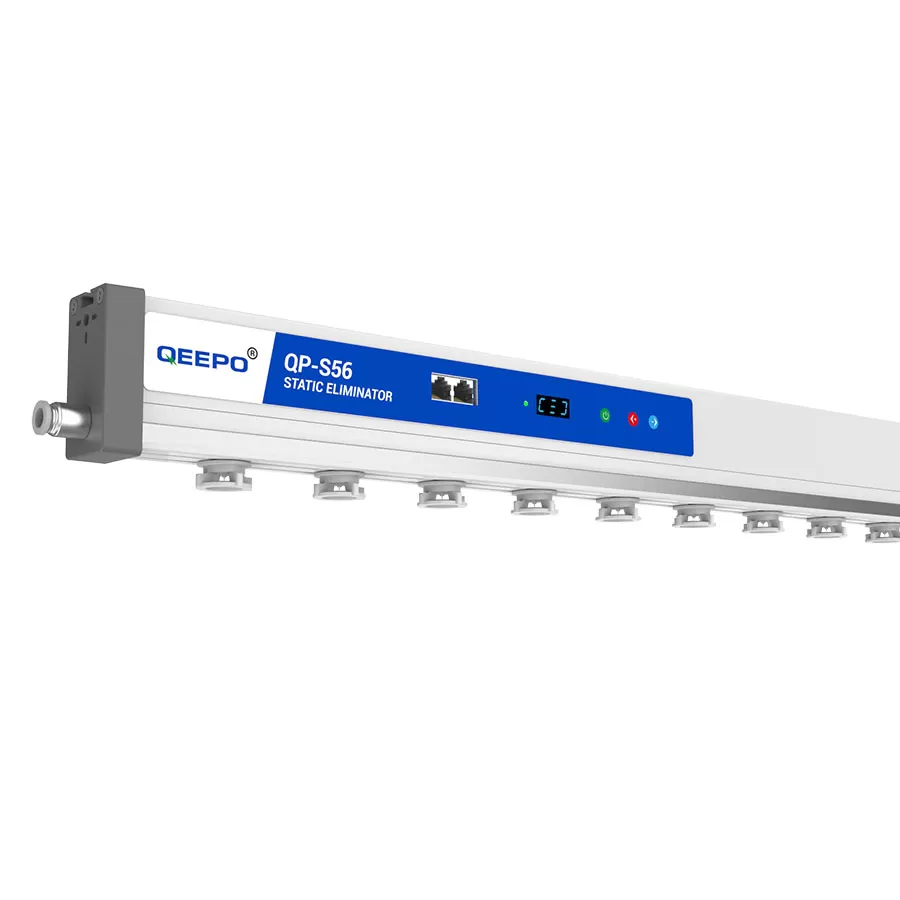

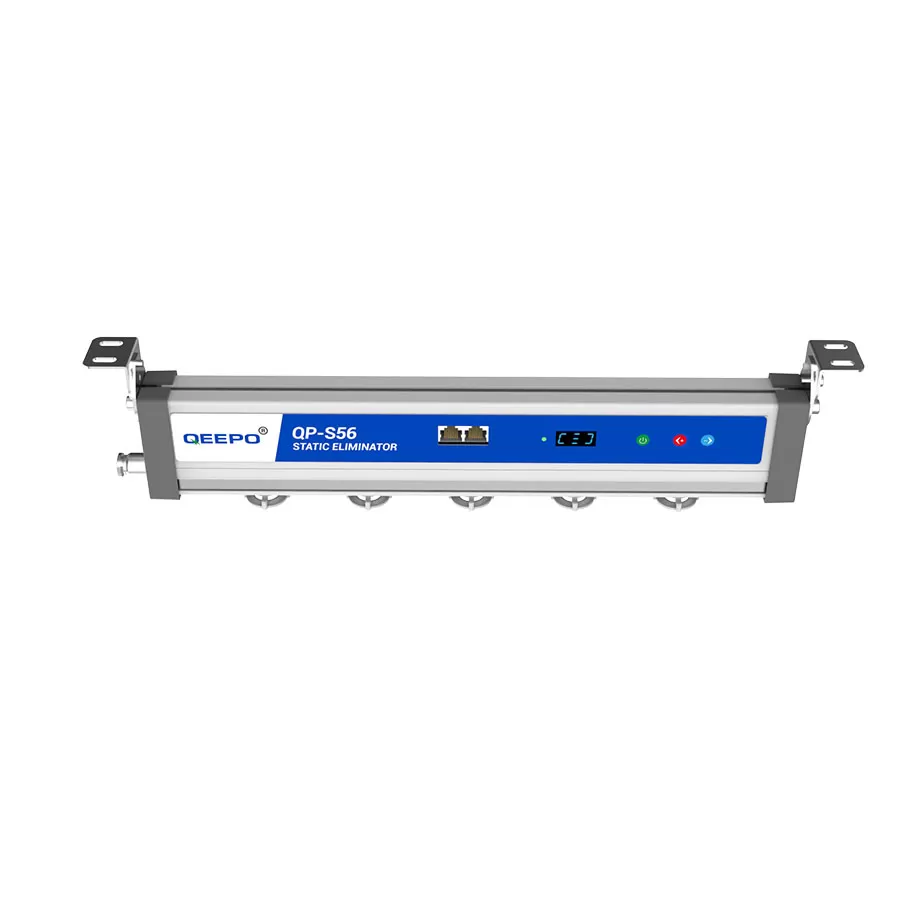

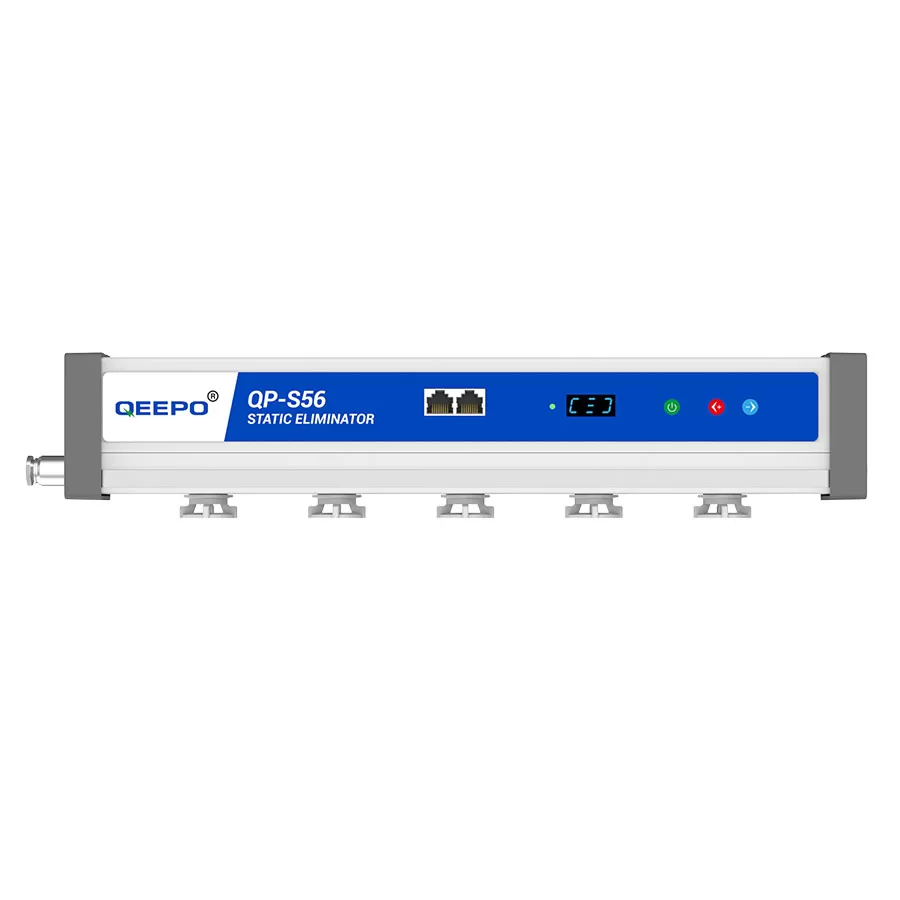

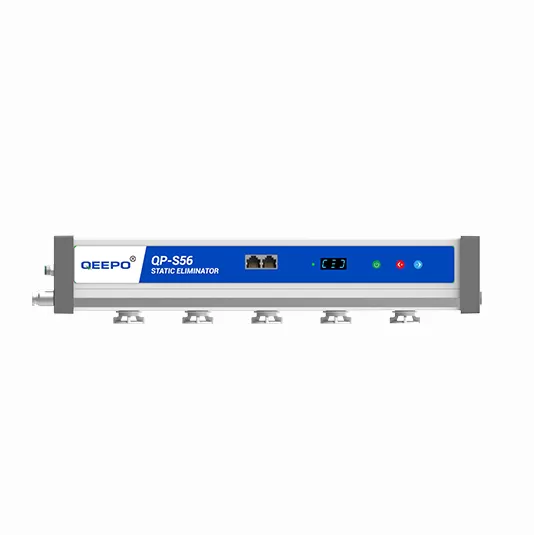

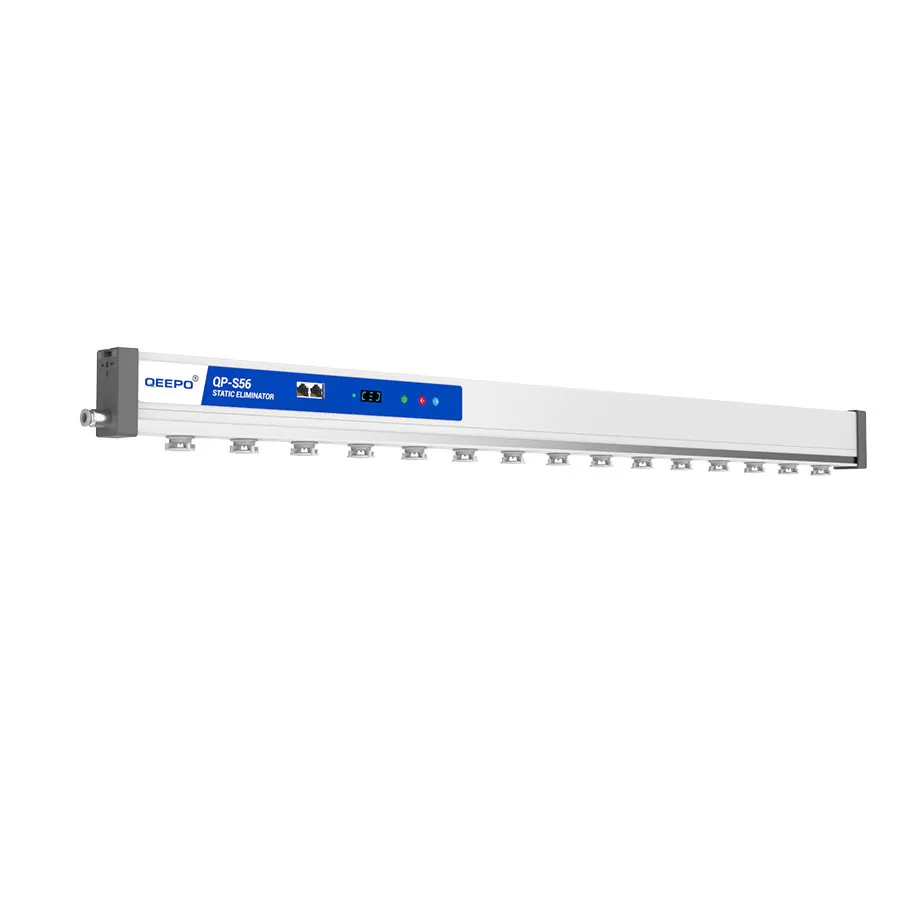

QP-S56 Static Eliminator

Stable performance achieved through modulation processing of working waveforms
Low disturbance voltage, using high voltage AC technology to reduce the fluctuation of high-voltage circuits themselves
Ionic balance remains stable over long-term use

Get a Quote

Specification

Performance Advantages of QP-S56 Static Eliminator

lon balance ≤+30V

Electrode optional W and Sl

Optional air nozzle large flow and Provincial traffic

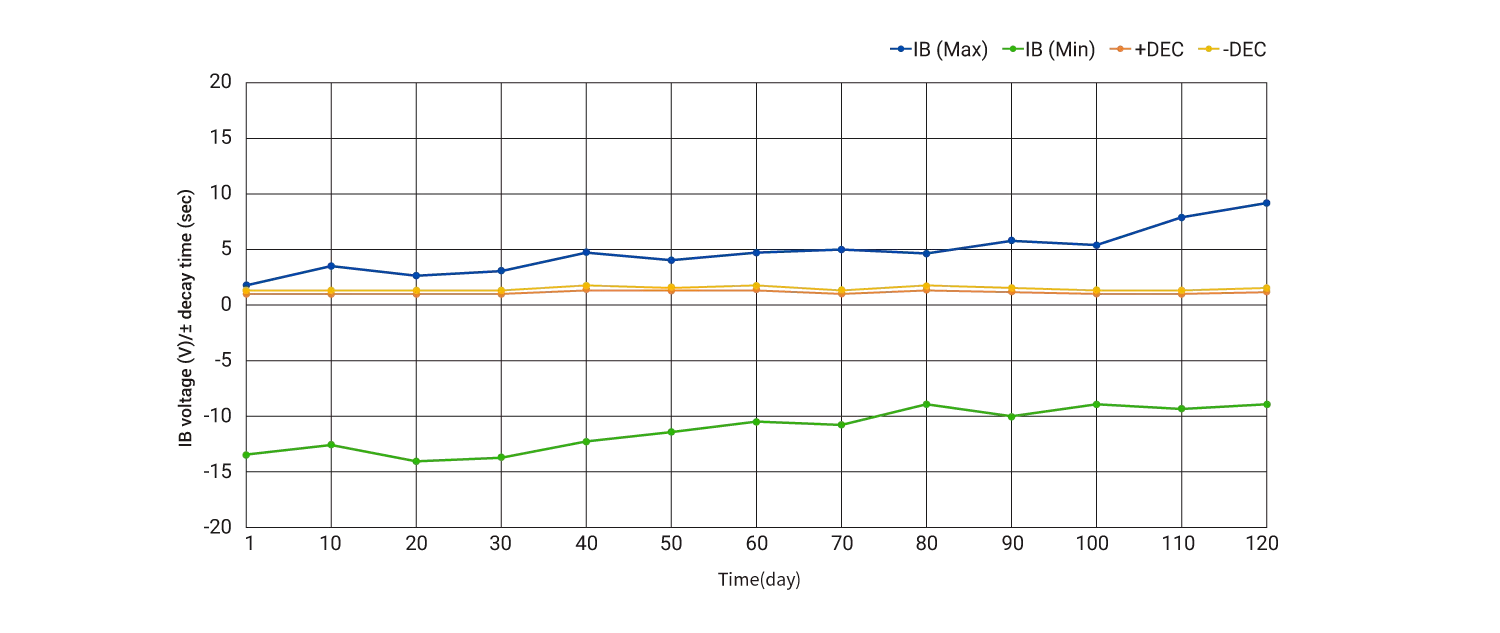

Ionic balance remains stable over long-term use
Avoiding the risk of unexpected shocks at work

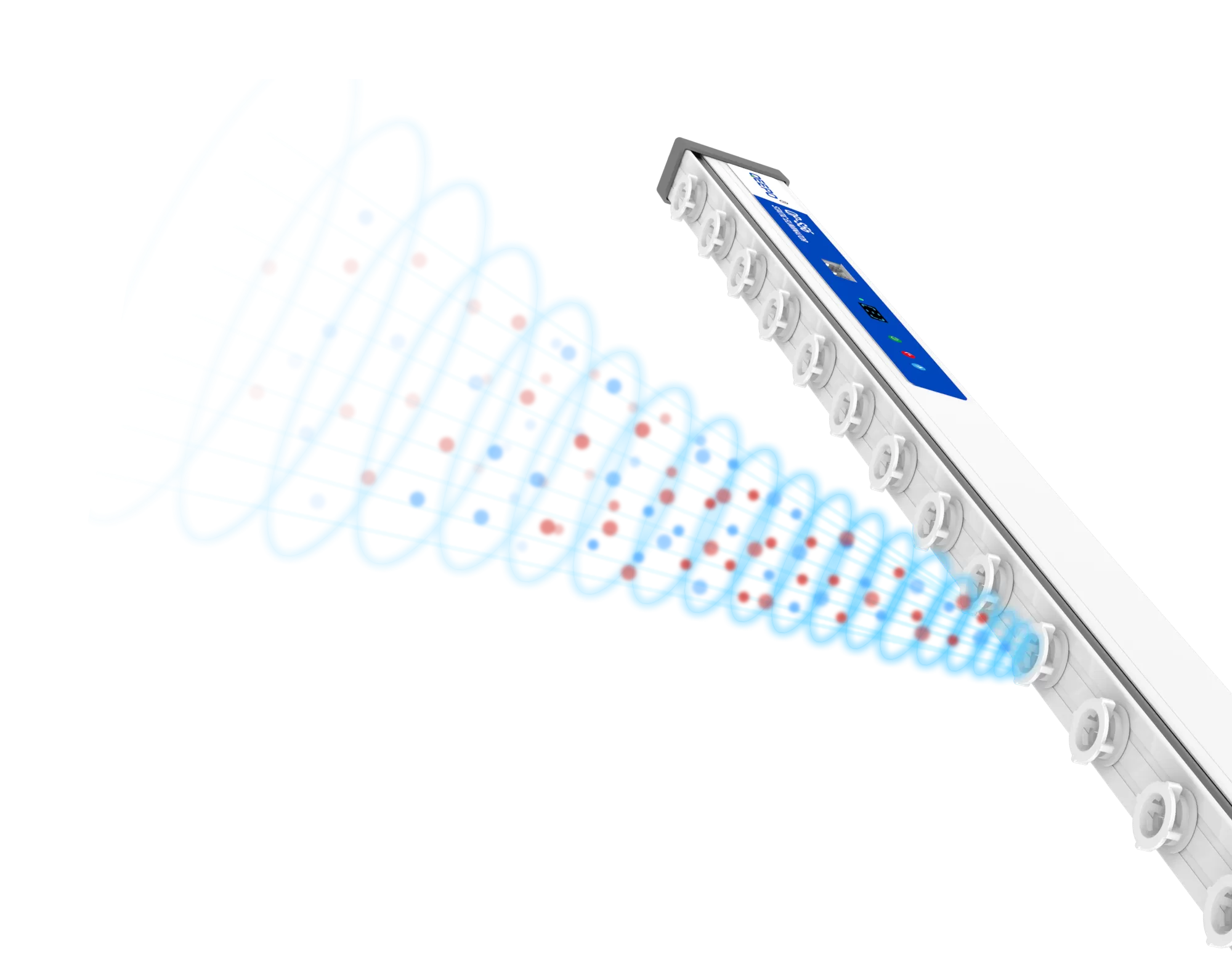

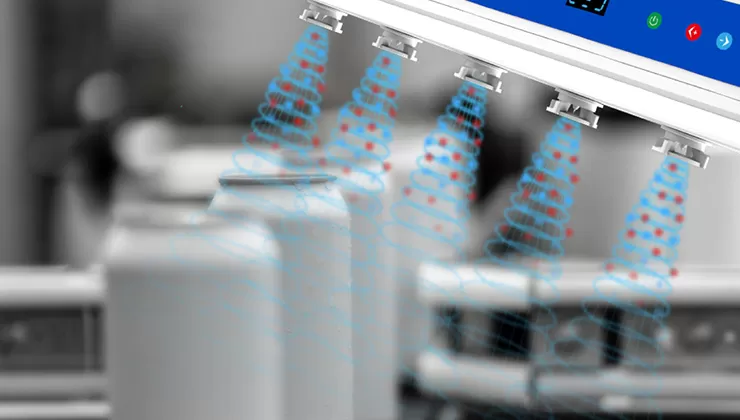

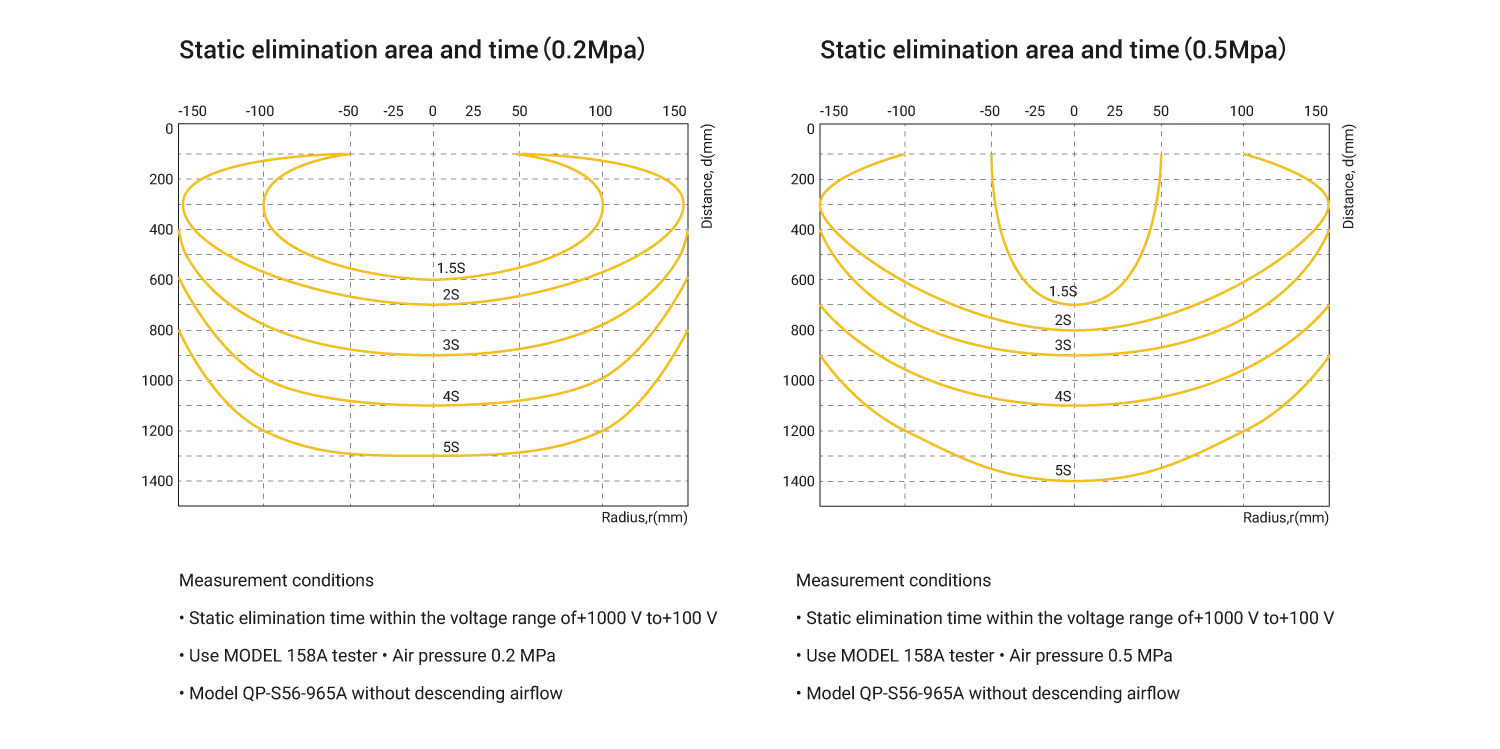

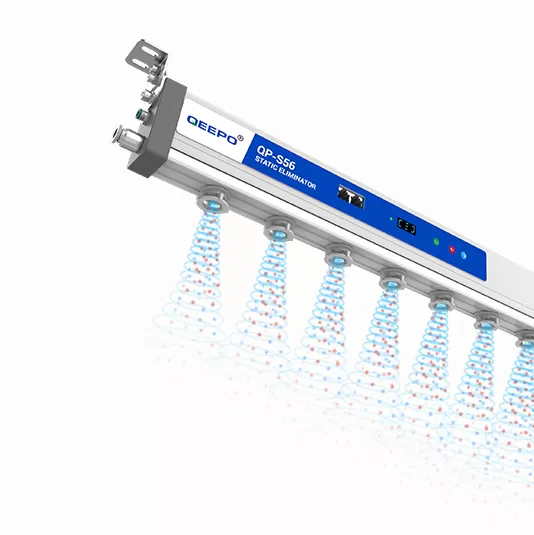

Quickly eliminate static electricity
Large scale static electricity removal

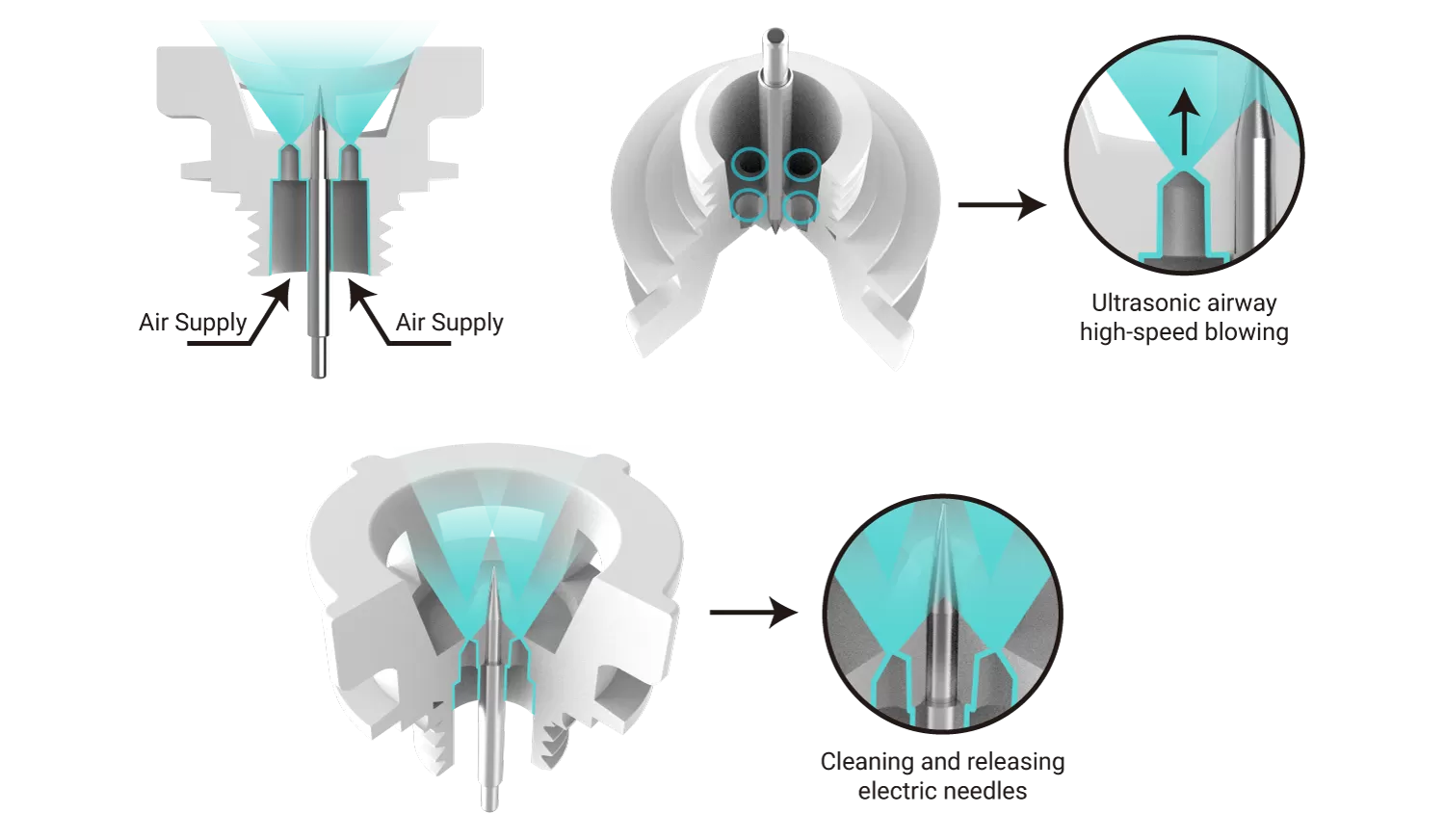

Adopting a high flow nozzle (4 Holes)
Can eliminate static electricity at high speed

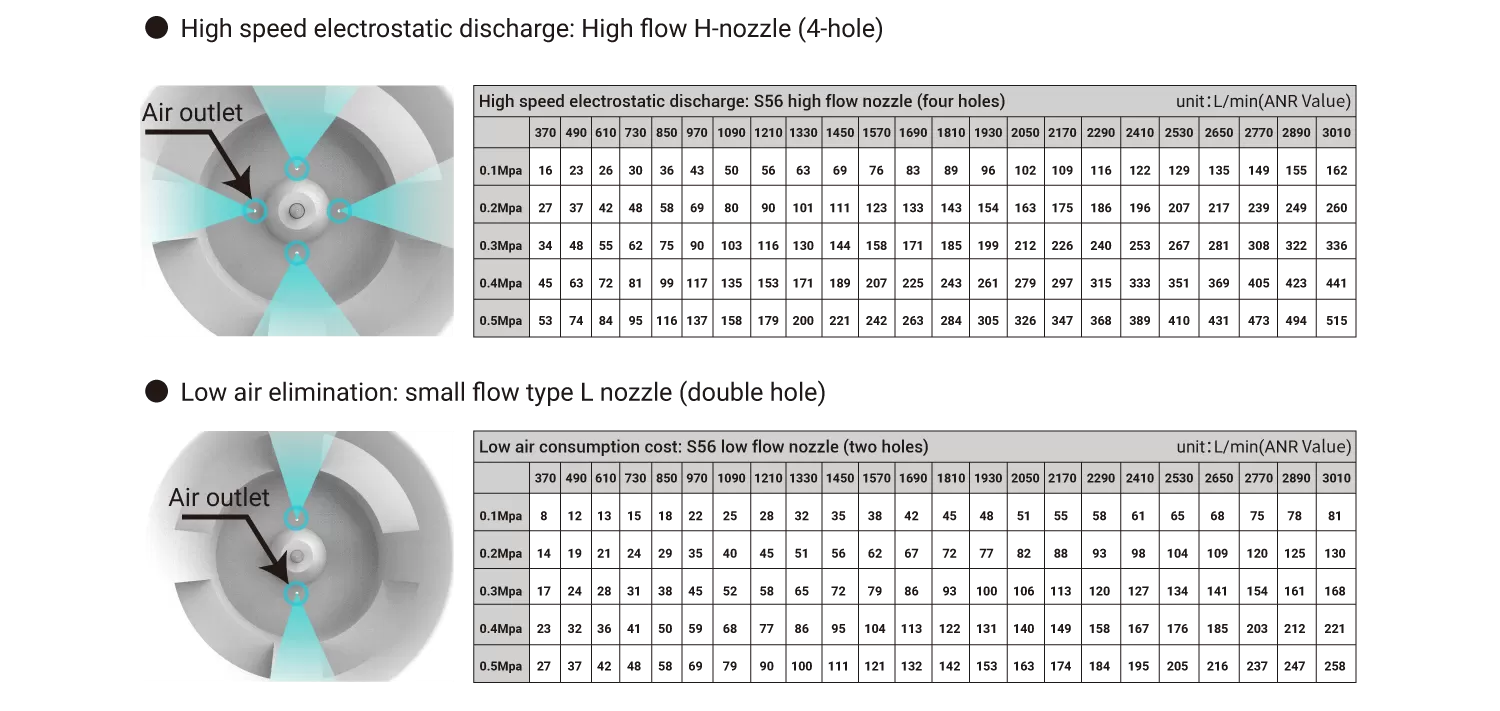

High speed electrostatic discharge & Low air elimination

High speed electrostatic discharge: High flow H-nozzle (4-hole)

Low air elimination: small fow type L nozzle (double hole)


Low disturbance voltage

Using AC technology to reduce the self-fluctuation of high-voltage circuits

To outperform other static eliminator manufacturers, Qeepo makes the positive and negative ions generated by ionization more balanced and the voltage swing smaller. Minimize the impact of the generated ions on the surface of the object.

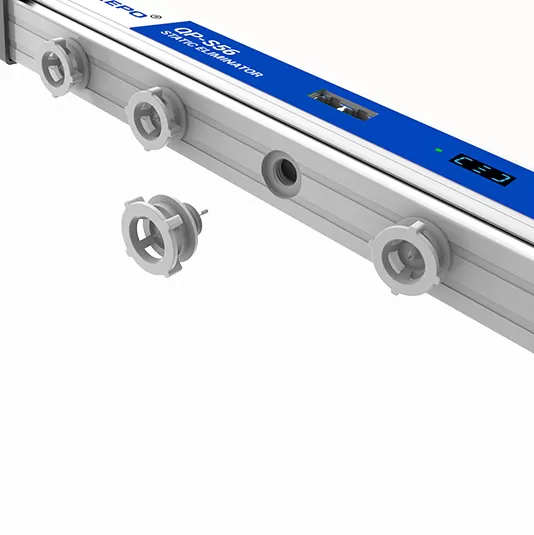

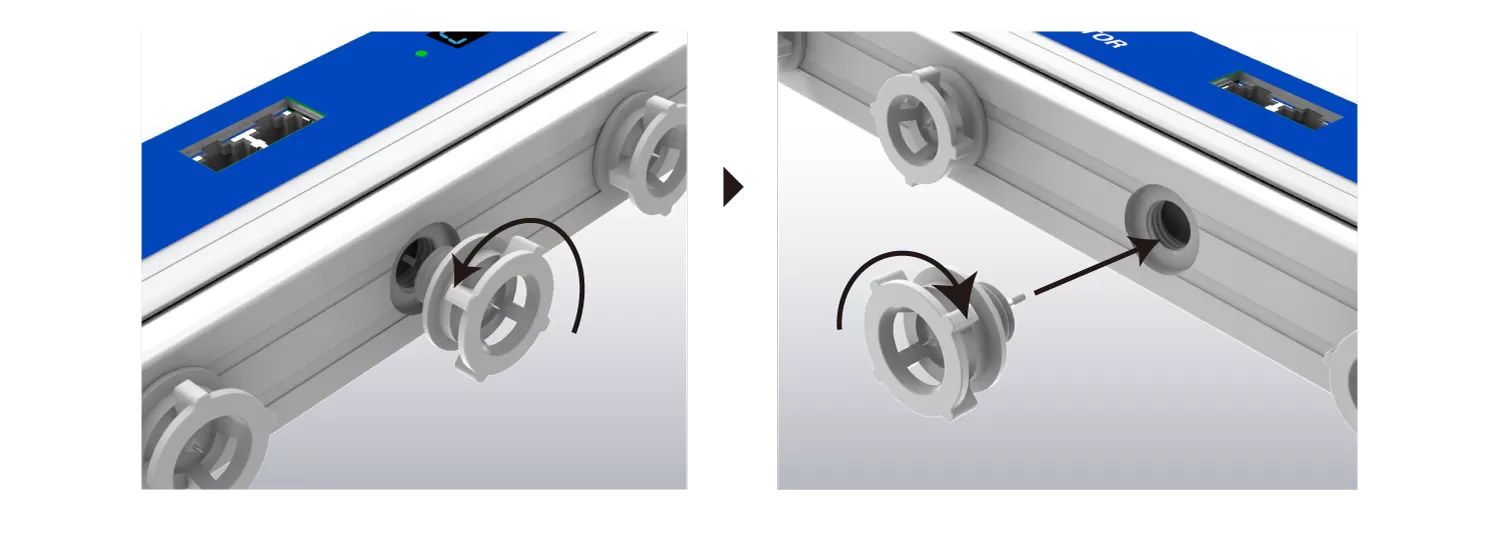

Discharge electrode (Replaceable)

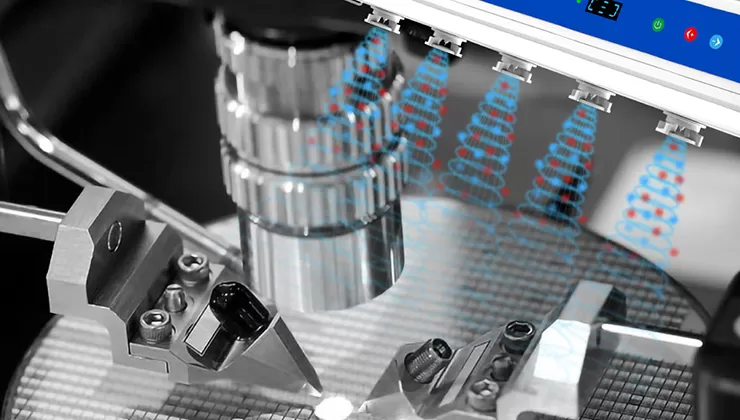

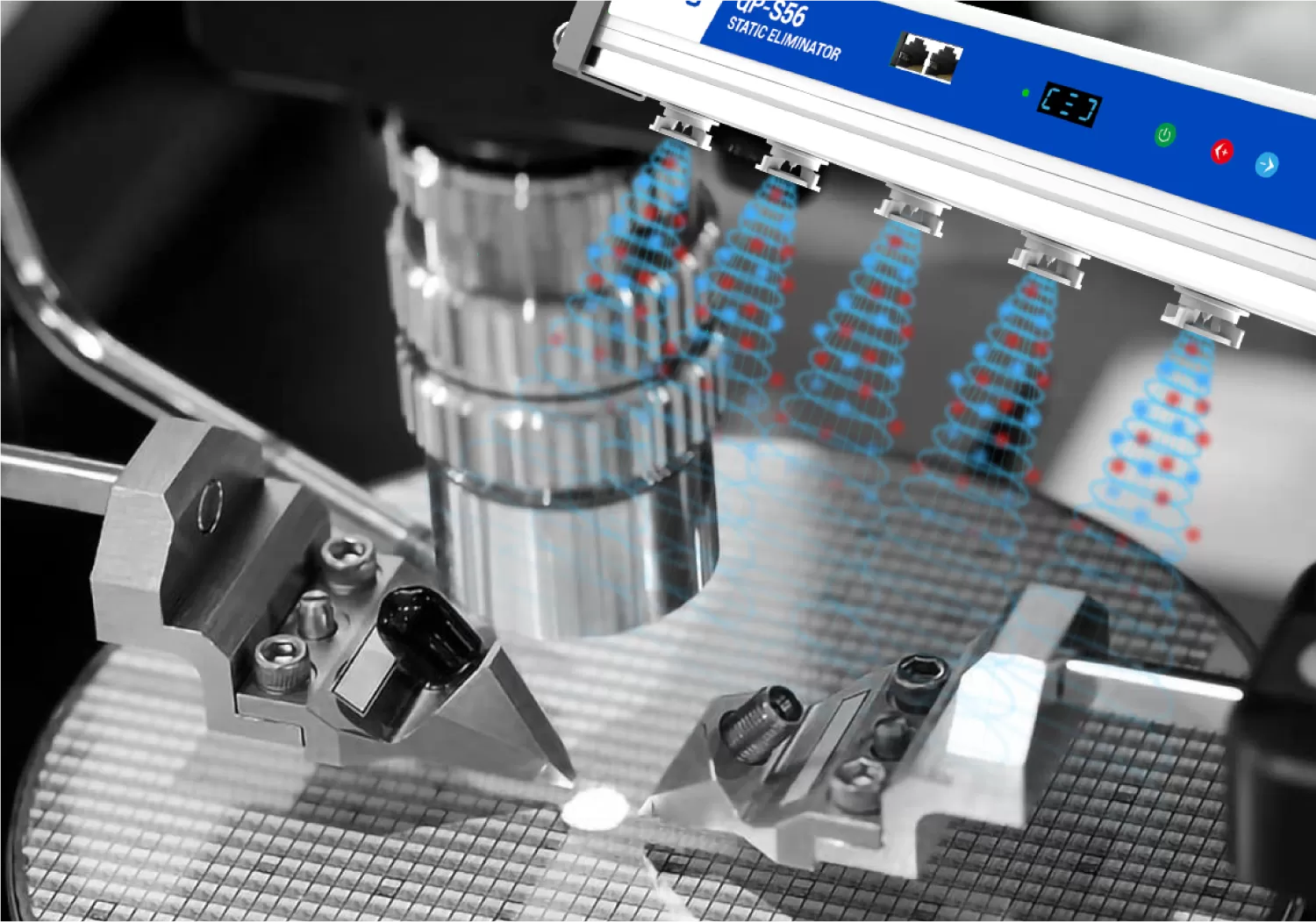

[Standard tungsten] Recommended use of silicon needles in thesemiconductor field

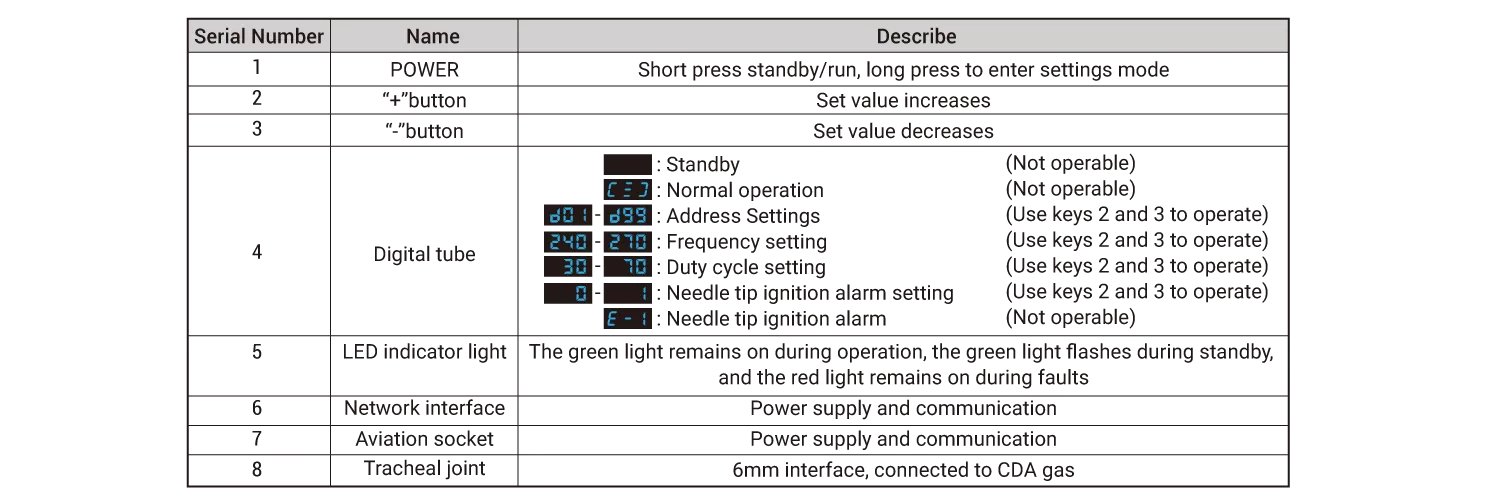

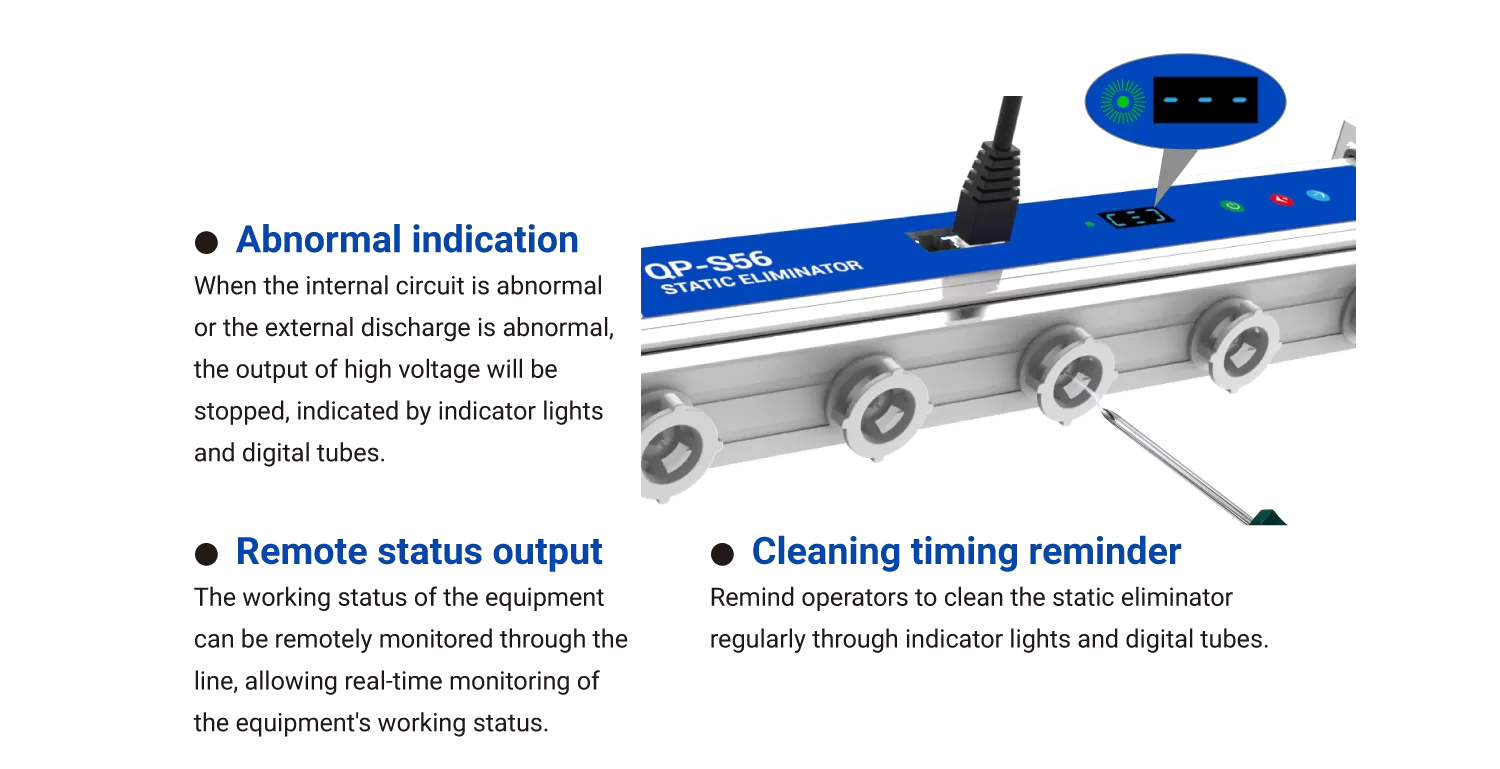

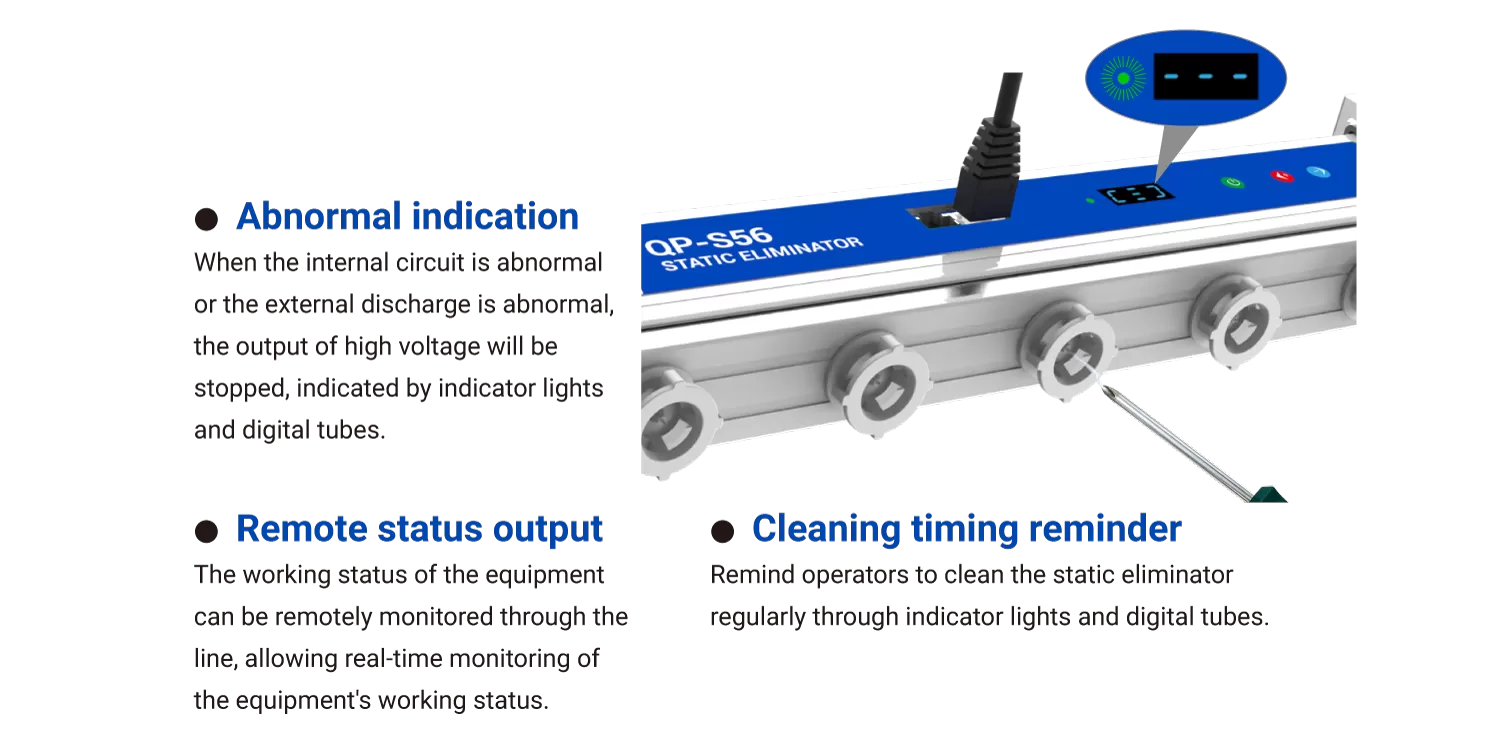

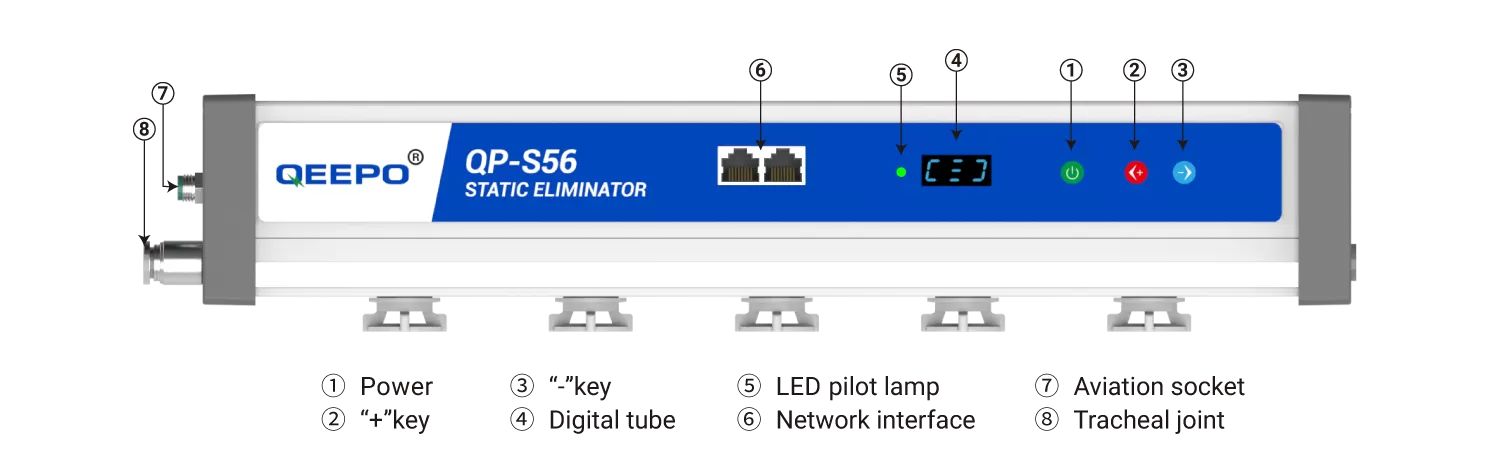

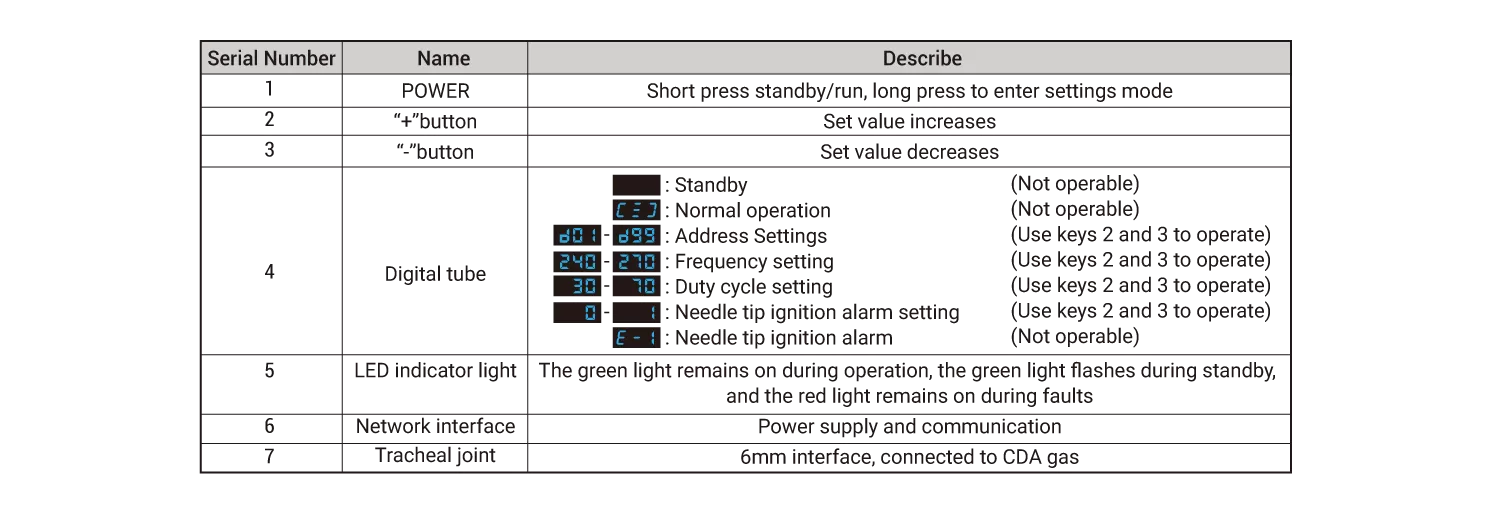

Visualization of work status [Real-time Monitoring
Prompt through indicator lights and digital display


Visualization of work status


Complies with international standards
Essential certification identification for products

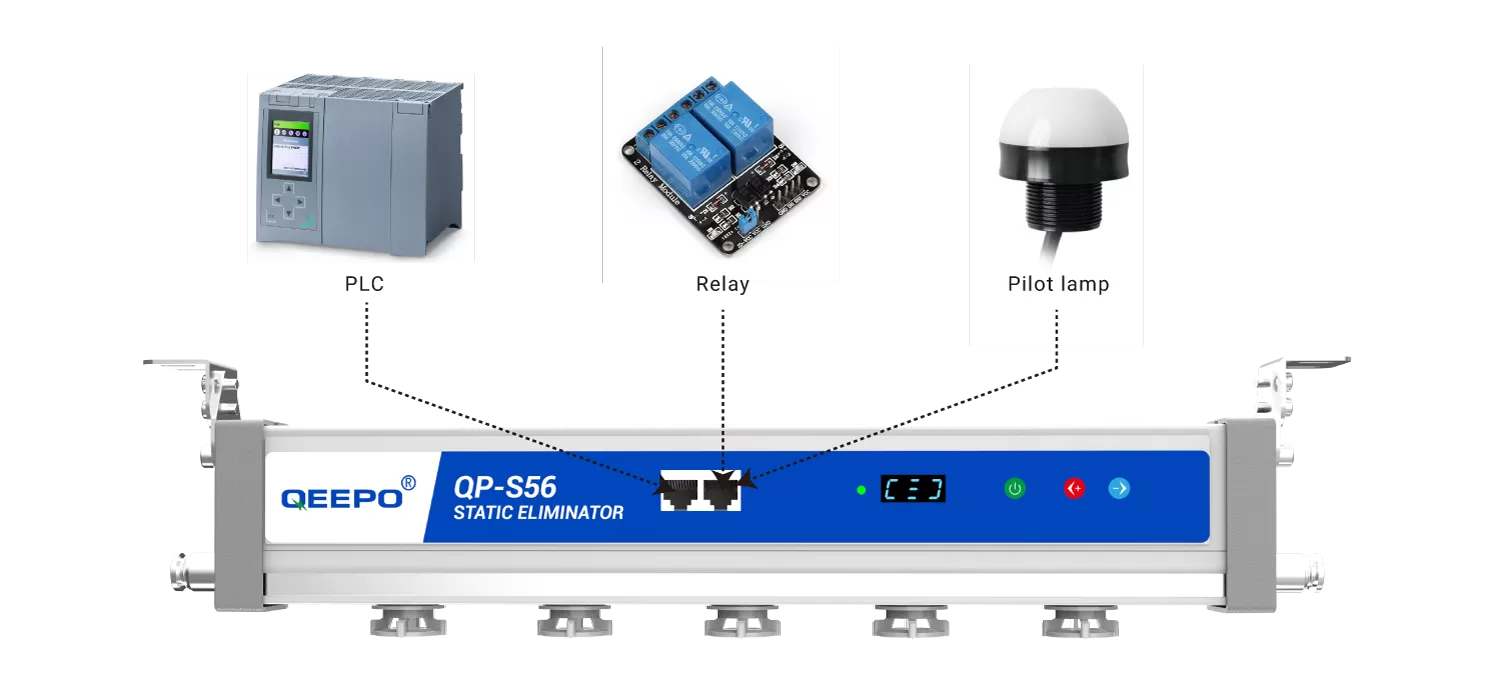

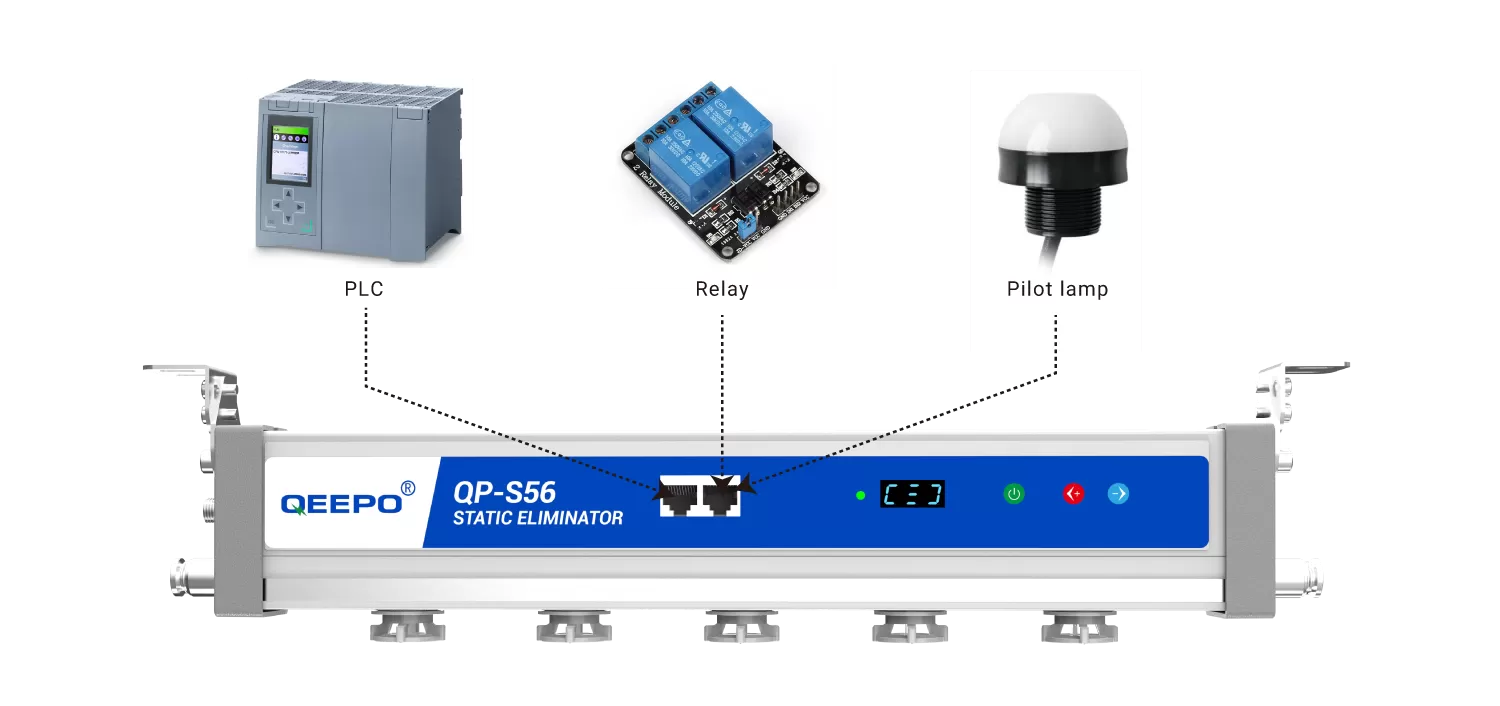

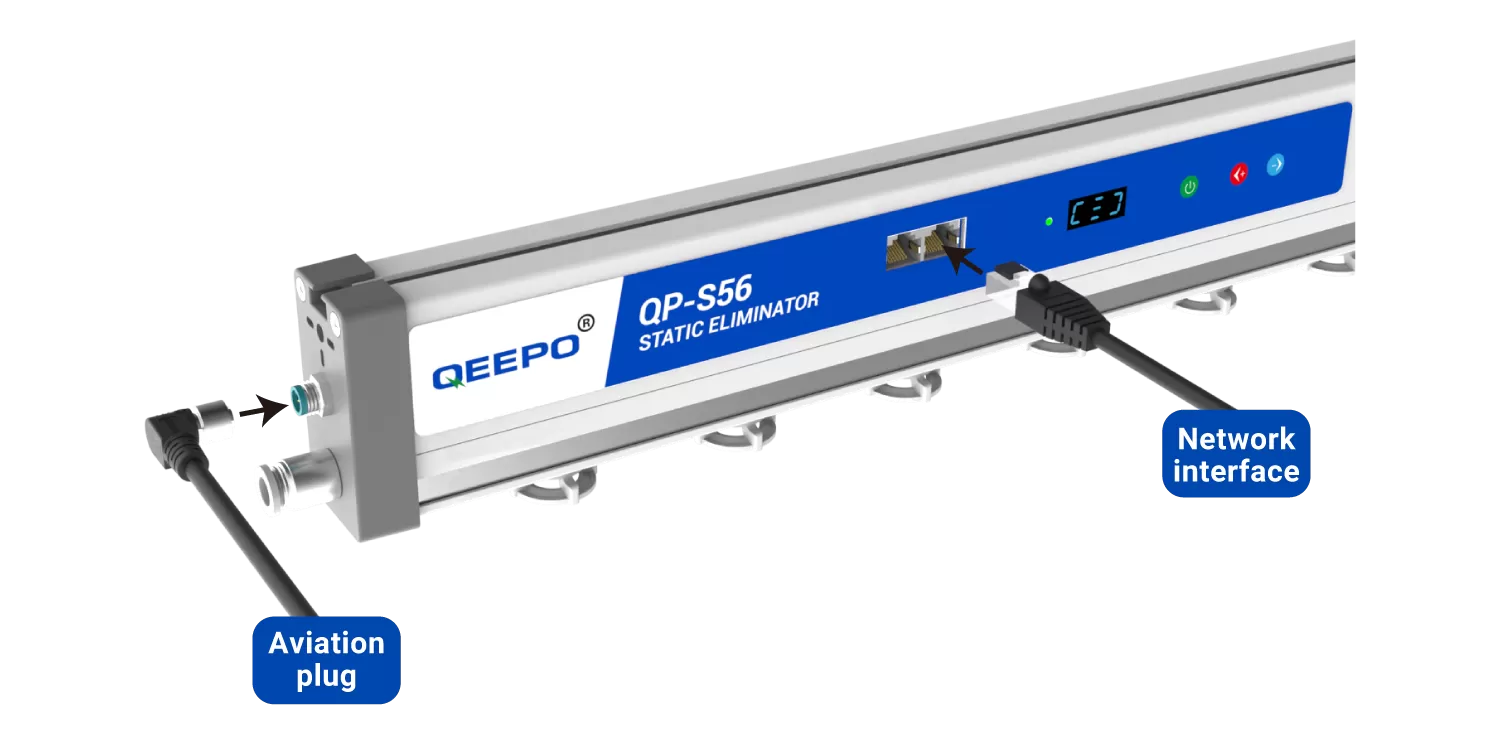

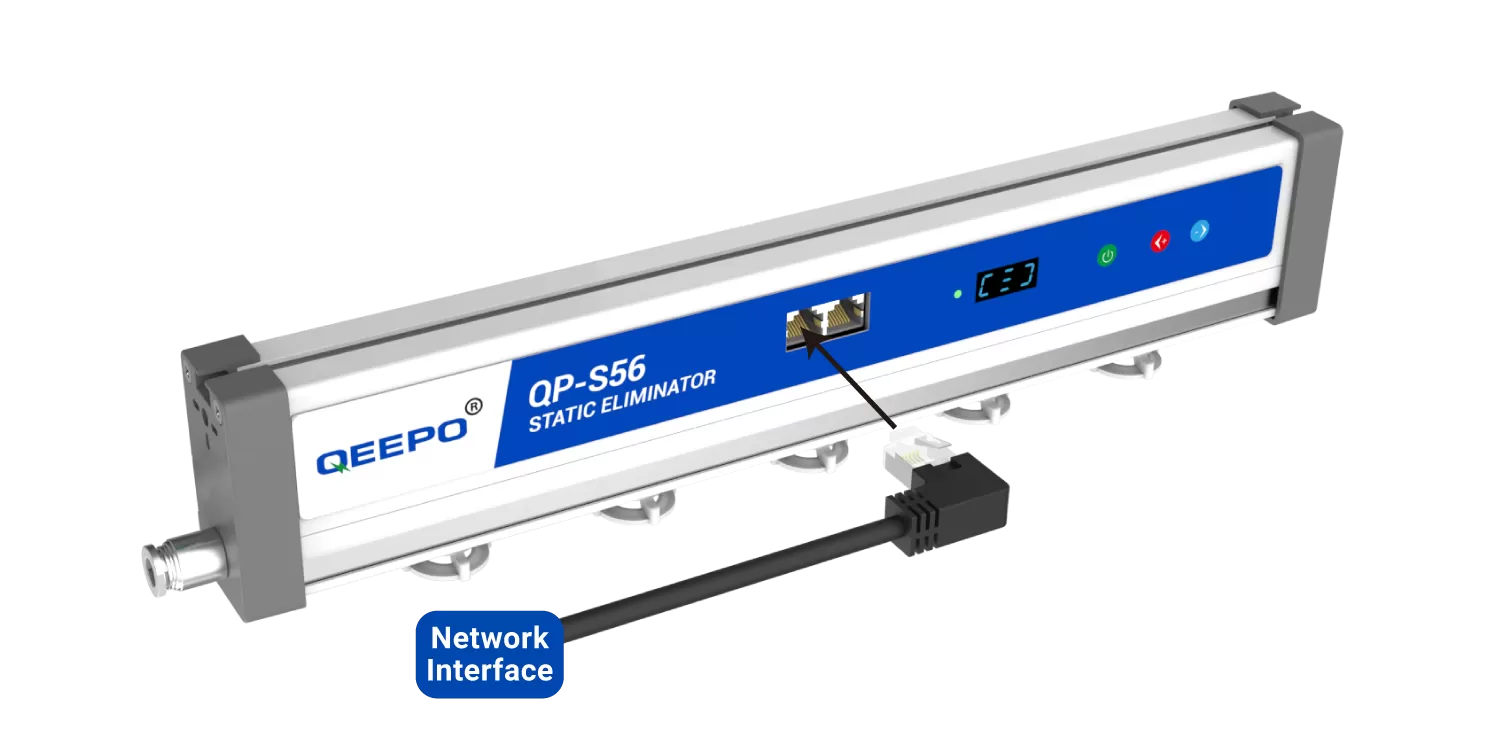

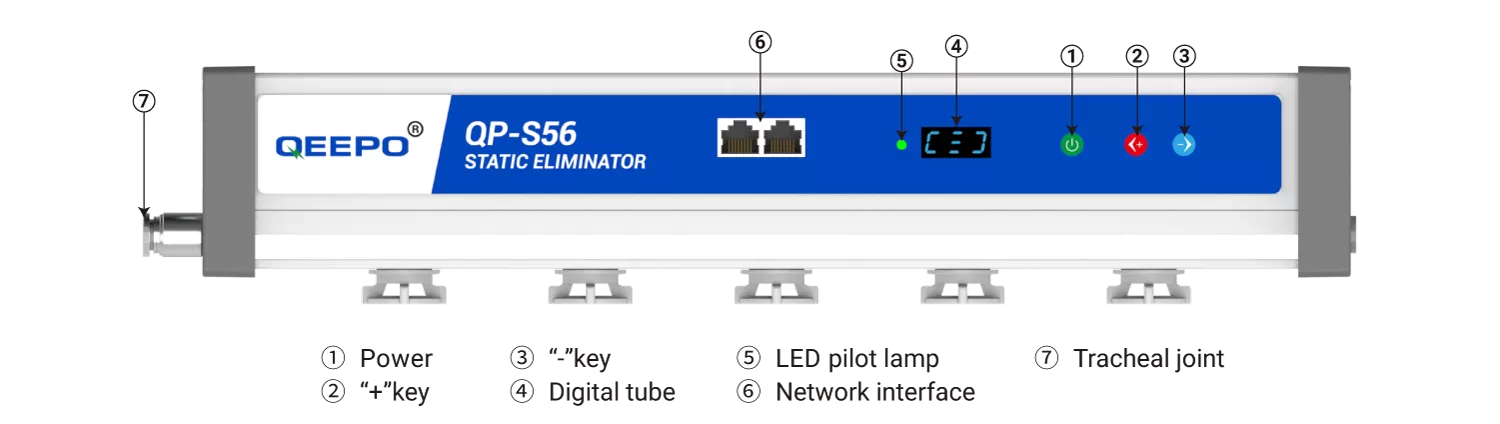

Supports two input methods

Network port and aviation plug


Transmittable

Communication

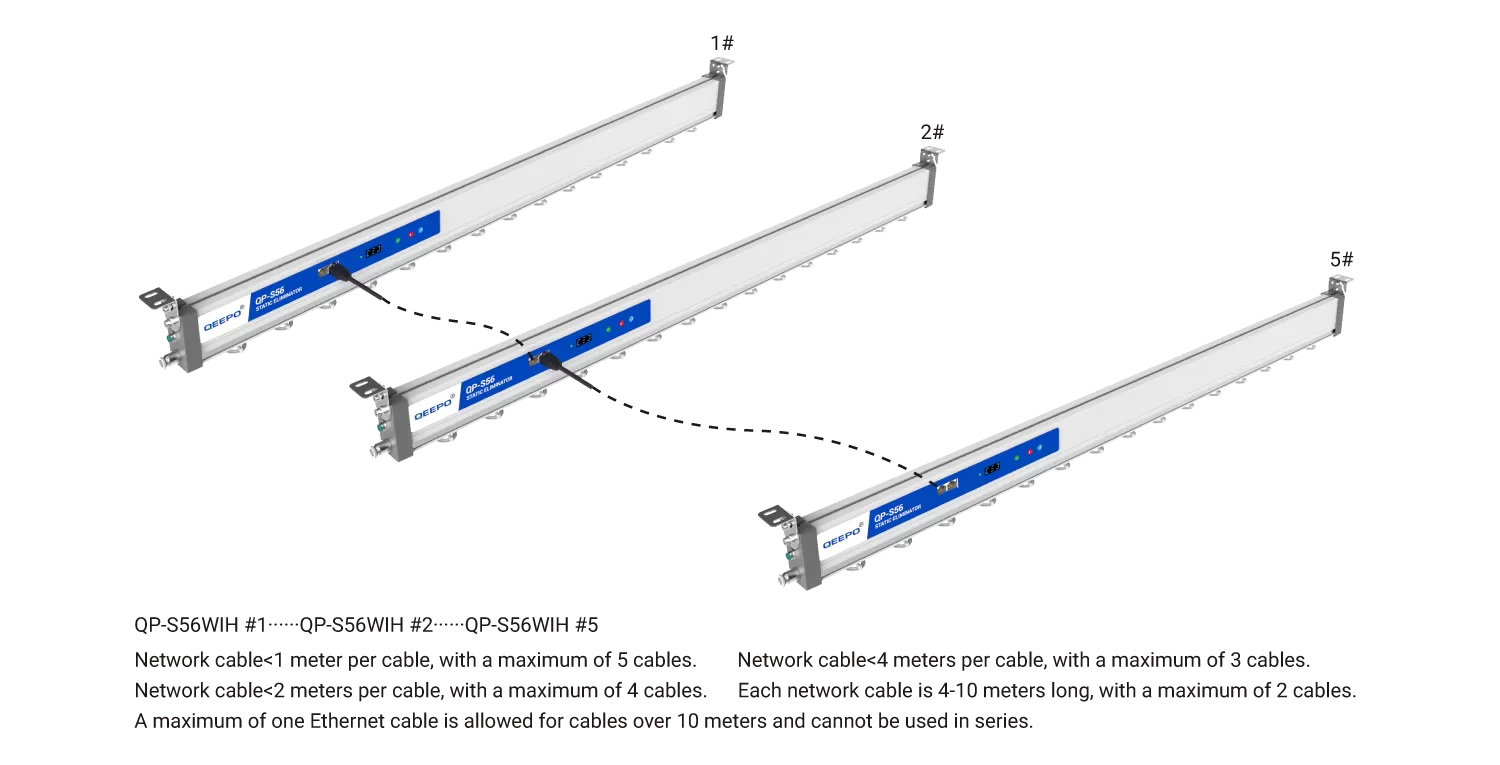

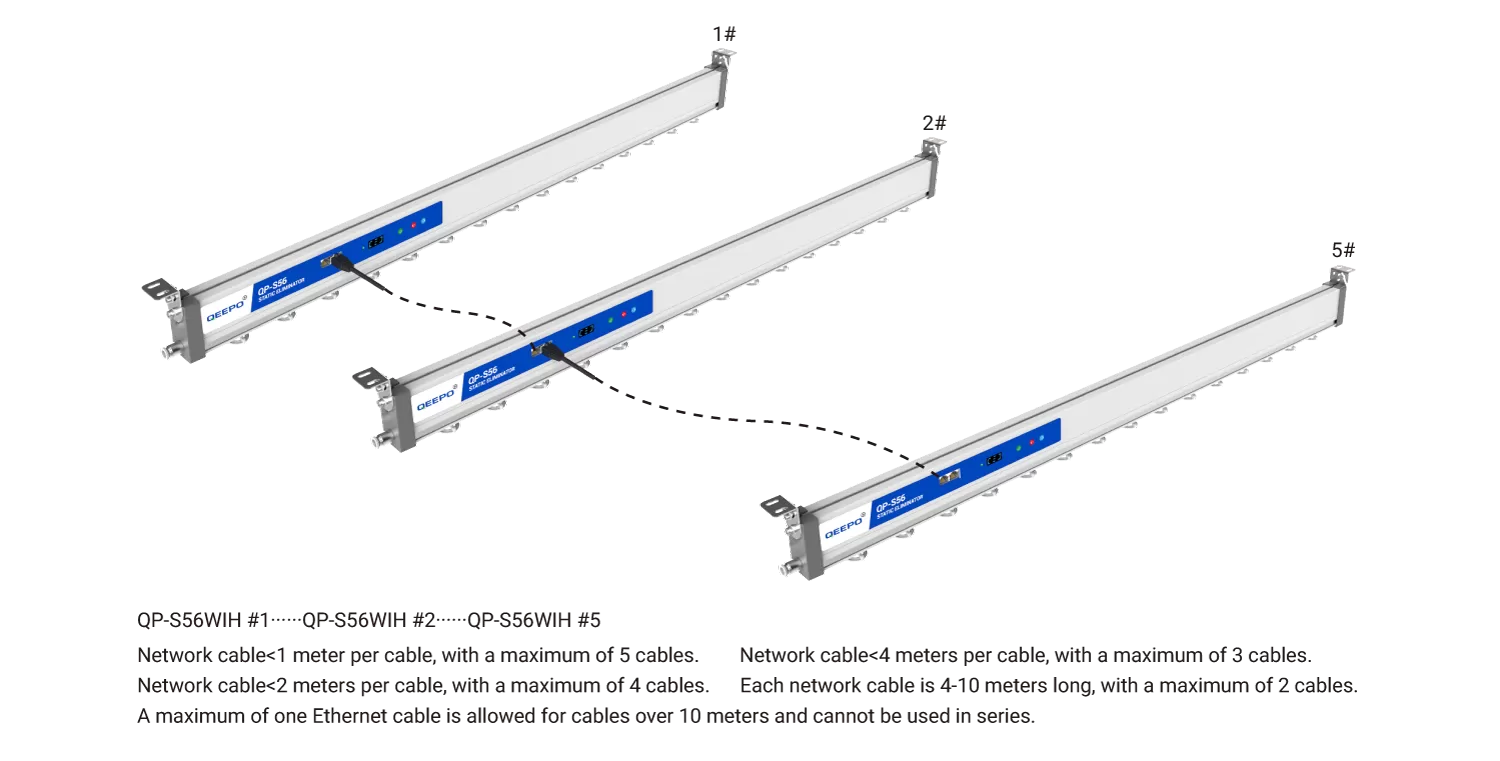

Can be connected in series

DC24V input, low voltage wiring, safe and reliable use.

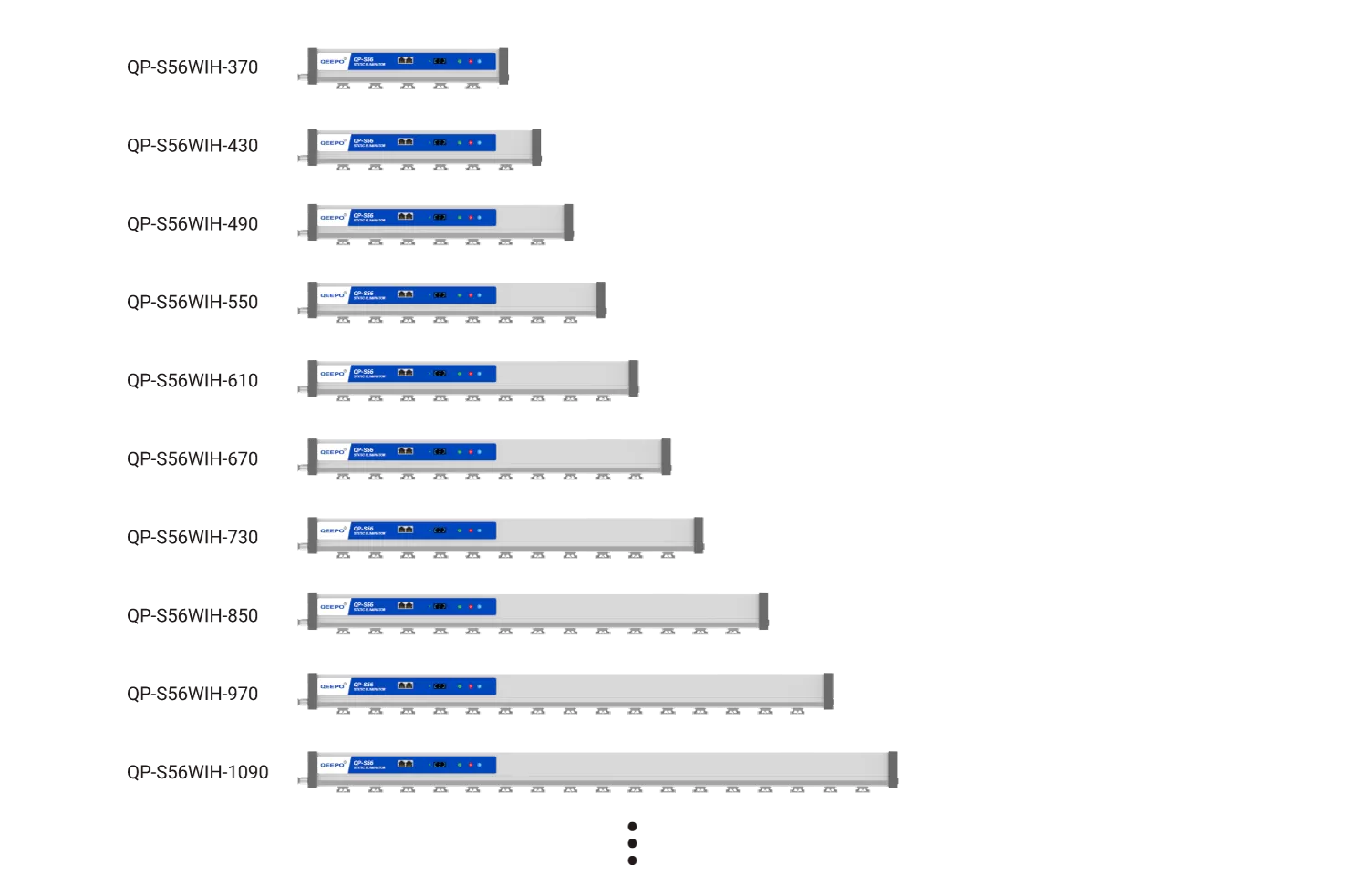

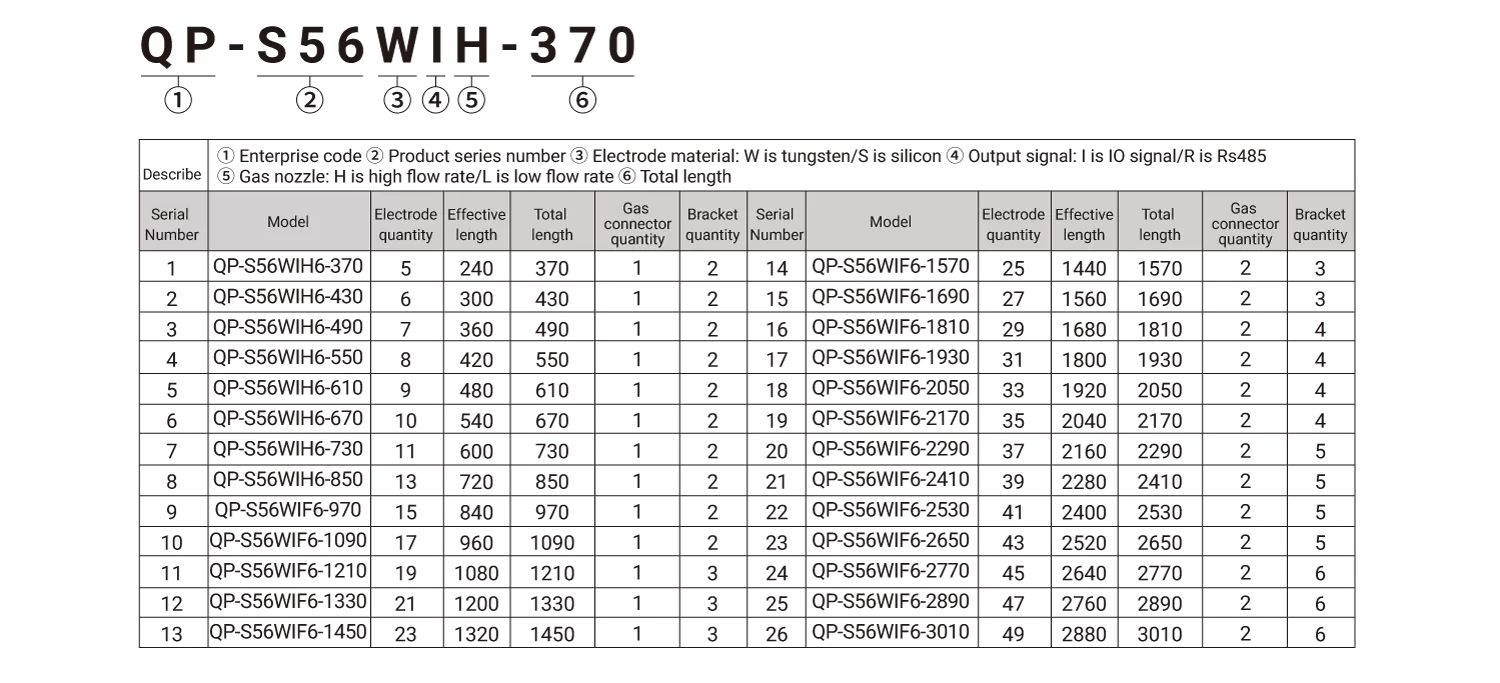

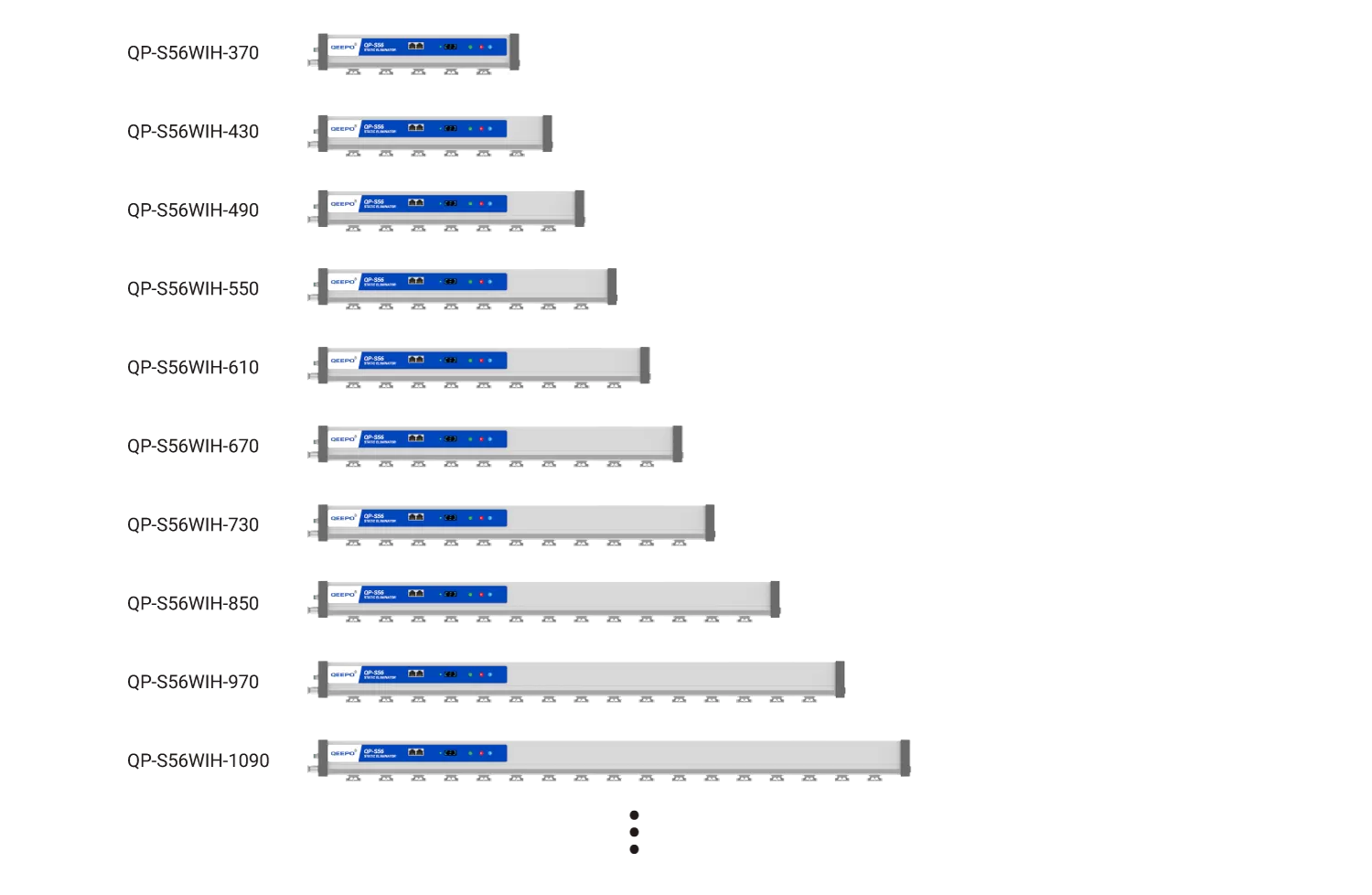

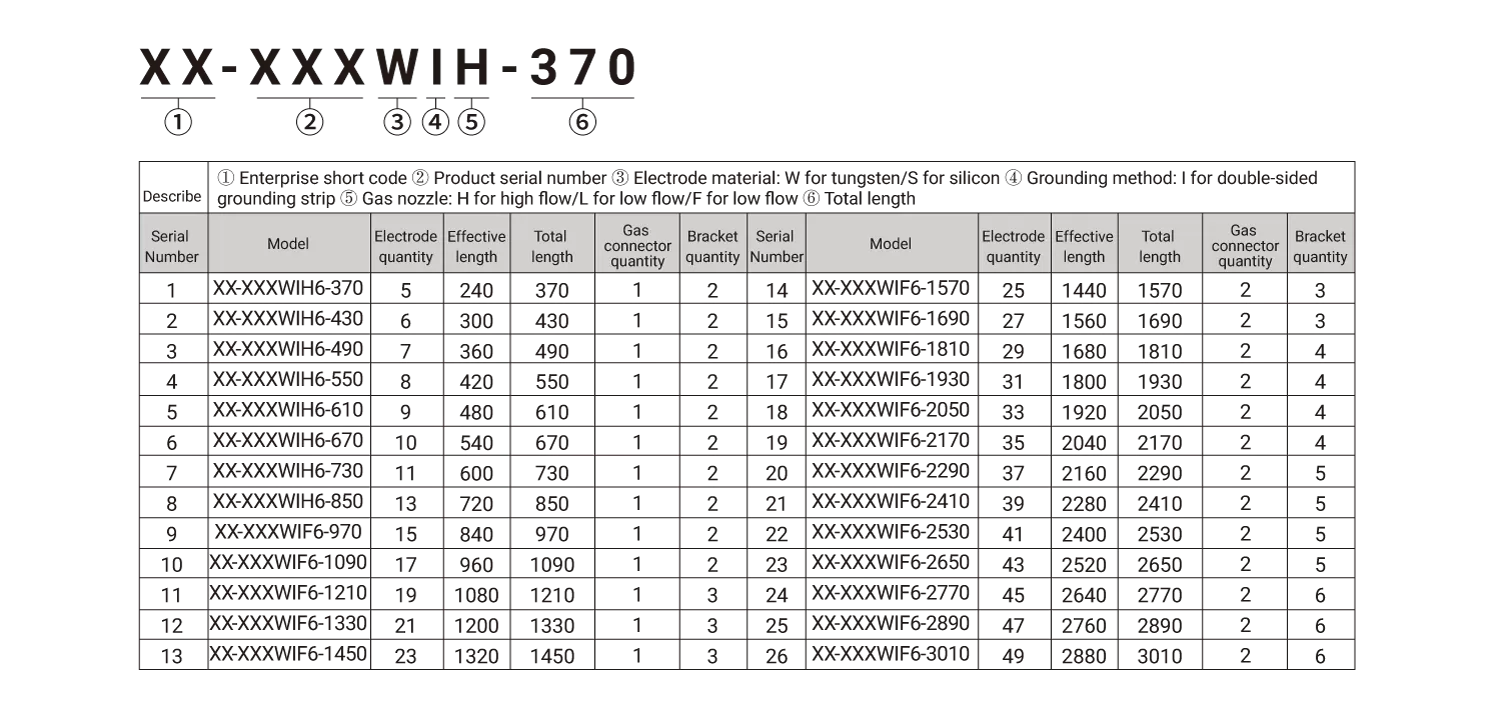

Product lineup

Specification


Specification

Specification of QP-S56 Static Eliminator

model	QP-S56
Ion generation method	Corona discharge method-AC
INPUT VOLTAGE	24～36 V DC ±10％
Working current	MAX 300mA
power consumption	MAX 6W
Output voltage	12kV VPP
account for	30-70%
Electrode material	Tungsten (standard)
Electrode material	Si (optional)
Discharge component	replaceable
Ionic balance * 1	±30V
work distance	100-1500mm
Total length that can be processed	370-3010mm
Remote control	Remote start stop
Output when abnormal	Low level contact signal
Communication protocol * 2	RS-485（MODBUS RTU）
Gas supply pressure range	0.1-0.5Mpa (CDA, no condensation)
Gas joint thread	PT1/8
Tracheal size	Φ 6 (optional Φ 8)
major function	Status indication, abnormal protection, cleaning reminder, remote control
Ozone concentration	≤0.05ppm
operation temperature	0～40℃
Working humidity	35% to 85% RH (no condensation)
1 The following adjustment test values Test distance 300mm, test pressure 0.2MPa, test temperature: (23 ± 3) ℃, test humidity: (50 ± 5)% 2 Optional functions
