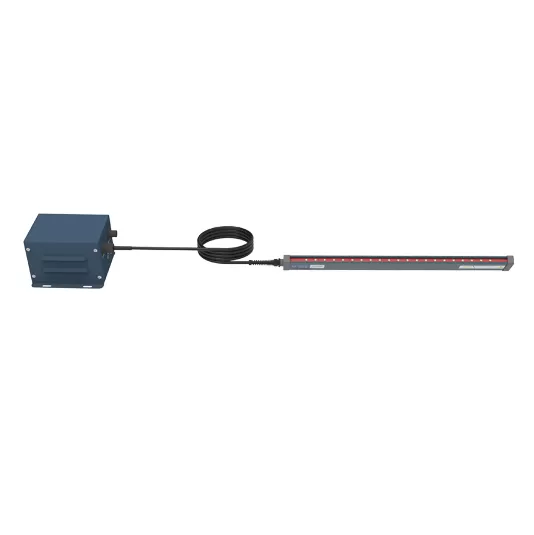

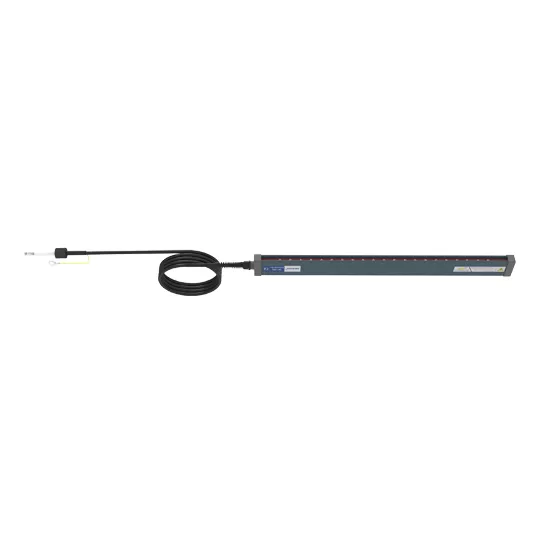

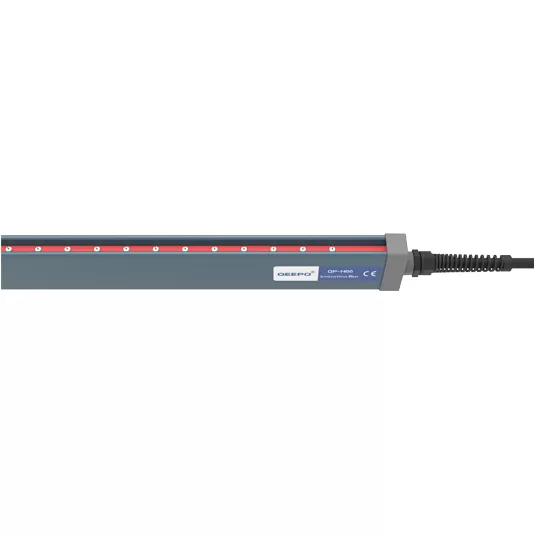

QP-H66 is an innovative electrostatic elimination device with a coupled current limiting structure design and high insulation composite materials. It has better safety performance and can be used in various hazardous areas with fast electrostatic elimination speed.
Get a Quote
PDF Download

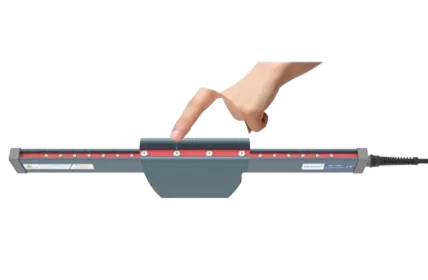

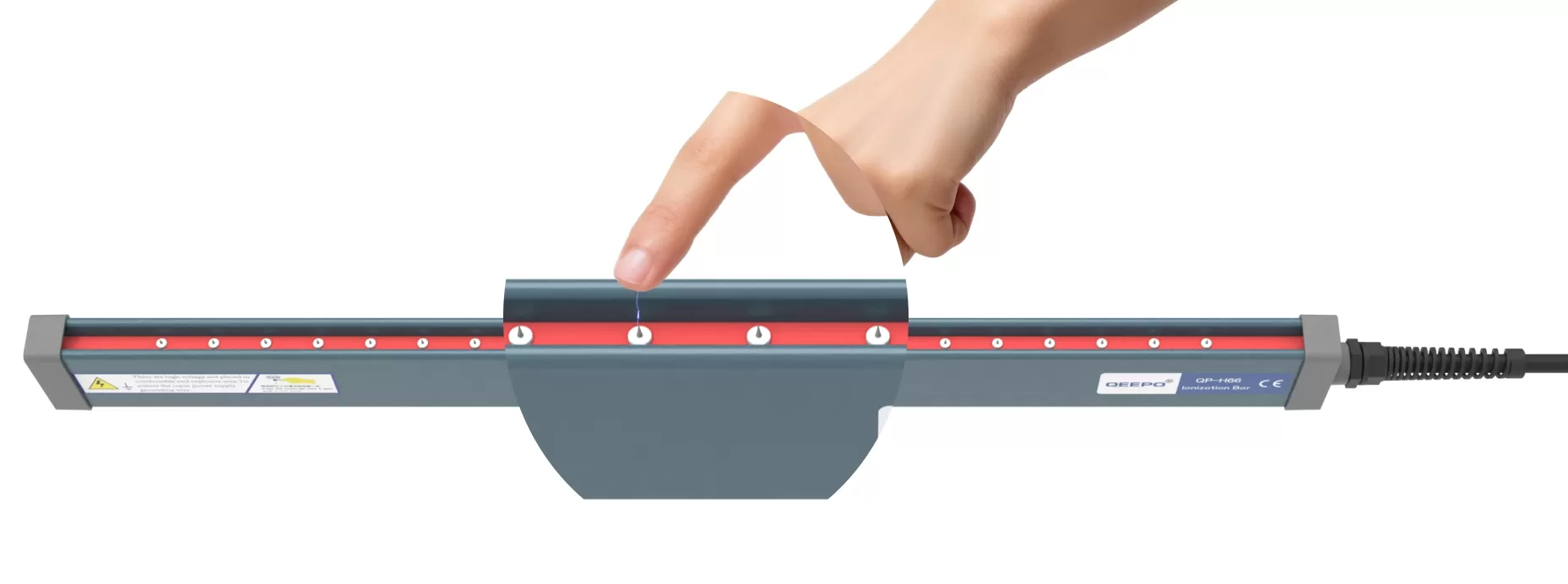

Anti Electric Shock Design
Internal coupling current limiting structure design,
anti electric shock design, will not cause discomfort to operators.

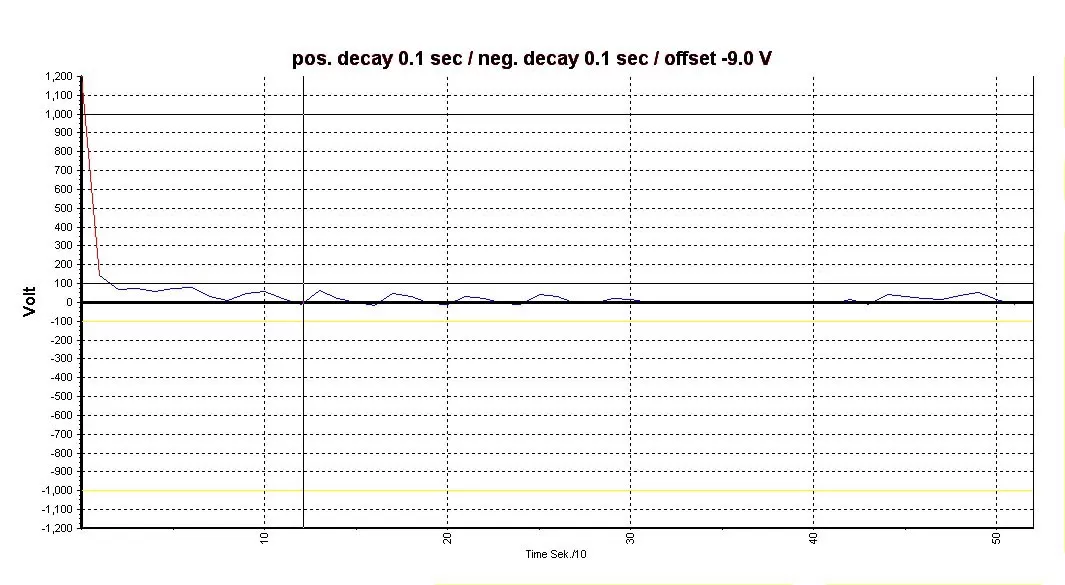

Fast Static Removal Speed
Excellent static removal performance with a static removal speed of ≤ 0.1s.
.webp)

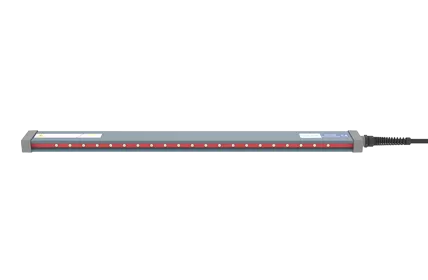

Safe Insulation
The exterior is made of high insulation composite materials and designed with a non-metallic structure.

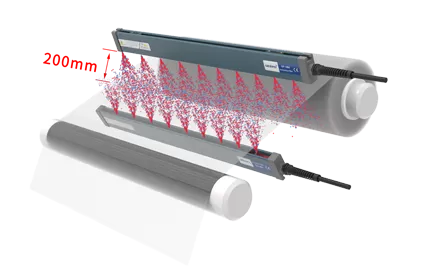

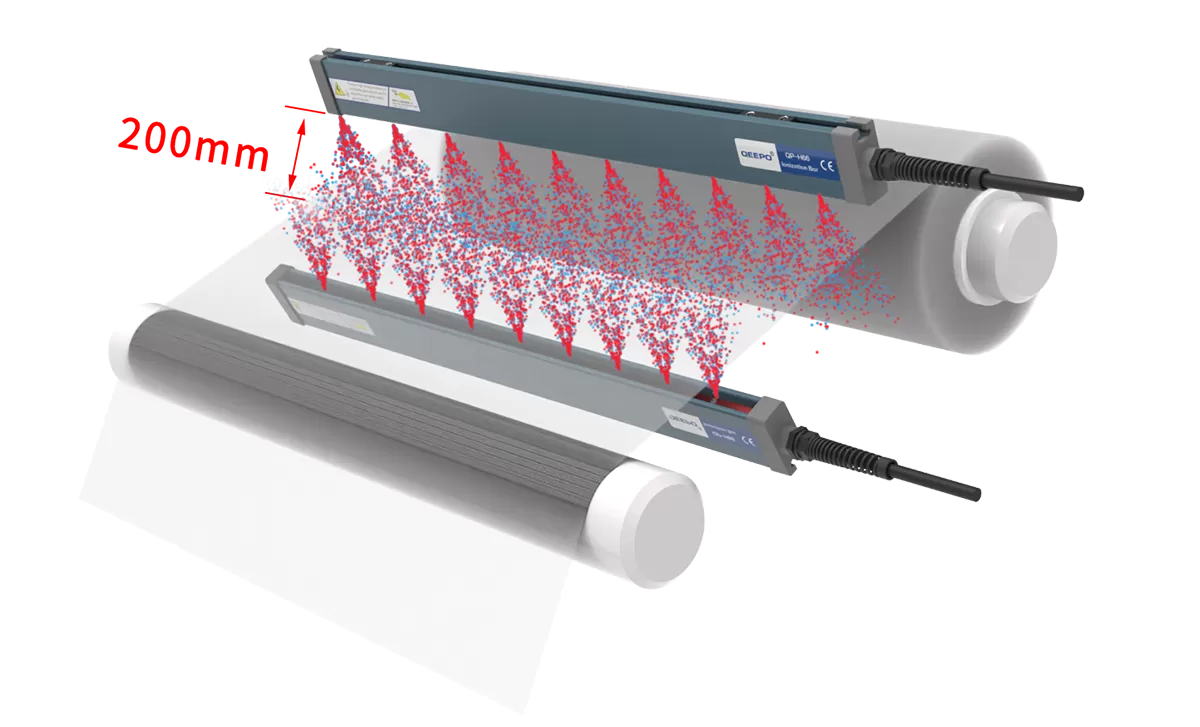

A Wide Range Of Applications
Suitable for static electricity removal in industries
such as printing, textile, plastic, automotive, food and so on.

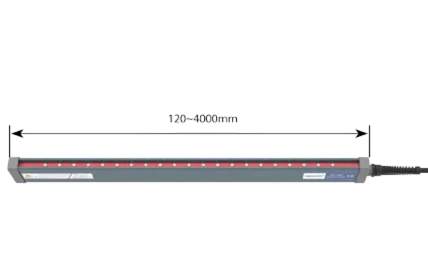

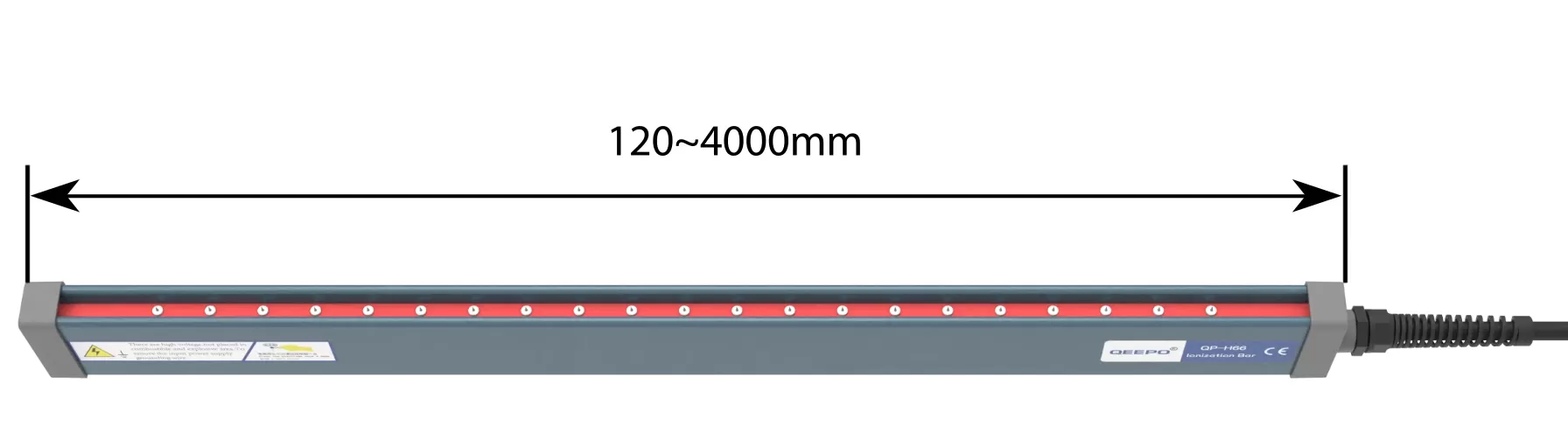

Length Can Be Customized
The length of 120-4000mm can be customized, and the source manufacturer can customize in large quantities.

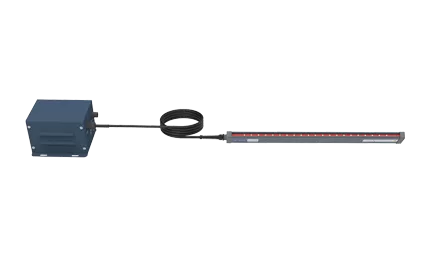

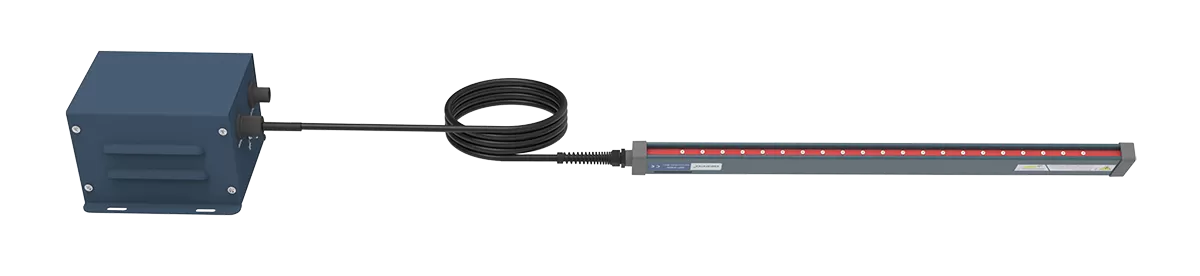

Equipped With A High-Voltage Power Supply For Use Together
Split type static eliminator needs to be equipped with QP-HD series high-voltage power supply for use together.
| TYPE | QP-H66 |
| Working voltage | MAX 7Kv AC |
| Working current | MAX 5mA |
| working frequency | 50/60Hz |
| operation mode | Power frequency AC |
| Working distance | 30~200mm |
| Recommended installation distance | 30~50mm |
| Discharge electrode spacing | 20mm |
| length | 120~4000mm |
| Discharge electrode material | SS. / W / Ti |
| POWER | ≤25W |
| Section size | 20.7*46mm |
| working temperature | 0~50℃ |
| Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;Test distance: 50mm | |
| Working humidity | 0 ~ 70% RH (no freezing, no condensation) |
