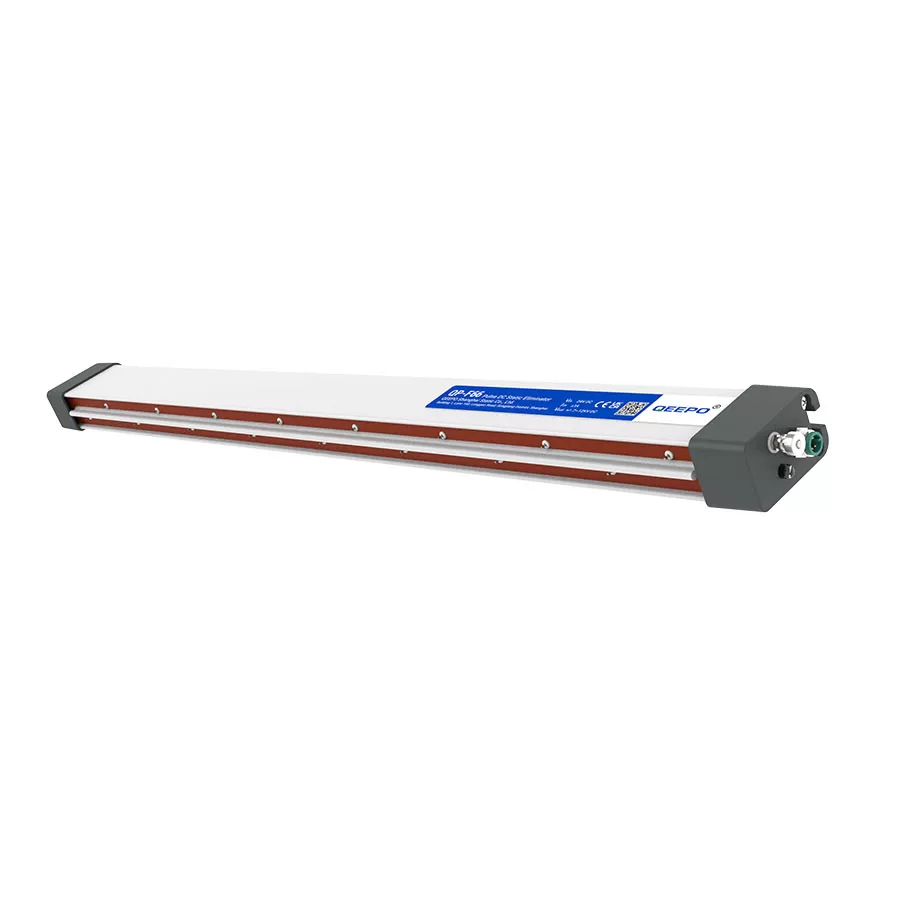

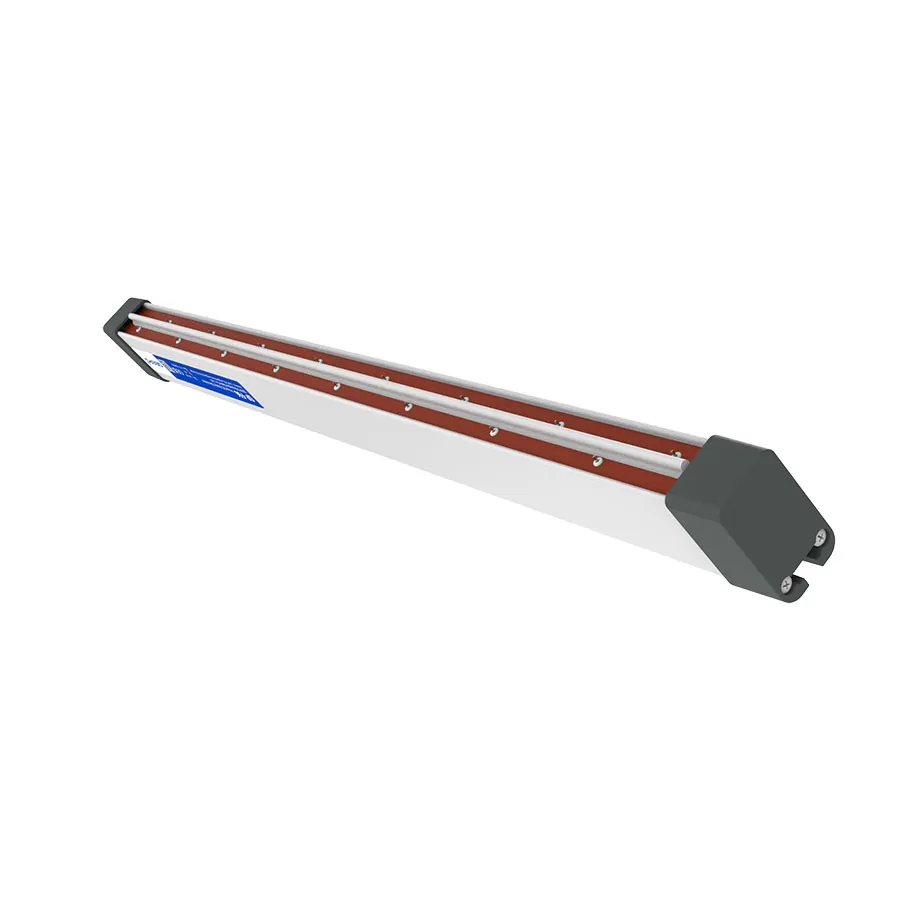

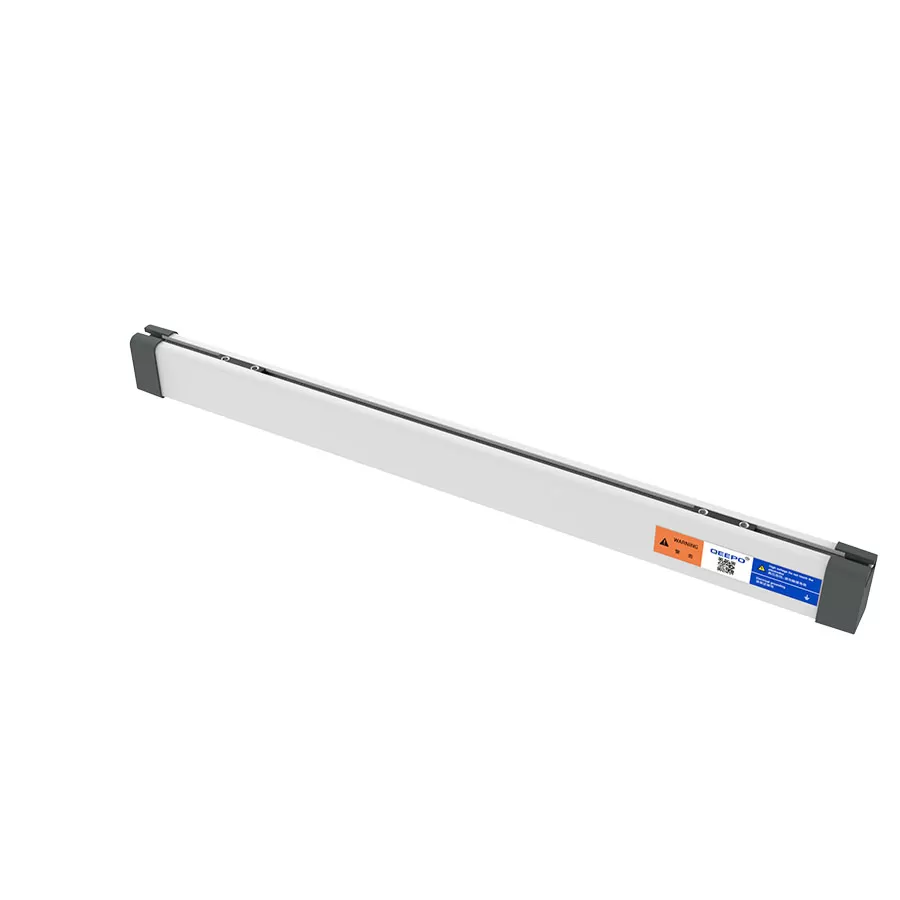

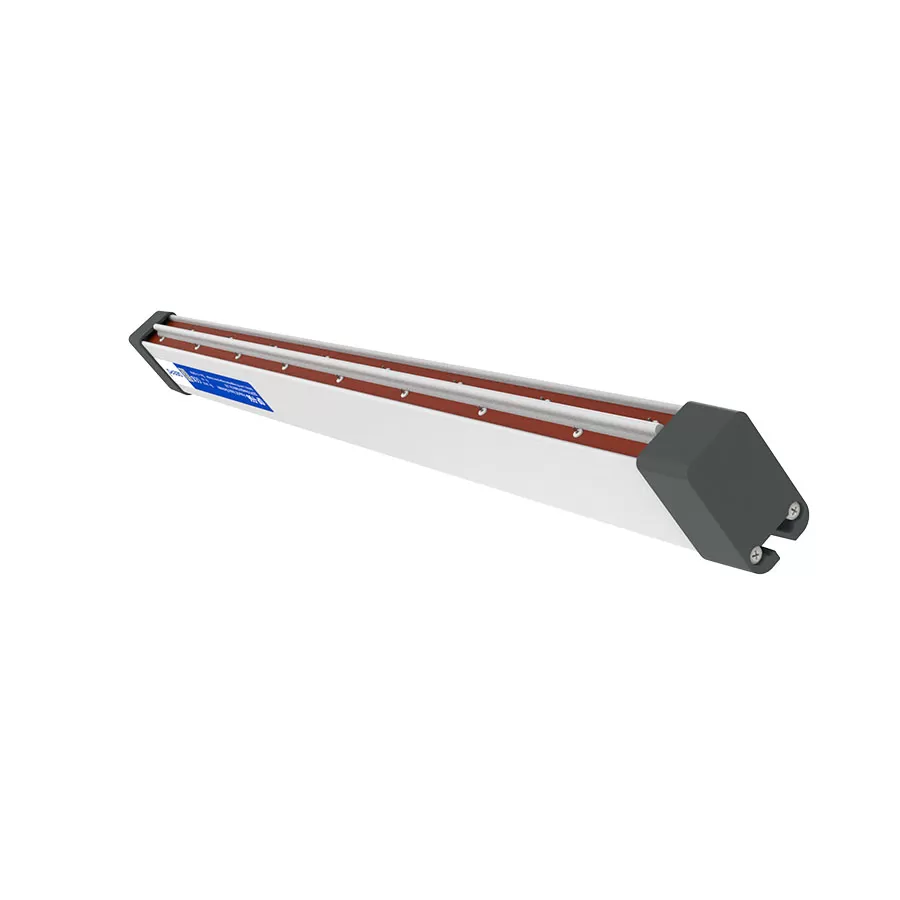

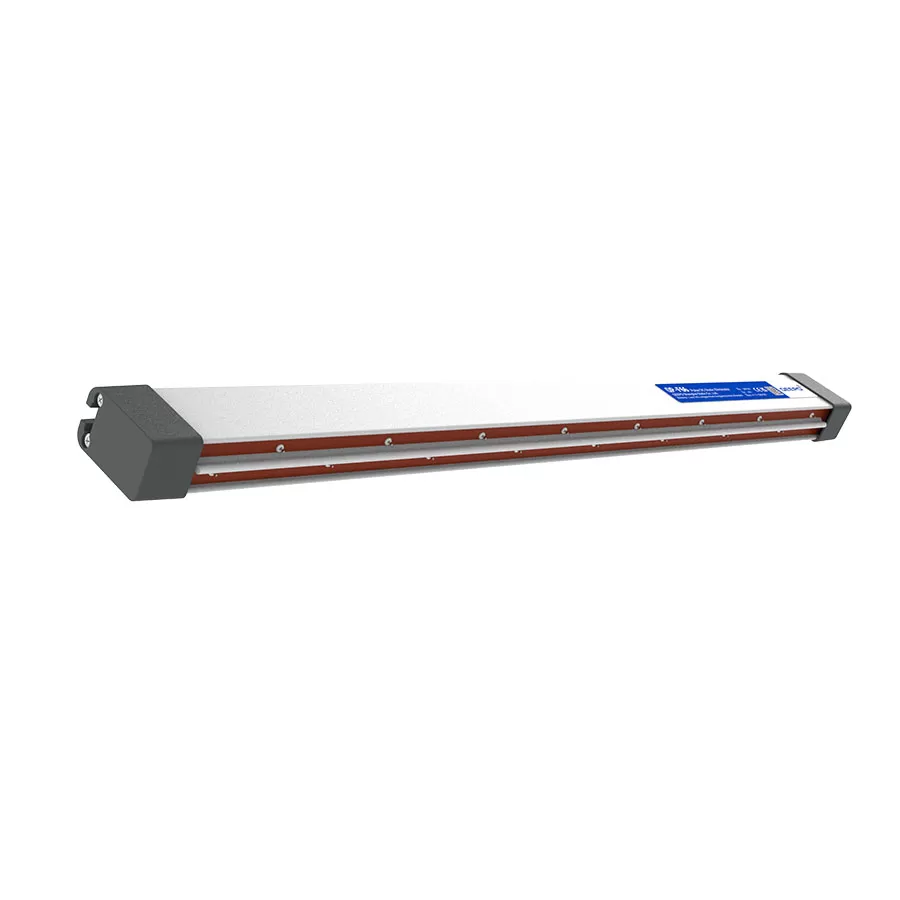

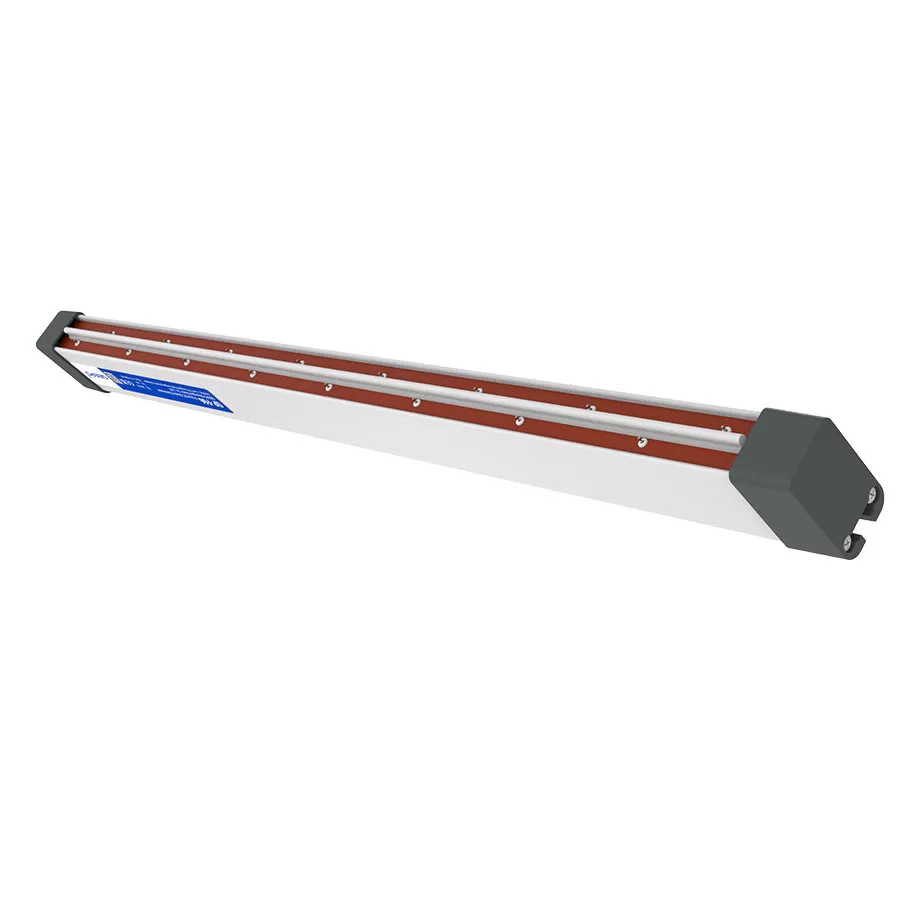

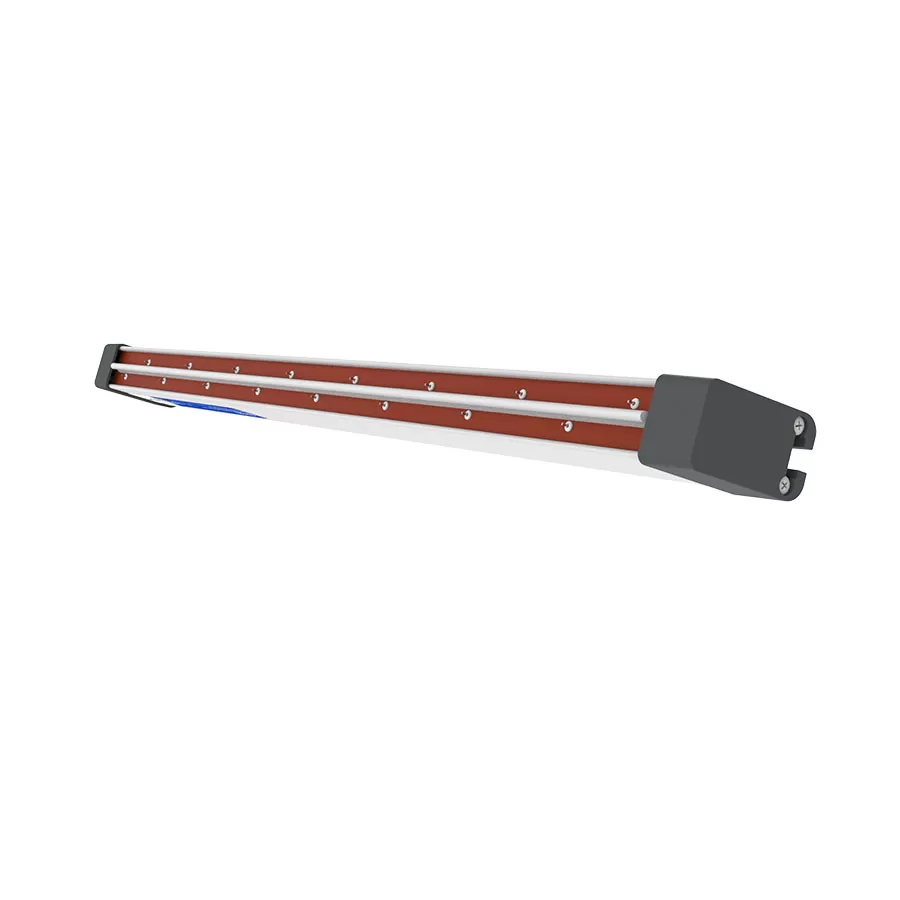

QP-F66 Pulsed DC Static Eliminator

Name: QP-F66 Pulsed DC Static Eliminator
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

QP-F66 is a QEEPO static eliminator for medium and long-distance static electricity removal. It is equipped with a 24V DC input and can be used directly. The double row discharge electrode design provides stronger energy and faster static electricity removal speed. A ceramic column is installed at the bottom of the static electricity eliminator's discharge electrode to improve the overall voltage resistance and insulation strength, making it suitable for static electricity control in various industrial environments.

Get a Quote PDF Download

PDF Download

Videos

Video of QP-F66 Pulsed DC Static Eliminator

Advantages

Performance Advantages of QP-F66 Static Eliminator

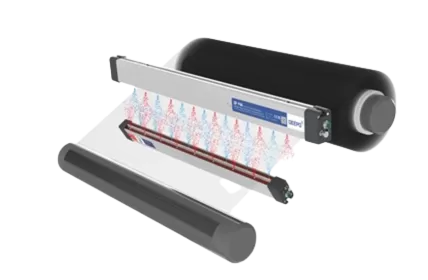

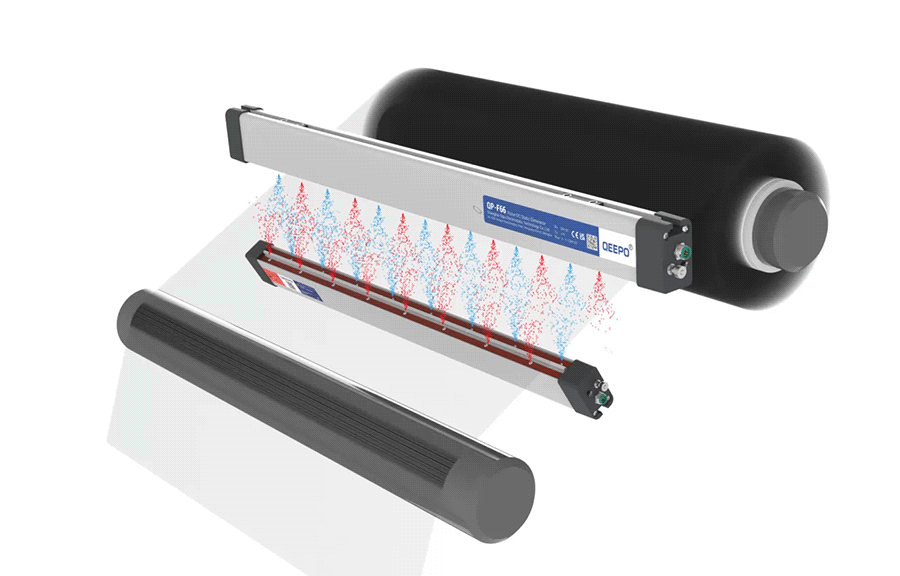

Long Distance For Electrostatic Discharge

The maximum working distance can reach 300mm.

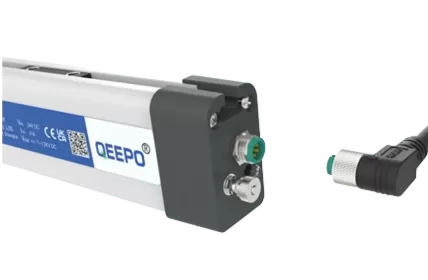

Integrated Design

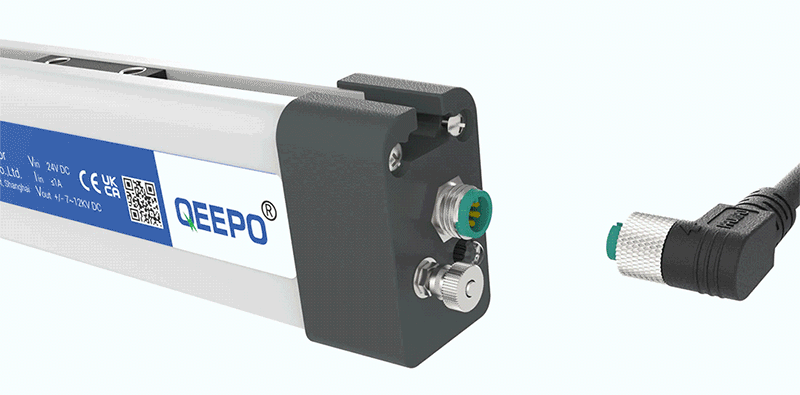

Equipped with a 24V DC input, it can be used directly, reducing the safety hazards caused by using high-voltage line connections.

Maximum Output Voltage+/-12KV

Make the working distance of the electrostatic rod longer.

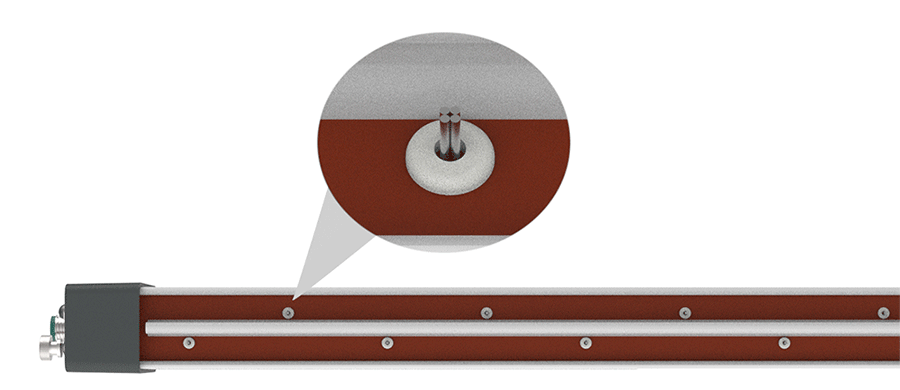

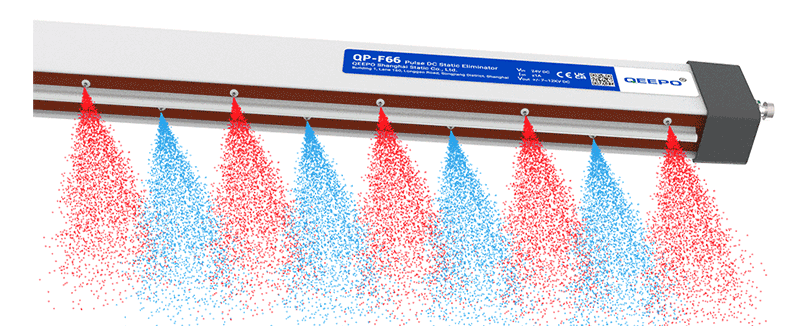

Multi-electrode needle design

Multi strand electrode needle design solves the problem of blunting the positive discharge electrode

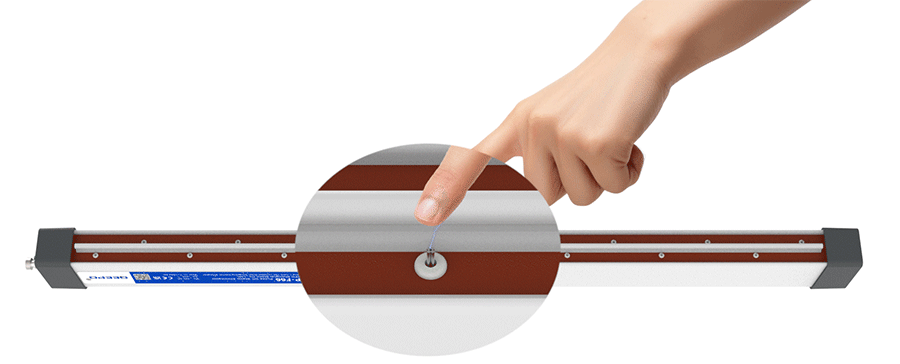

Anti electric shock design, safer and more reliable

Electrostatic Bar Safety Upgrade

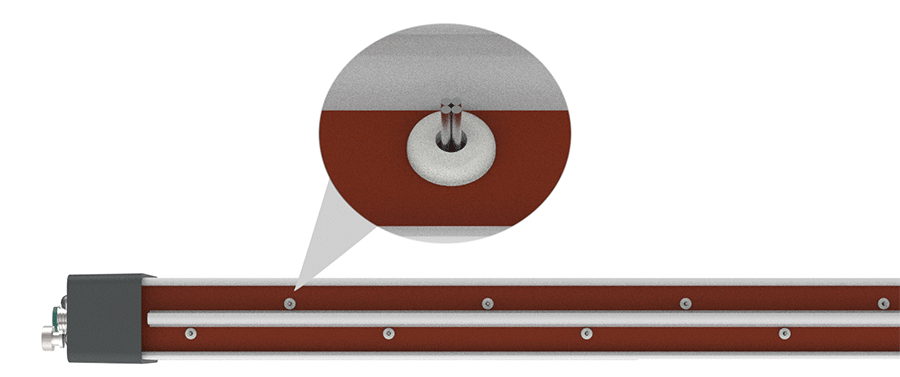

Install ceramic columns at the bottom of the electrode for high temperature resistance and easy cleaning

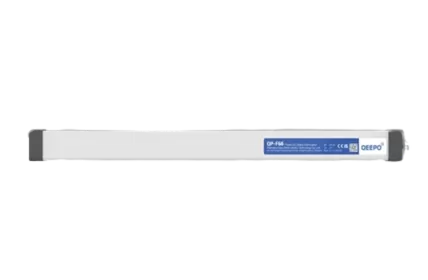

Strong Structural Rigidity

The outer shell of the rod is made of flame-retardant engineering plastic.

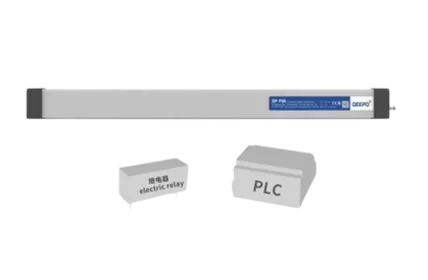

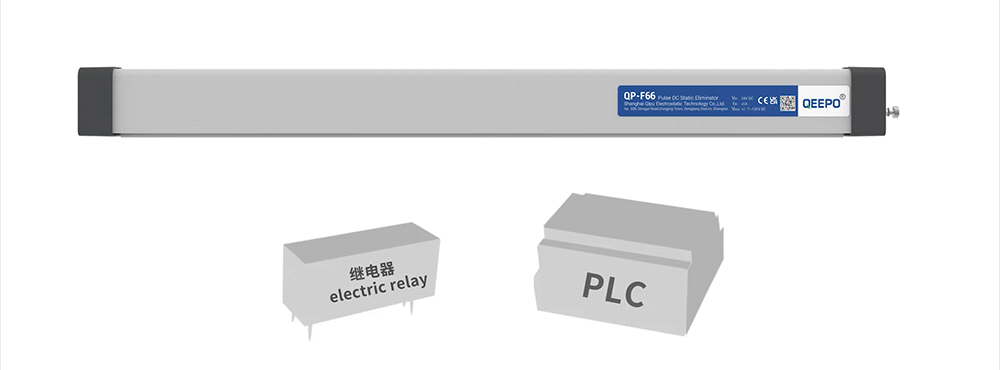

The Electrostatic Rod Also Has Communication Function

Can connect devices such as relays or PLCs.

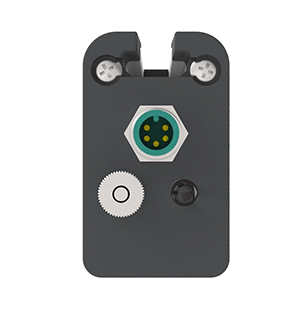

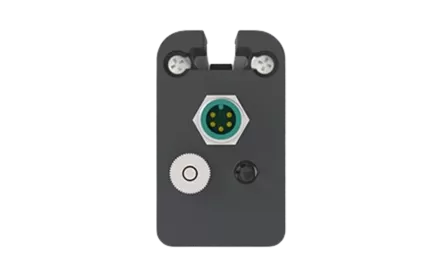

Cleaning And Maintenance Warning

Equipped with LED cleaning indicator light, cleaning and maintenance can be carried out according to prompts (green light flashing, indicating that the static rod needs to be cleaned).

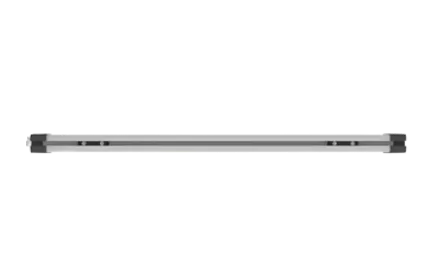

Simple Installation

The back adopts a T-shaped groove design, making it easier to install the electrostatic rod.

Specification

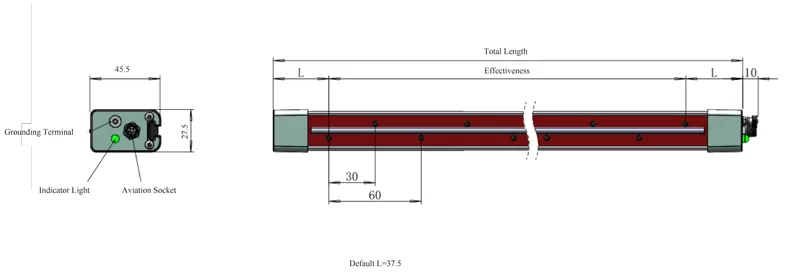

Specification of QP-F66 Static Eliminator

model	QP-F66

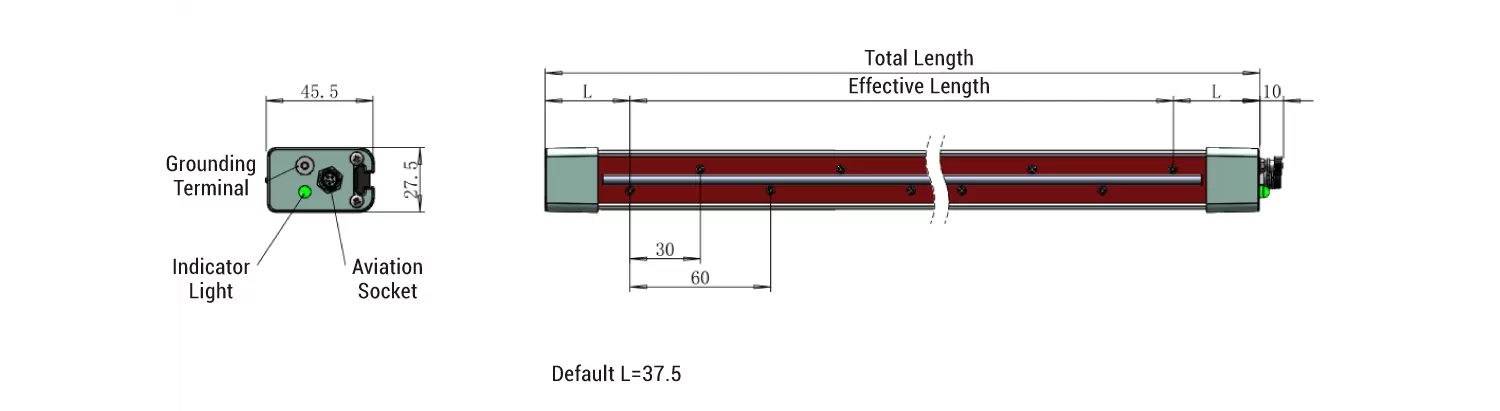

Input voltage	24V DC （20-32V DC）	Section size	27.5*45.5mm
Input current	≤1A	Discharge electrode material	W
Working voltage	9.5/12KV DC	Working distance	50~300mm
Working frequency	1~30Hz	Work proportion	40%：60%（POS：NEG）
Working temperature	0℃~40℃	Working humidity	0~70%RH
Texture of material	ABS/PVC FR.
The default frequency is 10Hz, which can be adjusted from 1 to 30Hz through a regulator. The default work ratio is 40%: 60% (POS: NEG), which can be adjusted from 10%: 90% to 90%: 10% through a regulator.
