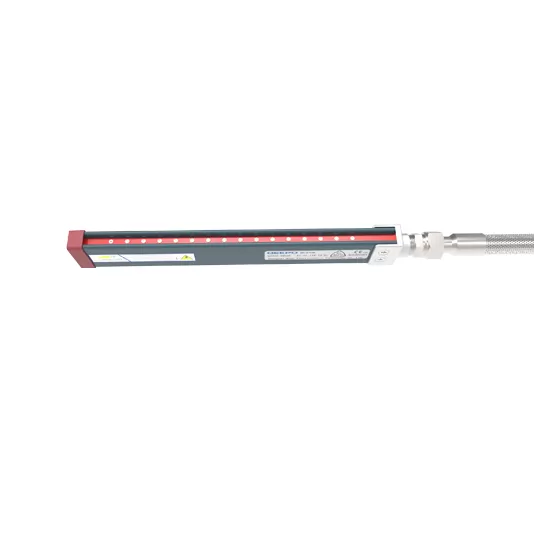

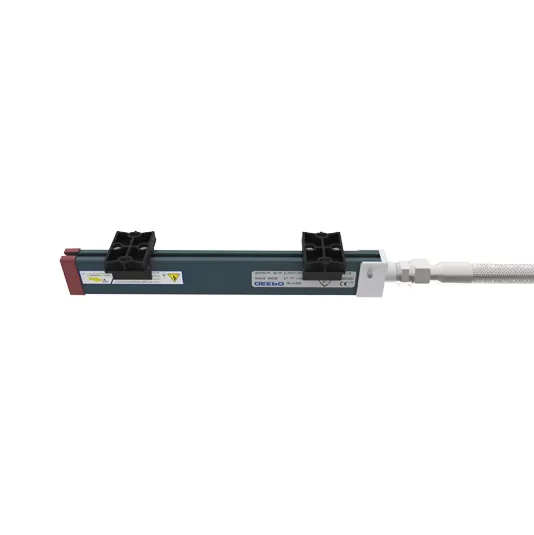

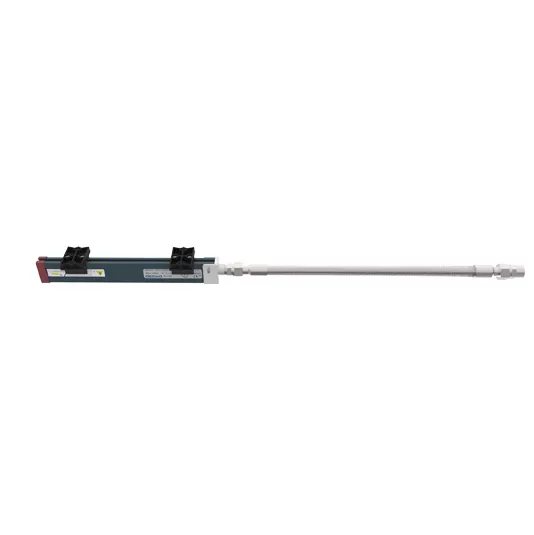

QP-F35B Explosion Proof Static Eliminator

Name: QP-F35B Explosion Proof Static Eliminator
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

QP-F35B explosion-proof static eliminator is a static eliminator specifically designed for use in certain explosion-proof areas and has passed national explosion-proof certification; The electrostatic rod not only ensures the effectiveness of static electricity removal, but also prioritizes safety. While few static eliminator manufacturers can meet such stringent explosion-proof requirements, Qeepo delivers a solution fully qualified for hazardous environments.

Get a Quote PDF Download

PDF Download

Advantages

Performance Advantages of QP-F35B Static Eliminator

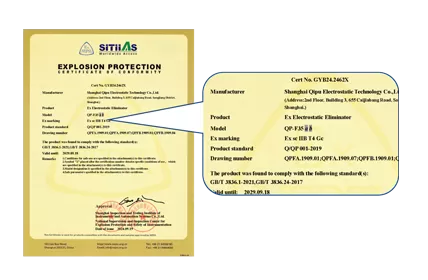

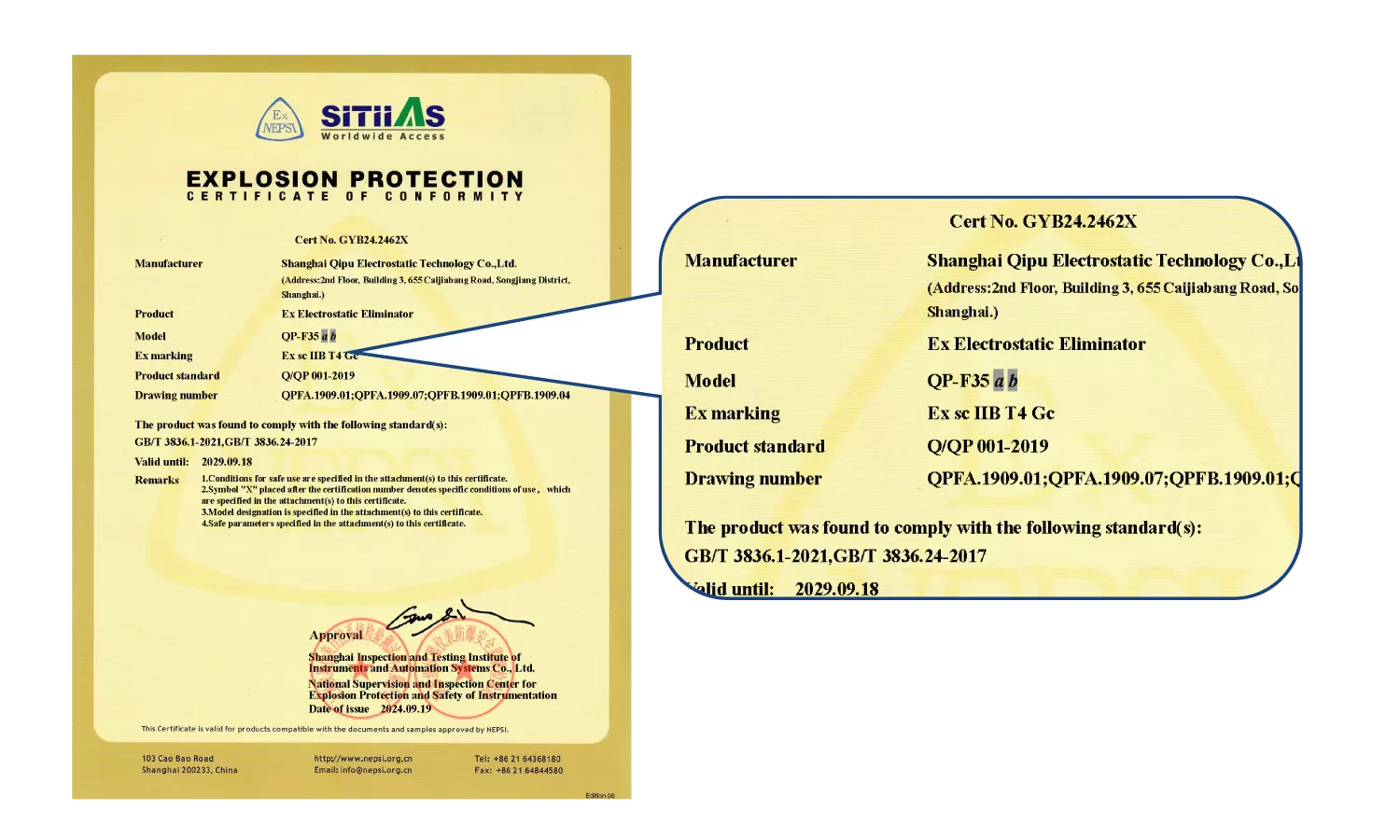

Explosion Proof Certificate Certification

The explosion-proof mark is: Ex sc IIB T4 Gc, T4 represents the highest explosion-proof temperature of 135 ℃.

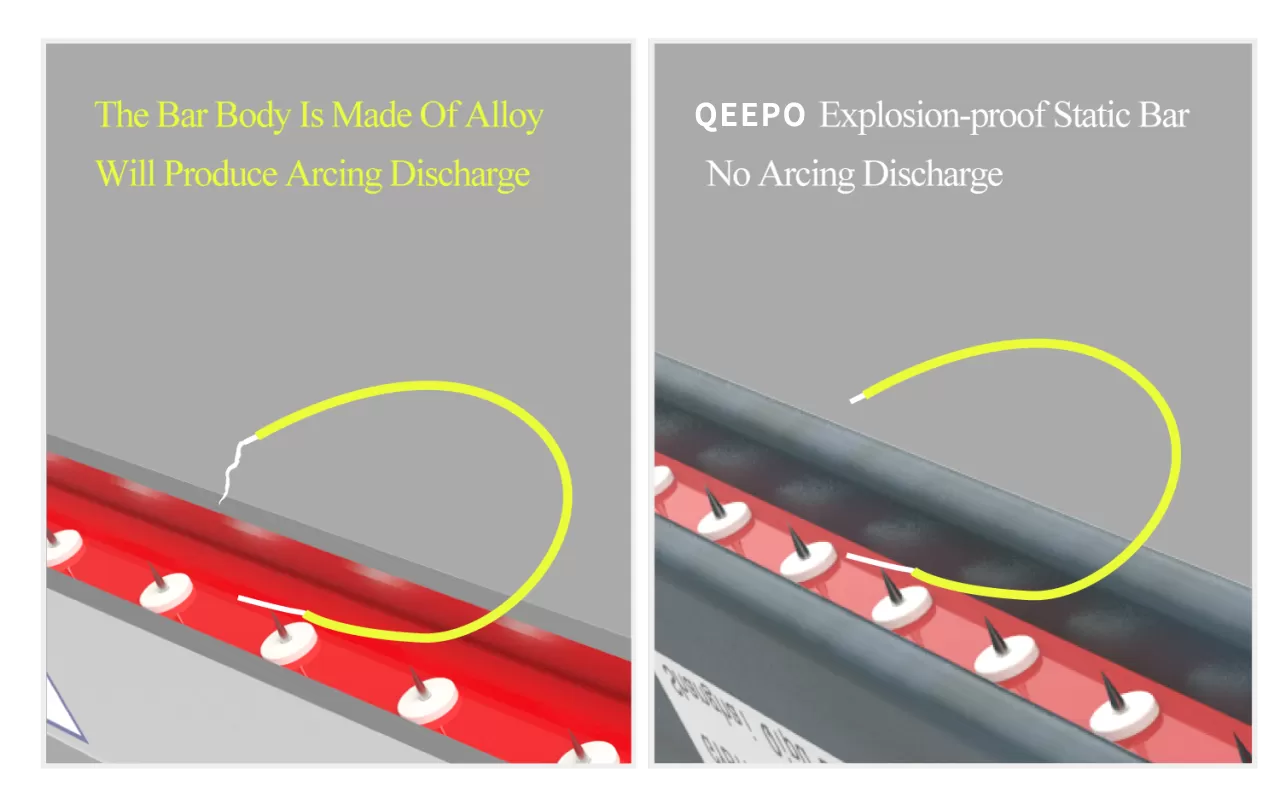

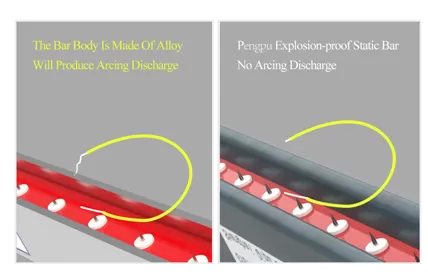

Reliable Safety Performance

It will not produce phenomena such as discharge and arc pulling, and is safe and reliable.

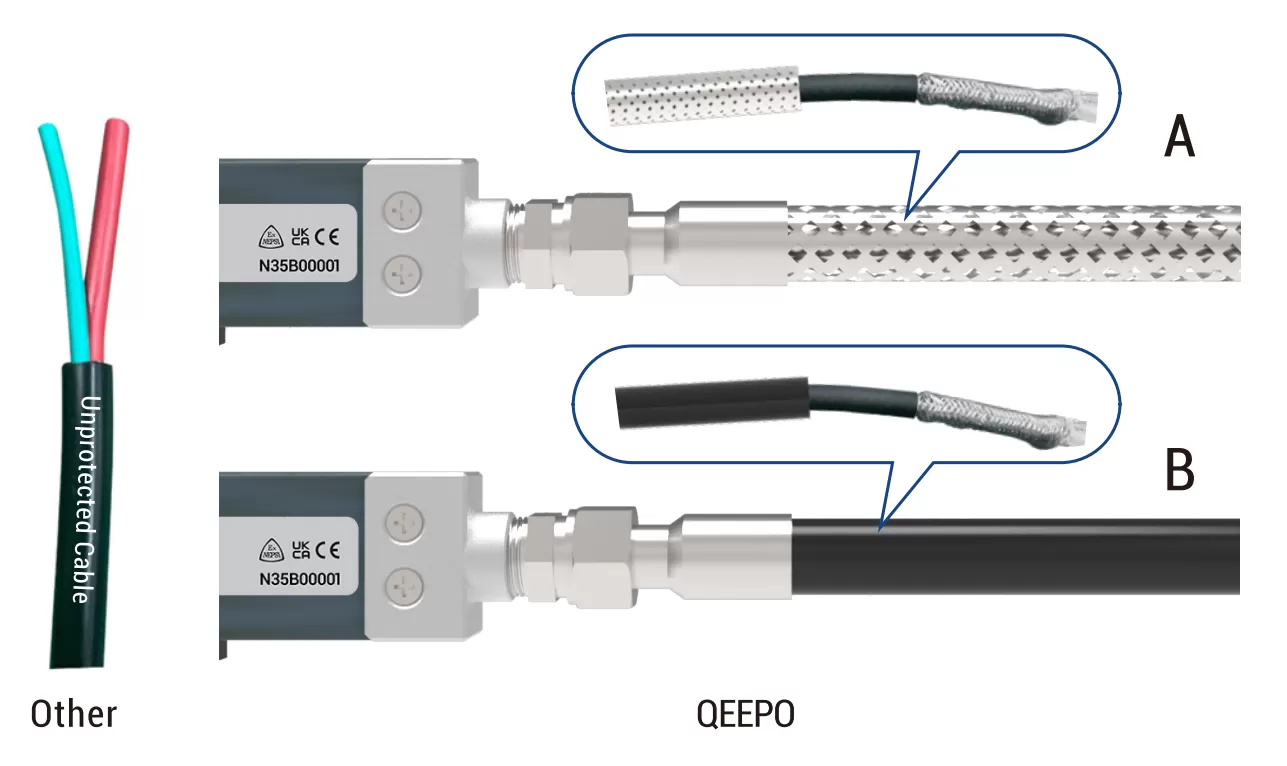

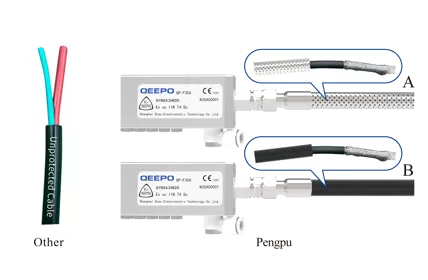

High Voltage Line Safety Protection

Adopting double shielded wire, with one layer of shielding inside the high-voltage wire, and an external sleeve (Type A: steel wire braided flexible tube, Type B: stainless steel sleeve),Double layer safety protection, durable insulation that is not easily damaged, and higher safety level.

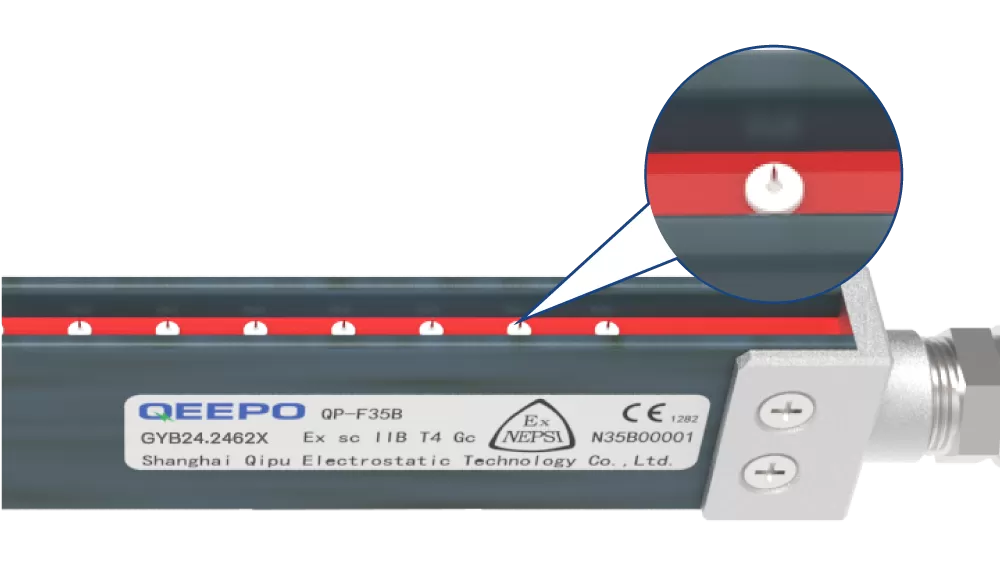

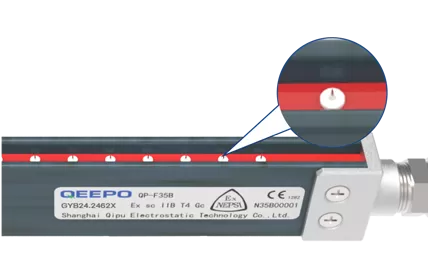

Electrode Safety Protection

Installing ceramic columns at the bottom of the electrostatic discharge electrode enhances insulation, heat insulation, and safety performance.

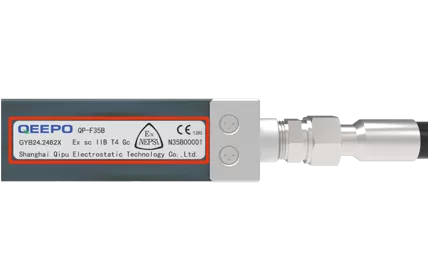

Adhesive Of Explosion-Proof Label For Electrostatic Rod

Correctly paste explosion-proof labels according to national regulations.

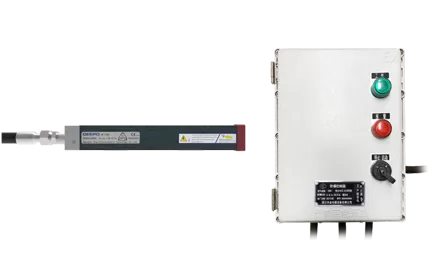

Supporting Explosion-Proof High-Voltage Power Supply For Use

Can be used together with QP-HE explosion-proof high-voltage power supply.

Specification

Specification of QP-F35B Static Eliminator

TYPE	QP-F35B
Working voltage	MAX 7Kv AC
Working current	MAX 5mA
working frequency	50/60Hz
operation mode	Power frequency AC
Working distance	30~150mm
Recommended installation distance	30~50mm
Discharge electrode spacing	15mm
Discharge electrode material	SS. / W / Ti
length	115~2500mm
working temperature	0~50℃
Working air pressure	0.2~0.5MPa
Explosion proof grade	Ex sc IIB T4 Gc
Explosion proof Certificate No	GYB19.2083X
Working humidity	0 ~ 70% RH (no freezing, no condensation)
Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;
