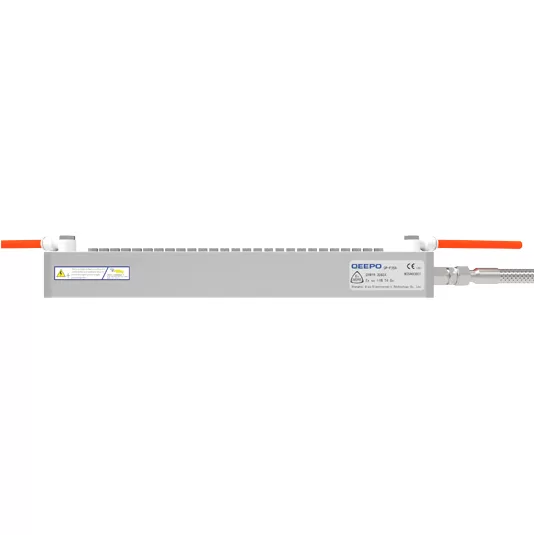

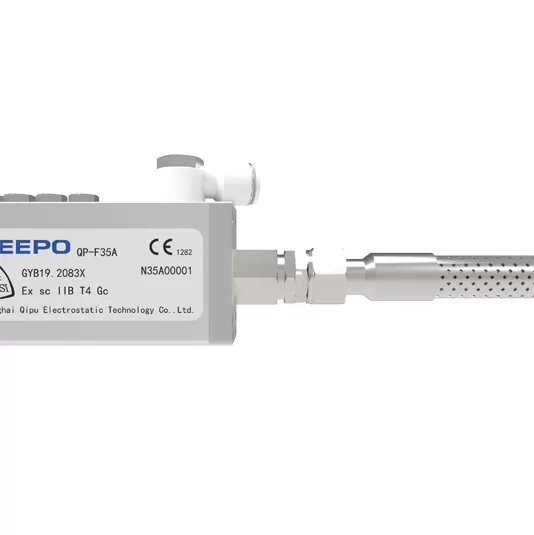

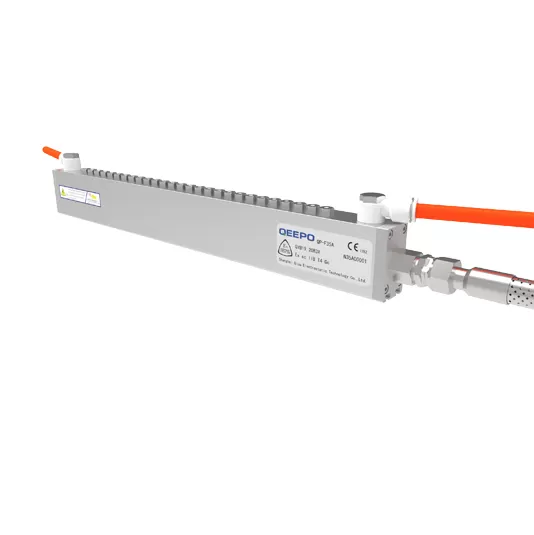

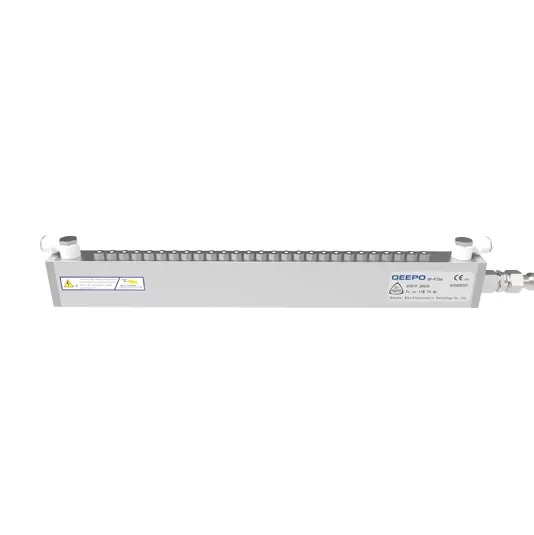

QP-F35A Explosion Proof Static Eliminator

Name: QP-F35A Explosion Proof Static Eliminator
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

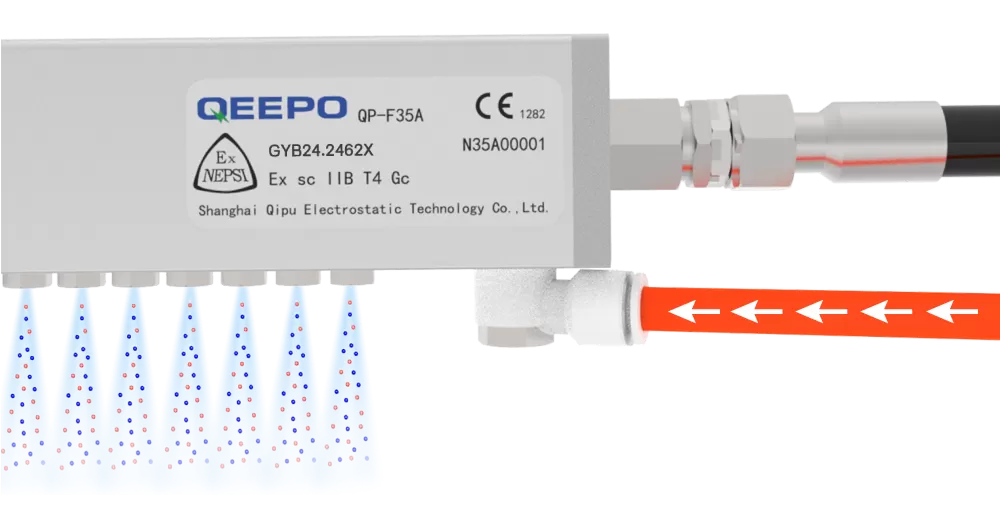

The QP-F35A series is designed with a structure that uses compressed air to blow out ions, avoiding abnormal discharge from the discharge electrode to the external environment and improving product safety performance. Simultaneously, the positive and negative ions generated by corona discharge are blown towards the surface of the material through compressed air, increasing the effective working distance of the product. Setting a safety benchmark for professional static eliminator manufacturers, Qeepo ensures this structural design effectively minimizes risks while maximizing neutralization efficiency.

Get a Quote PDF Download

PDF Download

Advantages

Performance Advantages of QP-F35A Static Eliminator

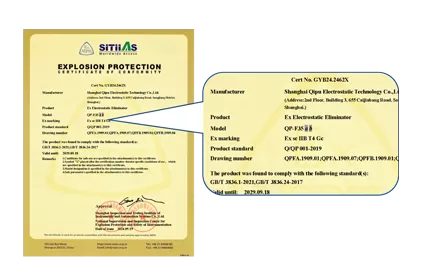

Explosion Proof Certificate Certification

The explosion-proof mark is: Ex sc IIB T4 Gc, T4 represents the highest explosion-proof temperature of 135 ℃.

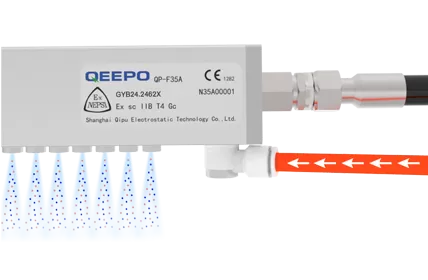

Reliable Safety Performance

The structural design of using compressed air to blow out ions avoids abnormal discharge from the discharge electrode to the external environment, thereby improving product safety performance.

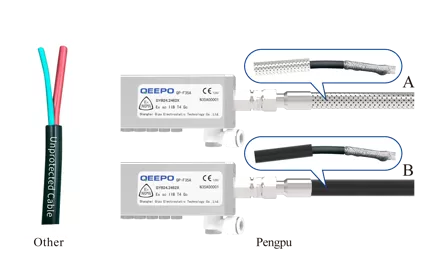

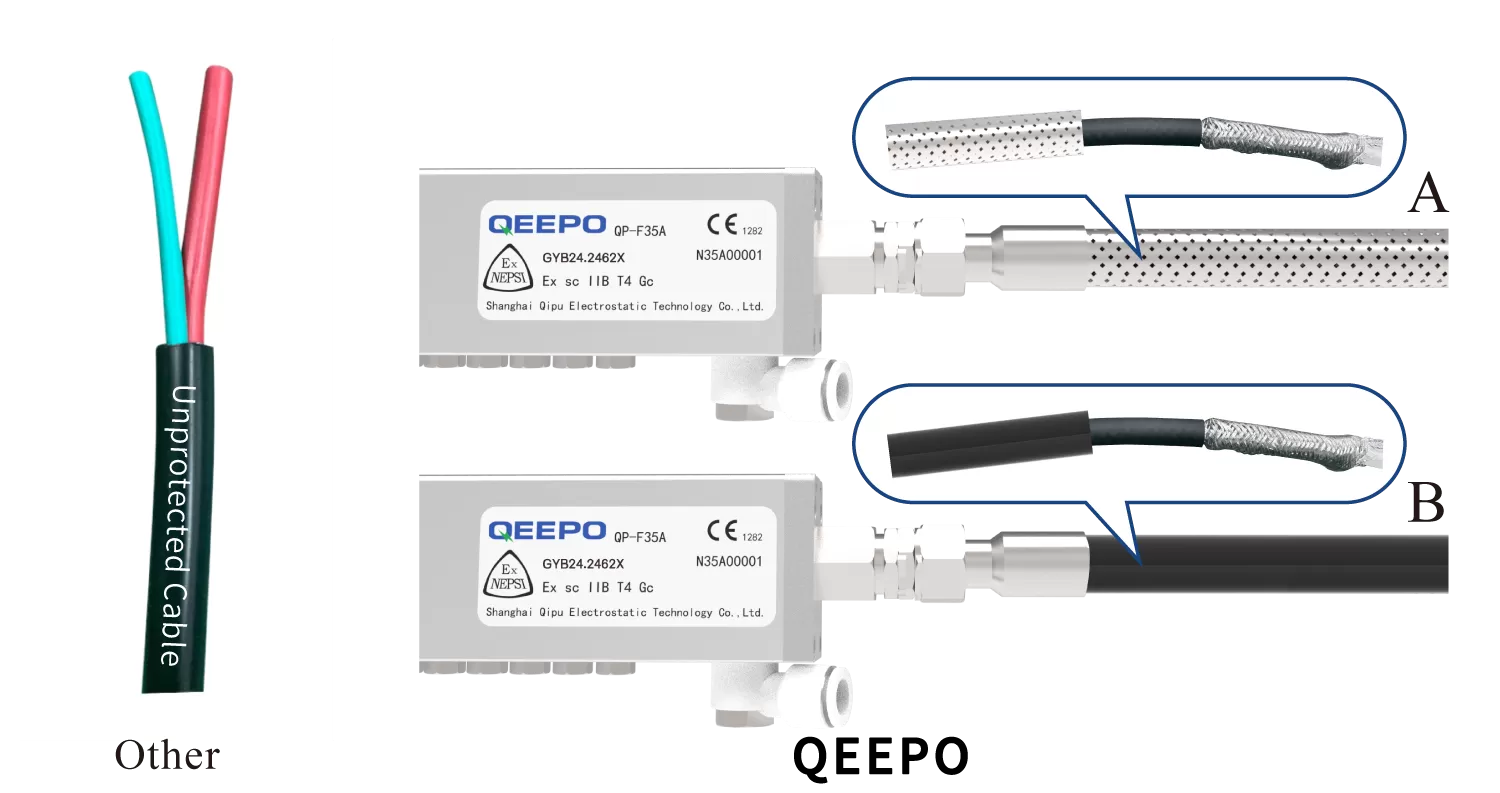

High Voltage Line Safety Protection

Adopting double shielded wire, with one layer of shielding inside the high-voltage wire, and an external sleeve (Type A: steel wire braided flexible tube, Type B: stainless steel sleeve),Double layer safety protection, durable insulation that is not easily damaged, and higher safety level.

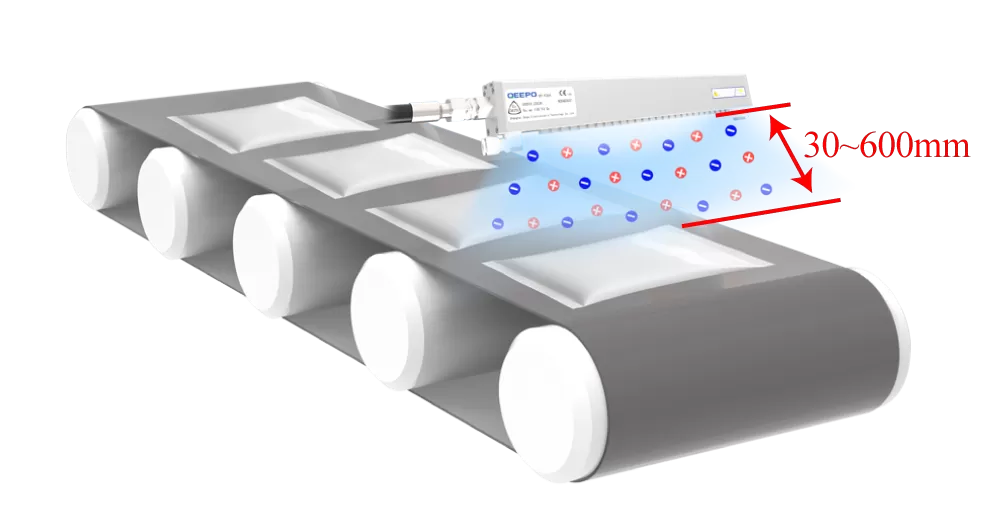

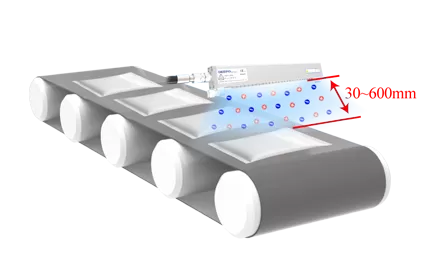

Long Working Distance

By compressing air, the positive and negative ions generated by corona discharge are blown towards the surface of the material, increasing the effective working distance of the product. (Working distance: 30-600mm)

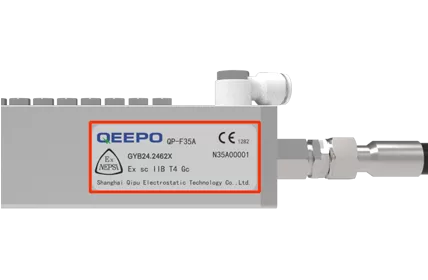

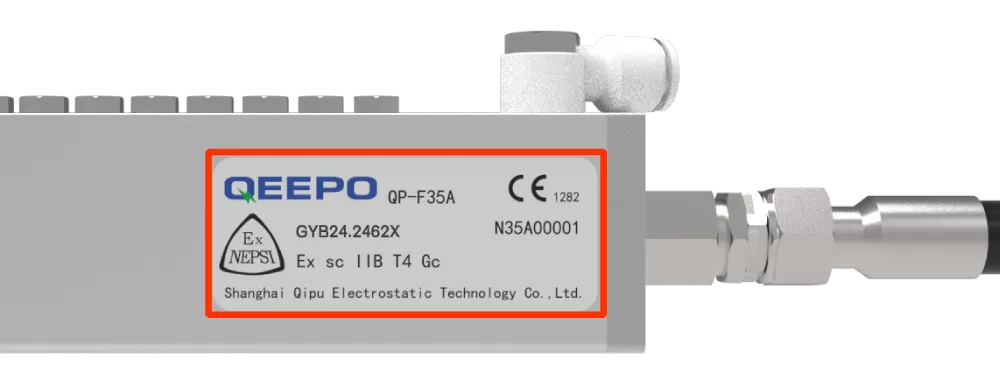

Adhesive Of Explosion-Proof Label For Electrostatic Rod

Correctly paste explosion-proof labels according to national regulations.

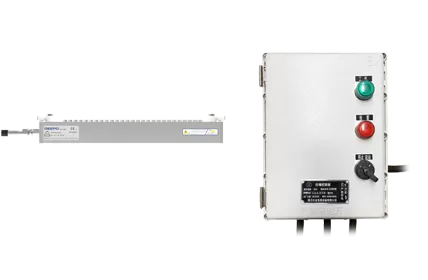

Supporting Explosion-Proof High-Voltage Power Supply For Use

Can be used together with QP-HE explosion-proof high-voltage power supply.

Specification

Specification of QP-F35A Static Eliminator

TYPE	QP-F35A
Working voltage	MAX 7Kv AC
Working current	MAX 5mA
working frequency	50/60Hz
operation mode	Power frequency AC
Working distance	30~600mm
Recommended installation distance	30~50mm
Discharge electrode spacing	30mm
Discharge electrode material	SS. / W / Ti
length	230~2510mm
working temperature	0~50℃
Air pipe size	Φ12
Working air pressure	0.2~0.5MPa
Explosion proof grade	Ex sc IIB T4 Gc
Explosion proof Certificate No	GYB19.2083X
Working humidity	0 ~ 70% RH (no freezing, no condensation)
Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;
