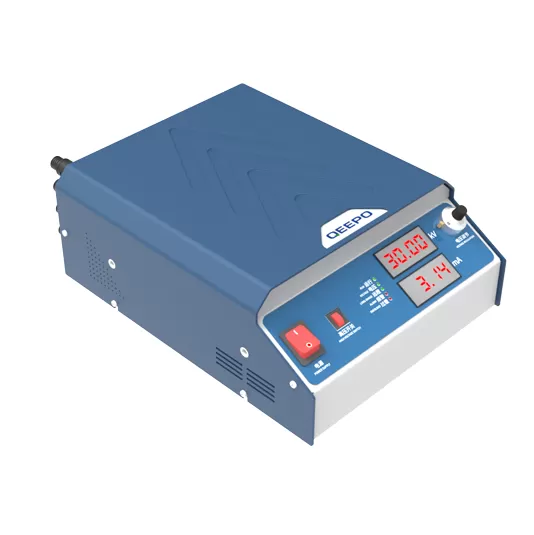

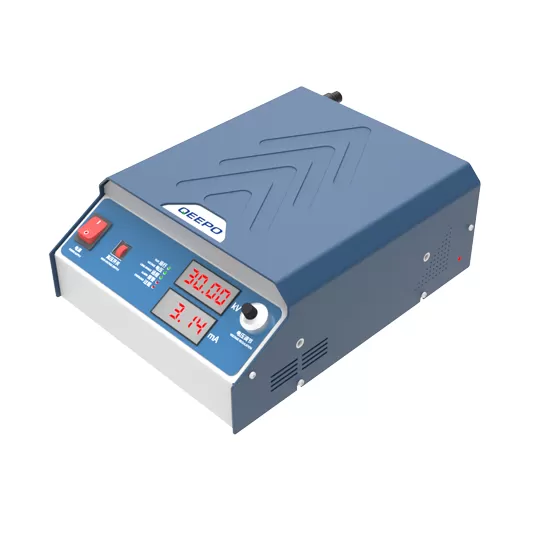

QP-EH is an electrostatic generator designed for industrial applications that require the use of static electricity for temporary bonding and adsorption. It is suitable for product bonding, perforation detection, charged adsorption, and material separation. By integrating advanced circuitry, this unit outperforms standard static charge generators by delivering precise ion control even in challenging environmental conditions. Qeepo ensures that these static charge generators are easy to install and operate, allowing businesses to achieve seamless electrostatic pinning without constant manual adjustments.
Get a Quote
PDF Download
Capable of generating 150W of high-voltage electricity, with a maximum output voltage of 30kV.

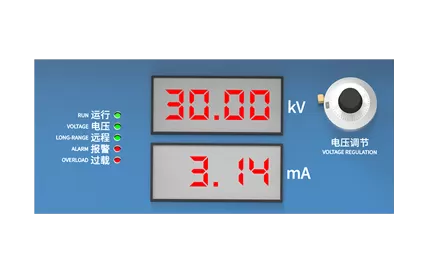

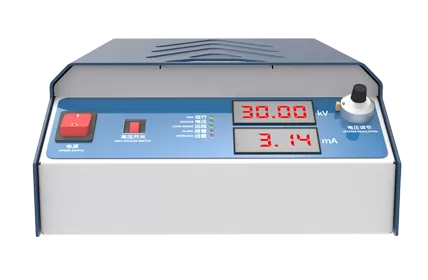

Intuitively and clearly see the adjustment values.
Equipped with a power switch, simple one click operation.

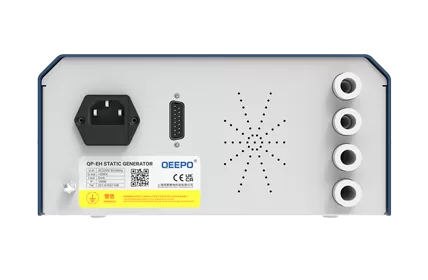

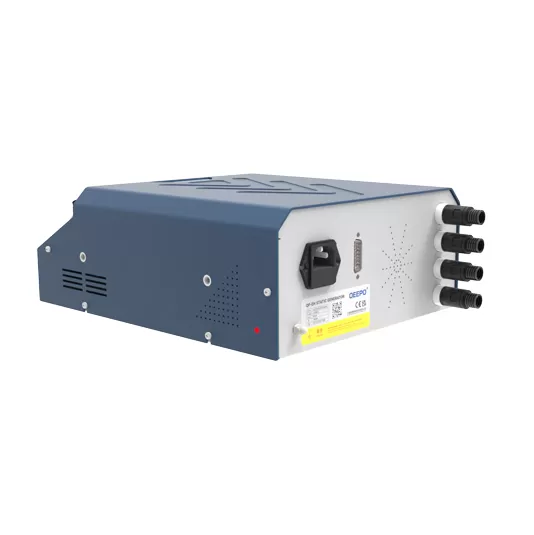

4 high voltage output ports.

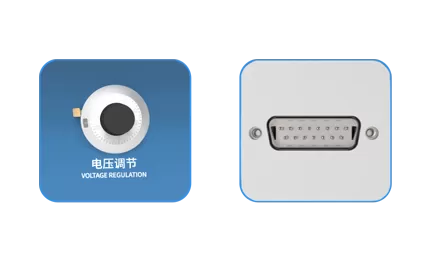

Rotate the high-voltage potentiometer dial to adjust, with a remote control port for remote control.

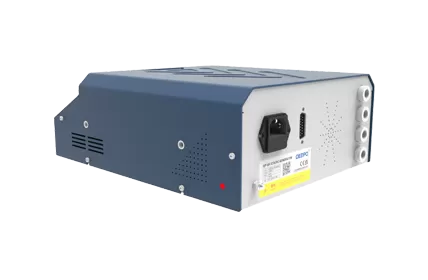

Equipped with complete protection circuits, safe and reliable.

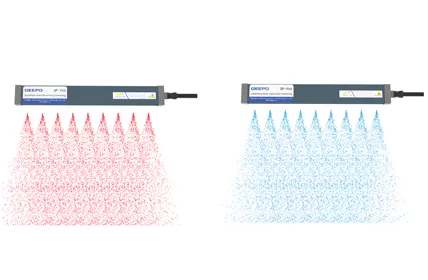

Can be explained at the time of ordering.
| MODEL | QP-EH |
| Input Voltage | 220V 50/60Hz |
| Power | 150W |
| Output Voltage | +30KV Or -30KV |
| Overall Dimension L * W * H | 240*301.5*115 |
| Output Current | 5mA |
| Working Temperature | 0~50℃ |
| Operating Humidity | 0～70%RH（No Freezing And Condensation） |
