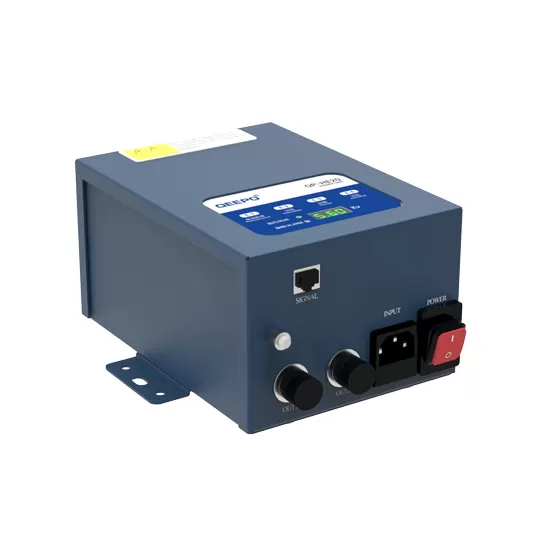

QP-HE20 intelligent high-voltage power supply is an efficient, safe and intelligent product developed and designed by Qipu. It has multiple protection functions, can display working conditions, and is suitable for various QEEPO static eliminators.
Get a Quote
PDF Download

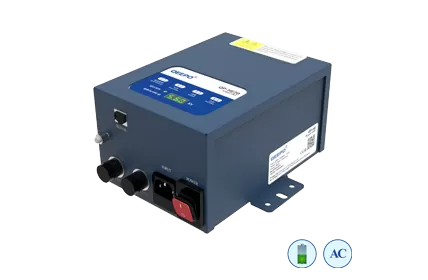

Output voltage 4.6/5.6/7KV (optional), low operating cost (power 28W).
Safer to use.
Connected to a high-voltage plug designed without an external grounding wire with an electrostatic rod for higher safety performance.

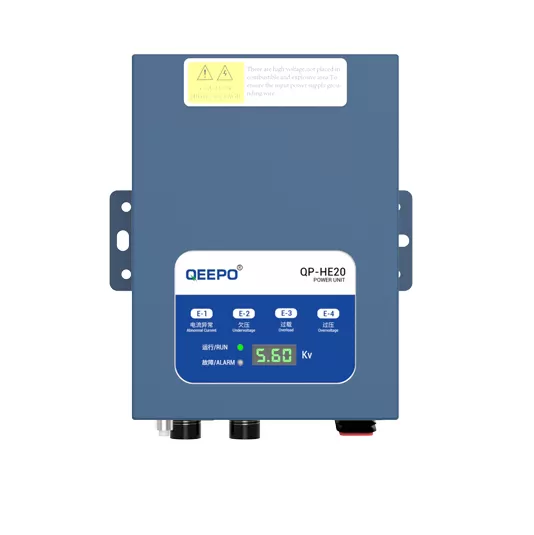

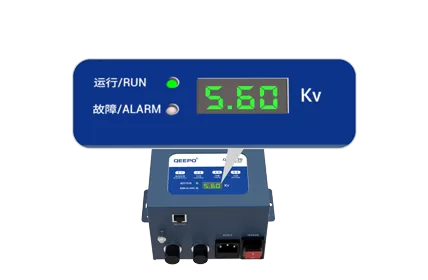

The indicator light displays the working status, and the digital tube displays the working voltage.

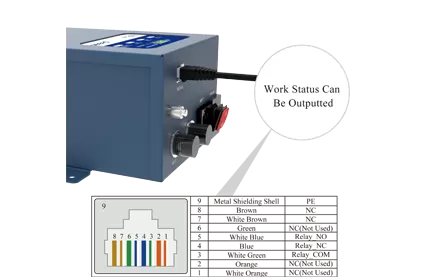

Provides an external port that can output working status signals.
Safe and reliable, with strong energy.
| Model | QP-HE20 | ||
| Input Voltage | 220V/50Hz | Maximum Load | 12m（4.6/5.6KV） 4.5m（7KV) |
| Power | 28W | External Dimensions L * W * H | 192*180*105.5mm |
| Output Voltage | 4.6/5.6/7KV (Optional) | Weight | 3.2Kg |
| Output Current | MAX 5mA | Working Temperature | 0～50℃ |

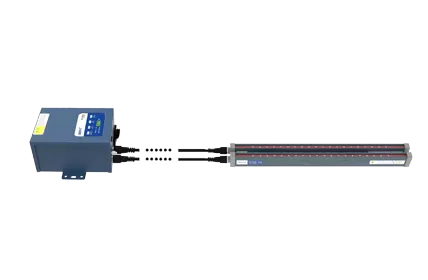

| Number Of Connected Loads | 2 | Working Humidity | 0～70%RH（No Freezing, No Condensation） |
