QP-HD power supply is a low-power, high-energy, safe and reliable static eliminator power supply with excellent performance. It has overvoltage and short circuit protection characteristics, is safe and reliable, easy to operate, and has strong environmental applicability.
Get a Quote
PDF Download

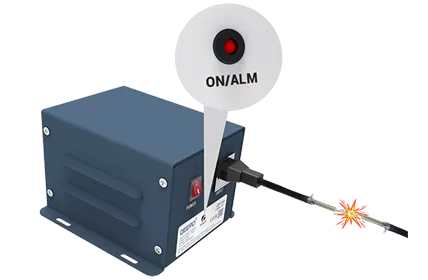

When the device experiences short circuit, under voltage, over voltage, or ignition, the power supply enters a protective state, warns through external indicator lights, and stops external output.

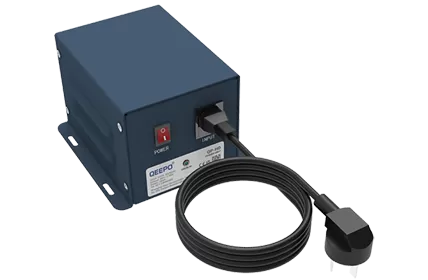

The power supply can provide voltage output of 4.6kV or 5.6kV (customer selected).

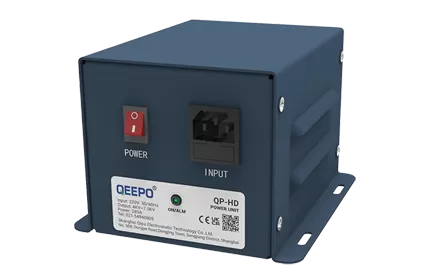

Low operating cost, power supply of 28W.

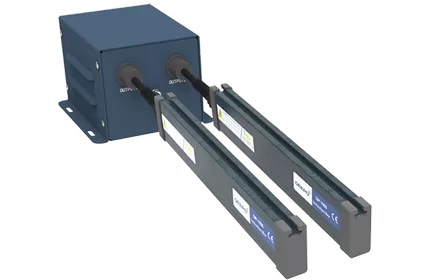

Can connect two electrostatic rods for operation.

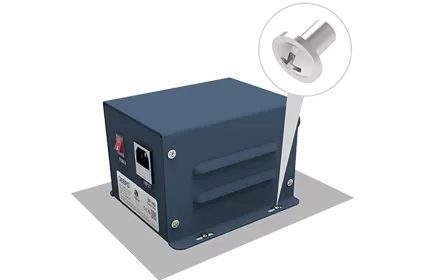

Save personnel costs by using M5 screws for external installation and fixation.

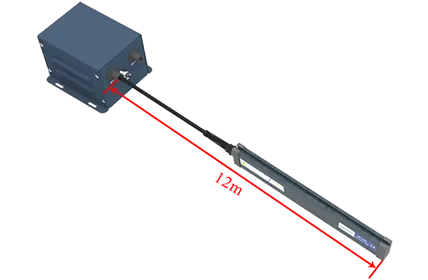

To meet the long-distance usage needs of customers, the total length of the electrostatic rod and cable can reach 12m.
| model | QP-HD |
| input voltage | 220V AC |
| Output current | ≤5mA |
| Output voltage | 4.6/5.6KV(Customer Choice) |
| power | 28VA |
| Dimensions L * W * H | 179.2*150*110.5mm |
| working temperature | 0～50℃ |
| Working humidity | 0-70% RH (no freezing, no condensation) |
