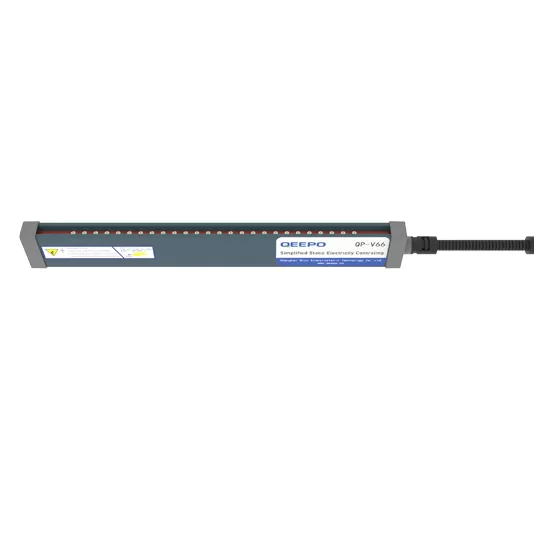

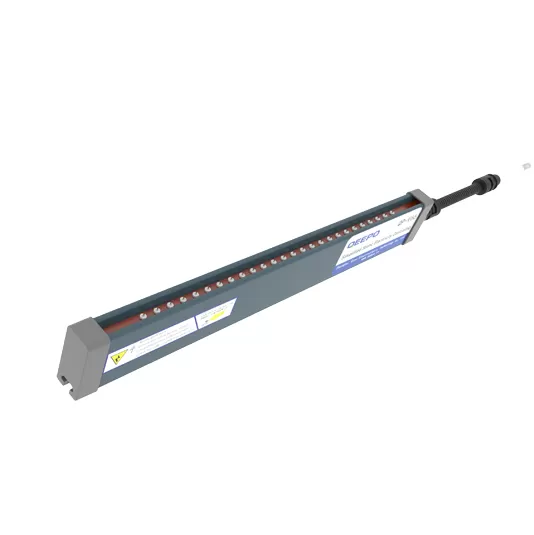

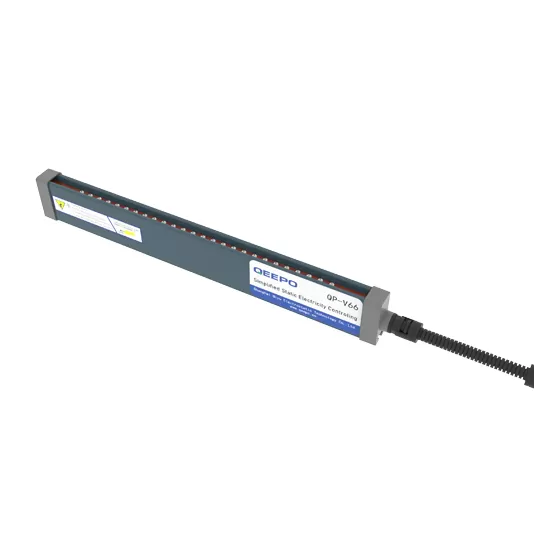

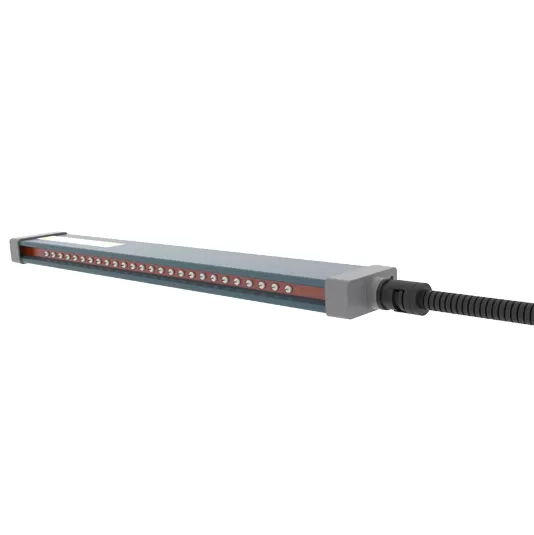

The QP-V66 electrostatic charging bar is a product used for static electricity generation. An electrostatic charging bar is a supporting equipment that adds static electricity to specified materials during the static electricity generation process. When used, it is used in conjunction with a high-voltage power supply (recommended to use our QP-EH Static charging generator).
Get a Quote
PDF Download

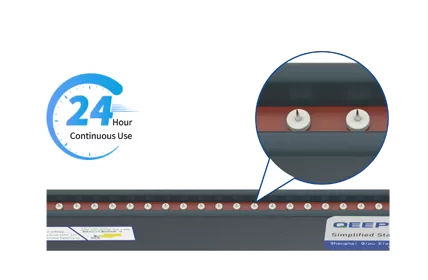

The safety structure design of the internal discharge part avoids abnormalities and has a long service life. 24-hour continuous use.
Safer and easier to install.

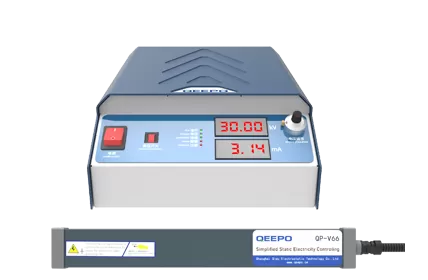

Can be used together with QP-EH high-voltage power supply.
| model | QP-V66-5 | QP-V66-10 |
| Working Voltage | ≤±60KV | ≤±60KV |
| Operating Current | <20mA | <20mA |
| Operating Humidity | 0~70% RH | 0~70% RH |
| Working Temperature | 0~50℃ | 0~50℃ |
| Product Size | 150mm~4000mm | 150mm~4000mm |
| Installation Distance | 30mm~100mm | 30mm~100mm |
| Discharge Electrode Spacing | 5mm | 10mm |
