The QP-ESD201 Static field meter is a specialized instrument for detecting static electricity and also has the function of ion balance testing. It can effectively detect the static electricity carried by objects, such as plastics, synthetic fibers, fur, and static electricity carried by the human body.
Get a Quote
PDF Download

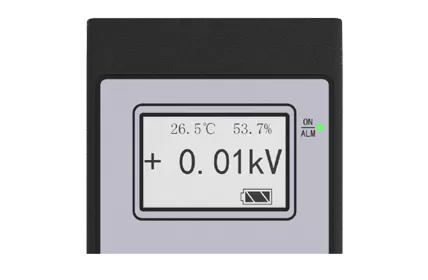

Wide range of electrostatic measurement.

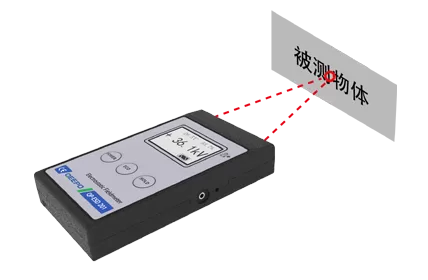

The tester can be placed at a distance of two infrared lights from the object being tested and focused to measure.

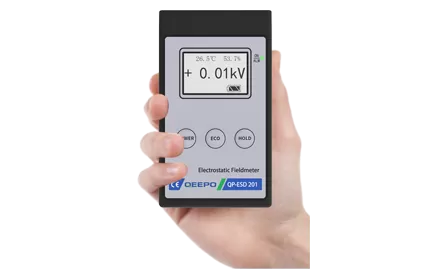

Small size, easy to use, beautiful appearance
Size: 123x70.4x21.5mm
Short press the HOLD key to lock the current displayed value.

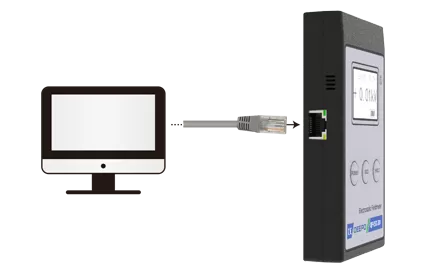

Can be interconnected externally, CAN communication (RS485 communication function optional).

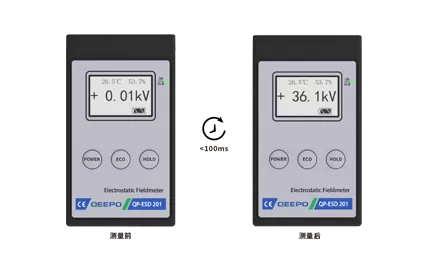

Response time<100ms, accurate measurement, measurement accuracy ± 5%.

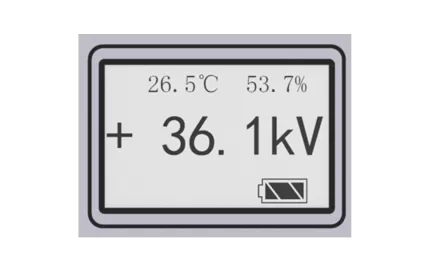

Ultra clear display, with clear visibility of positive or negative polarity and voltage values.
When the measurement range is exceeded, there will be a continuous sound alarm.

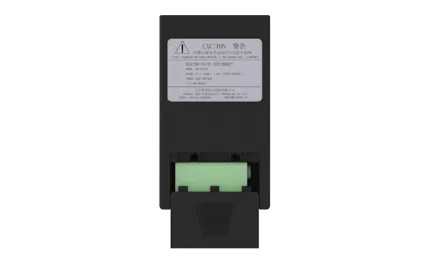

The maximum working time of a single battery is about 14 hours.
| model | QP-ESD201 |
| Detection range | ± 60kV |
| response time | <100ms |
| Measurement accuracy | ±5% |
| Humidity accuracy | ±4.5%RH |
| Stable startup time | 5s |
| Temperature accuracy | ±2℃ |
| Measuring distance | 50mm |
| Vibration frequency | ＜1KHz |
| Communication Distance | ＜500m |
| LCD display | Static electricity value, temperature, humidity, battery |
| communication protocol | Can communication (RS485 communication function optional) |
| Operating environment | 0-50 ℃, 0-60% RH (no freezing, no condensation) |
| Power input | 9V alkaline battery |
| Usage time | The maximum working time is about 14 hours |
| size | 123x70.4x21.5mm |
| weight | About 147g |
| Shell material | Anti static resin (ABS + PC), black |
| Warranty period | One year |
